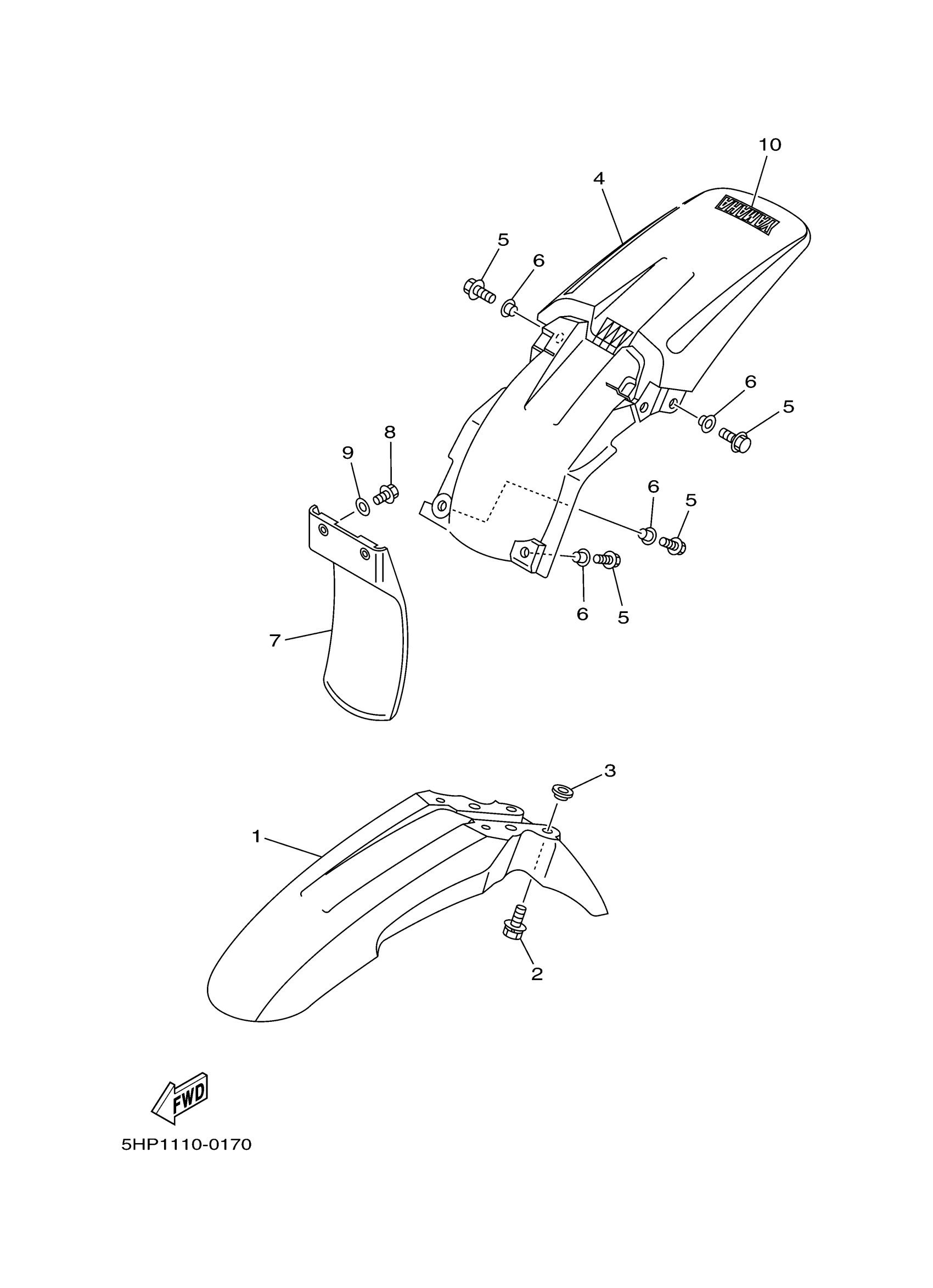

Yamaha TTR125LM (TTR125L) 5HP4 2000 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HP-21511-00-00

$54.63

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

FENDER, REAR

4ES-21611-10-00

$48.47

5

BOLT, FLANGE

95817-06016-00

$1.40

6

COLLAR(3XJ)

90387-064X4-00

$5.03

7

GUARD, FLAP

4ES-21642-01-00

$33.68

8

BOLT, FLANGE

95817-06016-00

$1.40

9

WASHER, PLATE

90201-06020-00

$5.86

10

EMBLEM, YAMAHA

99241-00080-00

$11.11
