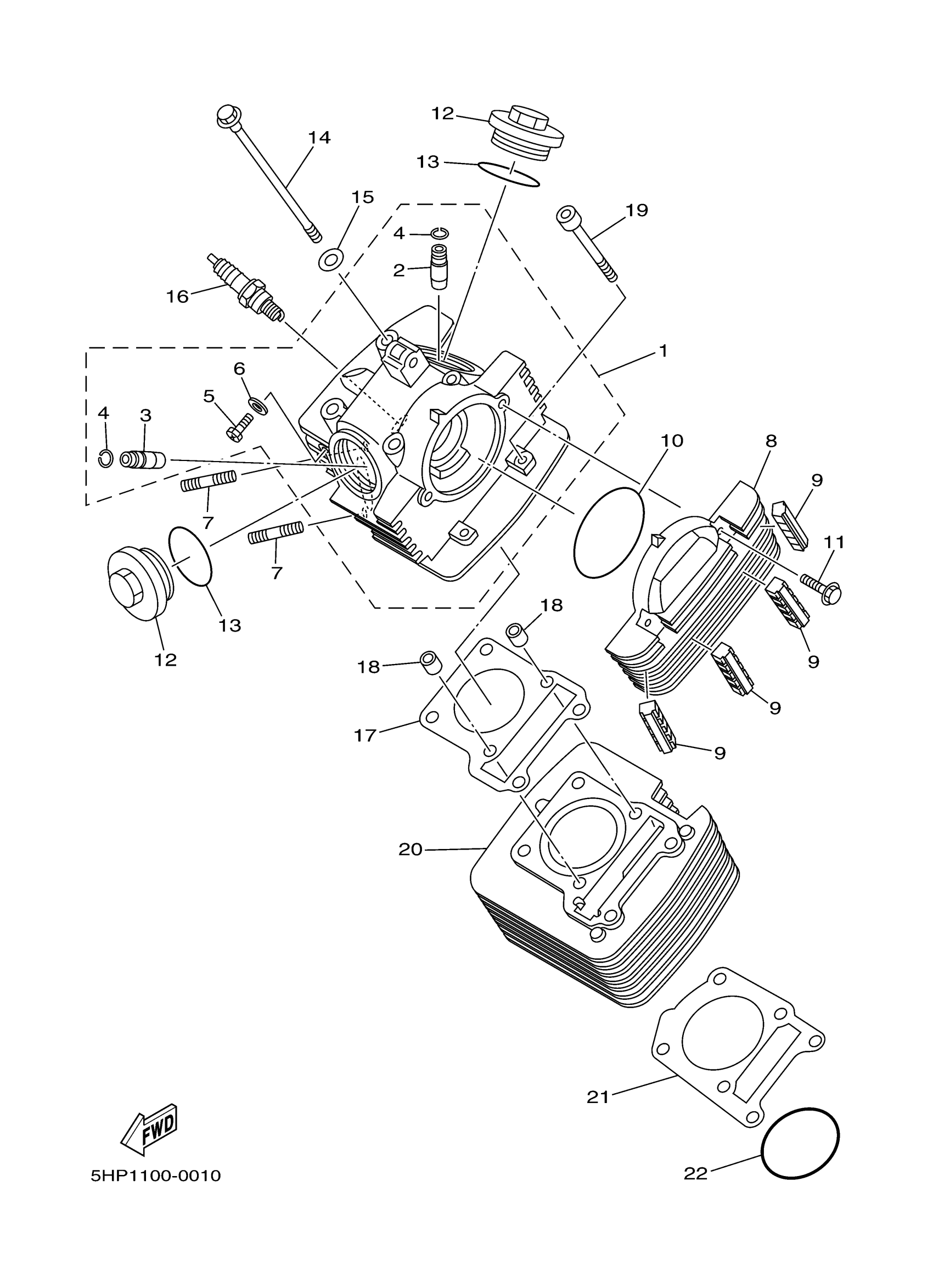

Yamaha TTR125LM (TTR125L) 5HP4 2000 CYLINDER Diagram

HEAD, CYLINDER 1

5HP-11111-00-00

Unavailable

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$51.99

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

CIRCLIP (22F)

93440-10109-00

$8.49

SCREW

90153-06029-00

$10.49

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, STUD(2NL)

90116-06503-00

$8.49

COVER, CYLINDER HEAD SIDE 1

5HH-11185-00-00

Unavailable

ABSORBER 1

5HP-11161-00-00

Unavailable

O-RING (5G2)

93210-71462-00

$16.99

. BOLT, FLANGE

95027-06020-00

Unavailable

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$20.99

O-RING(55X)

93210-44704-00

$7.49

BOLT, WASHER BASED

90105-08724-00

$11.49

WASHER, PLATE

90201-080L7-00

$4.82

PLUG, SPARK (NGK CR7HS)

NGK-CR7HS-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5AP-11181-00-00

Unavailable

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

BOLT, SOCKET

91317-06090-00

Unavailable

CYLINDER

5HH-E1310-10-C0

Unavailable

GASKET, CYLINDER

5HP-11351-00-00

Unavailable

O-RING

93210-57634-00

Unavailable
