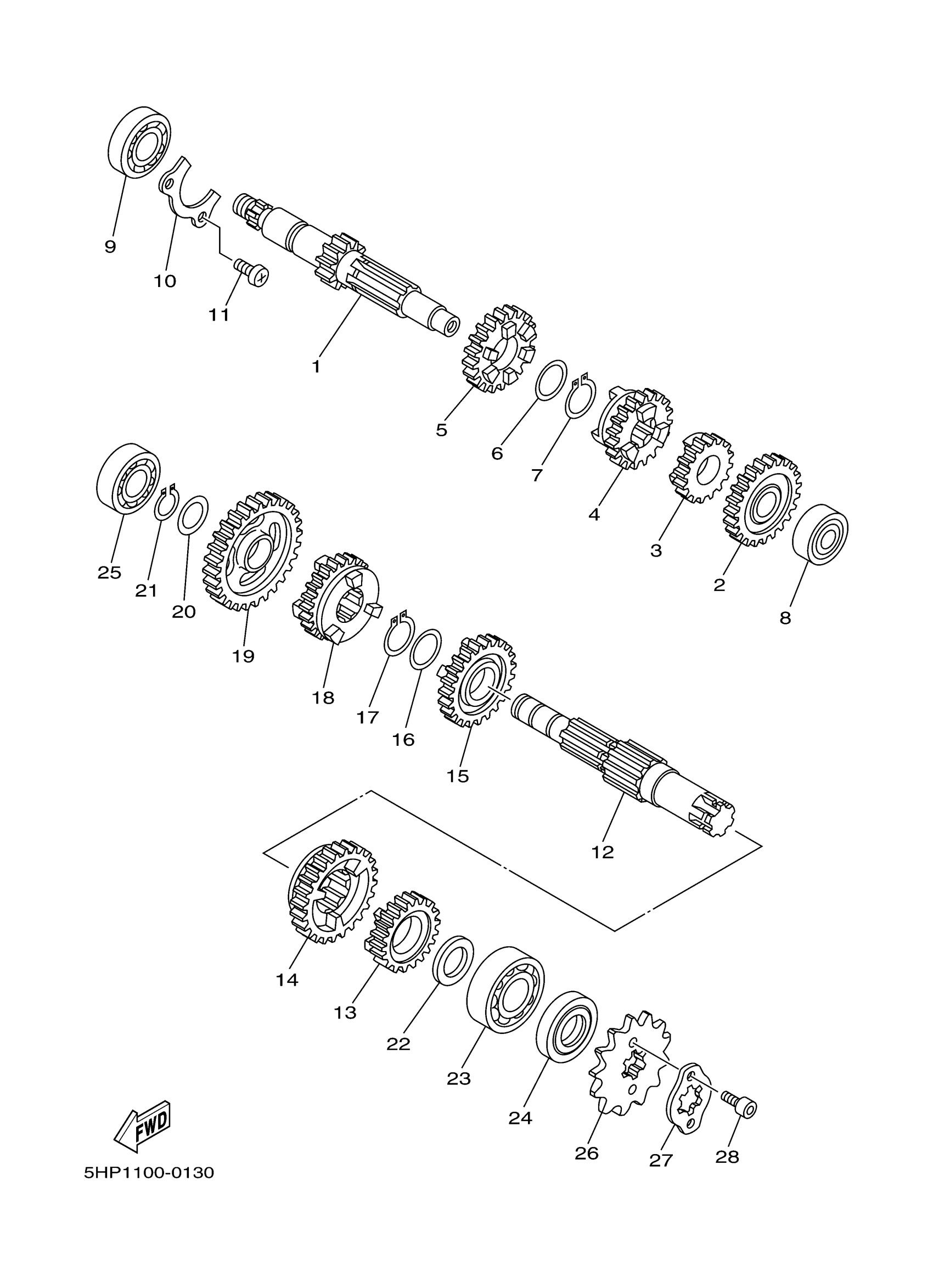

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5HH-E7411-10-00

$168.99

2

GEAR, 5TH PINION

5HH-E7151-20-00

$67.99

3

GEAR,2ND PINION

5HH-E7121-20-00

Unavailable

4

GEAR, 3RD PINION (19T)

5RM-17131-00-00

Unavailable

5

GEAR, 4TH PINION

5HH-E7141-20-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BEARING

93306-201X3-00

$18.99

9

BEARING

93306-203YG-00

$32.99

10

PLATE, CAP

5HH-E7471-00-00

$2.17

11

SCREW, PAN HEAD

9851M-06014-00

Unavailable

12

DRIVE AXLE ASSY

5AP-17402-00-00

$165.99

13

GEAR, 5TH WHEEL

5HH-17251-01-00

$115.99

14

GEAR, 2ND WHEEL (32T)

5RM-17221-00-00

$71.99

15

GEAR, 3RD WHEEL

5HH-E7231-00-00

$182.99

16

WASHER PLATE 132172160000

90201-20266-00

$9.49

17

CIRCLIP (525)

93410-20038-00

$3.76

18

GEAR, 4TH WHEEL

5AP-17241-00-00

Unavailable

19

GEAR, 1ST WHEEL

5AP-17211-00-00

Unavailable

20

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

21

CIRCLIP(1AR)

99009-15400-00

Unavailable

22

WASHER PLATE 820473590000

90201-20272-00

Unavailable

23

BEARING

93306-204X8-00

Unavailable

24

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

25

BEARING

93306-202Y8-00

Unavailable

26

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

27

HOLDER, SPROCKET

1B2-E7456-00-00

Unavailable

28

BOLT

9131M-05010-00

Unavailable
