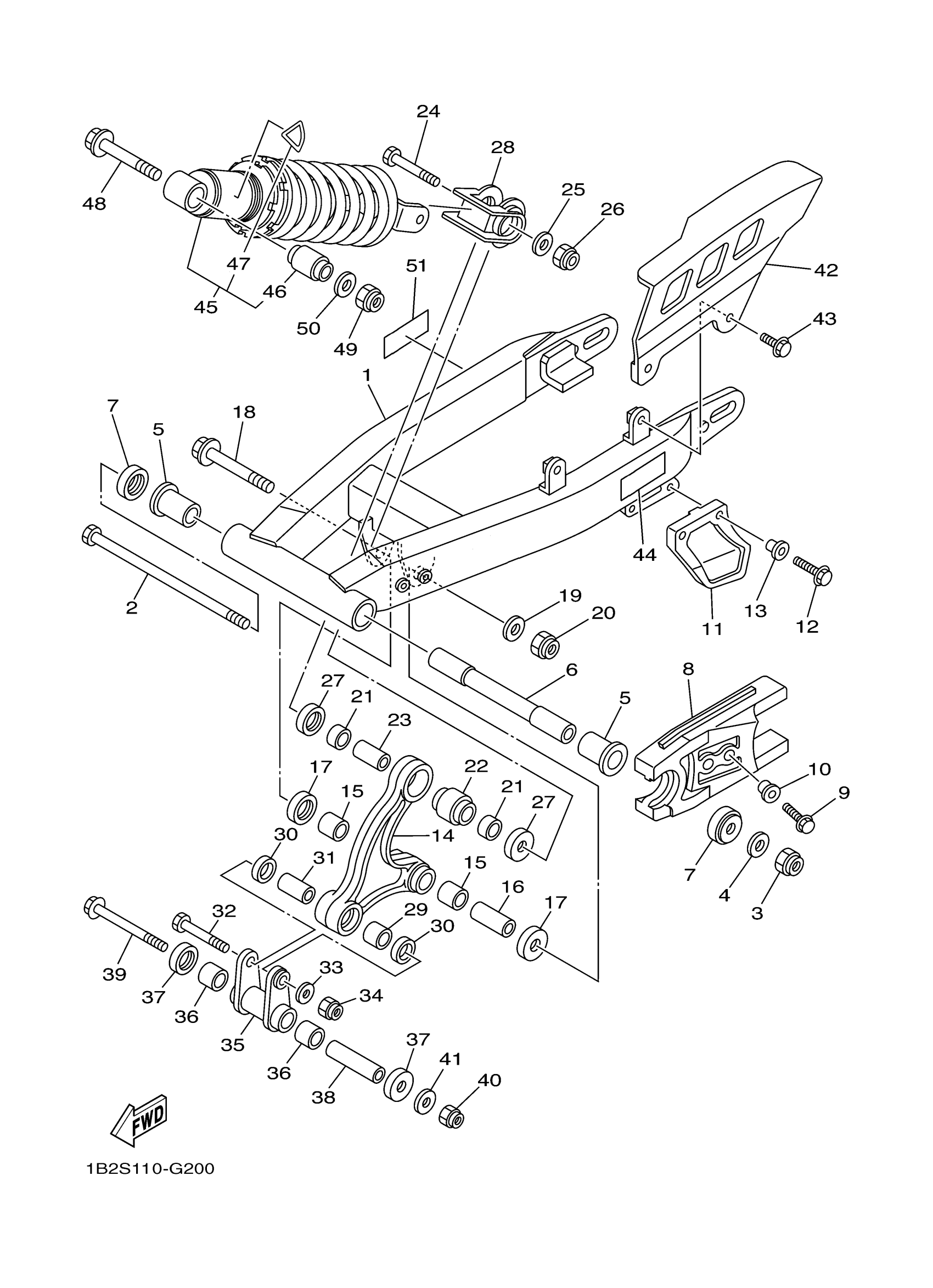

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 REAR ARM SUSPENSION EX 1B2S Diagram

#

Description
Price

1

REAR ARM COMP.

1B2-F2110-00-35

Unavailable

2

SHAFT, PIVOT

1B2-F2141-00-00

Unavailable

3

NUT, U (4PM)

95617-12100-00

$4.16

4

WASHER, PLATE (25H)

90201-124G9-00

$7.49

5

BUSH

90386-18099-00

Unavailable

6

BUSHING (401-22124-00)

90389-12002-00

Unavailable

7

COVER, THRUST 1

401-22128-01-00

$29.99

8

SEAL, GUARD

1B2-F2151-00-00

$42.99

9

BOLT, FLANGE

95817-06020-00

$3.81

10

C0LLAR (3JB1)

90387-062X0-00

$20.99

11

BRAKET, CHAIN

5RM-F2199-00-00

$7.49

12

BOLT, FLANGE

95817-06016-00

$2.75

13

COLLAR (3L6)

90387-06737-00

$9.49

14

ARM, RELAY

1B2-F217A-00-00

Unavailable

15

BUSH, BIMETAL FORMED(39K)

90384-18190-00

Unavailable

16

BUSHING, REAR ARM INNER

2J5-22124-00-00

Unavailable

17

COVER, THRUST 2

1B2-F2129-00-00

Unavailable

18

BOLT, WASHER BASED(3XV)

90105-12660-00

Unavailable

19

WASHER, PLATE (25H)

90201-124G9-00

$7.49

20

NUT, U (4PM)

95617-12100-00

$4.16

21

BUSH, SOLID (22W)

90380-16109-00

Unavailable

22

BUSH 2

22W-22124-00-00

Unavailable

23

COLLAR (22W)

90387-106G0-00

Unavailable

24

BOLT (22W)

90109-10689-00

Unavailable

25

WASHER (7A9)

90201-100F7-00

Unavailable

26

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

27

COVER, THRUST 2

22W-22129-00-00

Unavailable

28

BOOT, RUBBER

4AN-F2189-00-00

Unavailable

29

BUSH, FORMED (22W)

90383-16023-00

Unavailable

30

OIL SEAL

93109-16800-00

Unavailable

31

COLLAR (22W)

90387-106G0-00

Unavailable

32

BOLT (22W)

90109-10689-00

Unavailable

33

WASHER (7A9)

90201-100F7-00

Unavailable

34

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

35

ROD, CONNECTING 1

1B2-F217F-00-35

Unavailable

36

BUSH, FORMED (22W)

90383-16023-00

Unavailable

37

COVER, THRUST 2

22W-22129-00-00

Unavailable

38

COLLAR (22W)

90387-105G9-00

Unavailable

39

BOLT, WASHER BASED(59V)

90105-10392-00

Unavailable

40

NUT, SELF LOCKING (23X)

90185-10120-00

Unavailable

41

WASHER (7A9)

90201-100F7-00

Unavailable

42

CASE, CHAIN

1B2-F2311-00-00

Unavailable

43

BOLT, WITH WASHER (25K)

90119-06079-00

Unavailable

44

LABEL, TIRE

3RV-21668-A1-00

Unavailable

45

SHOCK ABSORBER ASSY, REAR

5HP-22210-90-00

Unavailable

46

BUSH, REAR SHOCK ABSORBER

2YK-22216-00-00

Unavailable

47

LABEL, WARNING

4AA-22259-80-00

Unavailable

48

BOLT, FLANGE

90105-12030-00

Unavailable

49

NUT, U (4PM)

95617-12100-00

$4.16

50

WASHER, PLATE (25H)

90201-124G9-00

$7.49

51

PLATE, EPA

1B2-2179C-20-00

Unavailable
