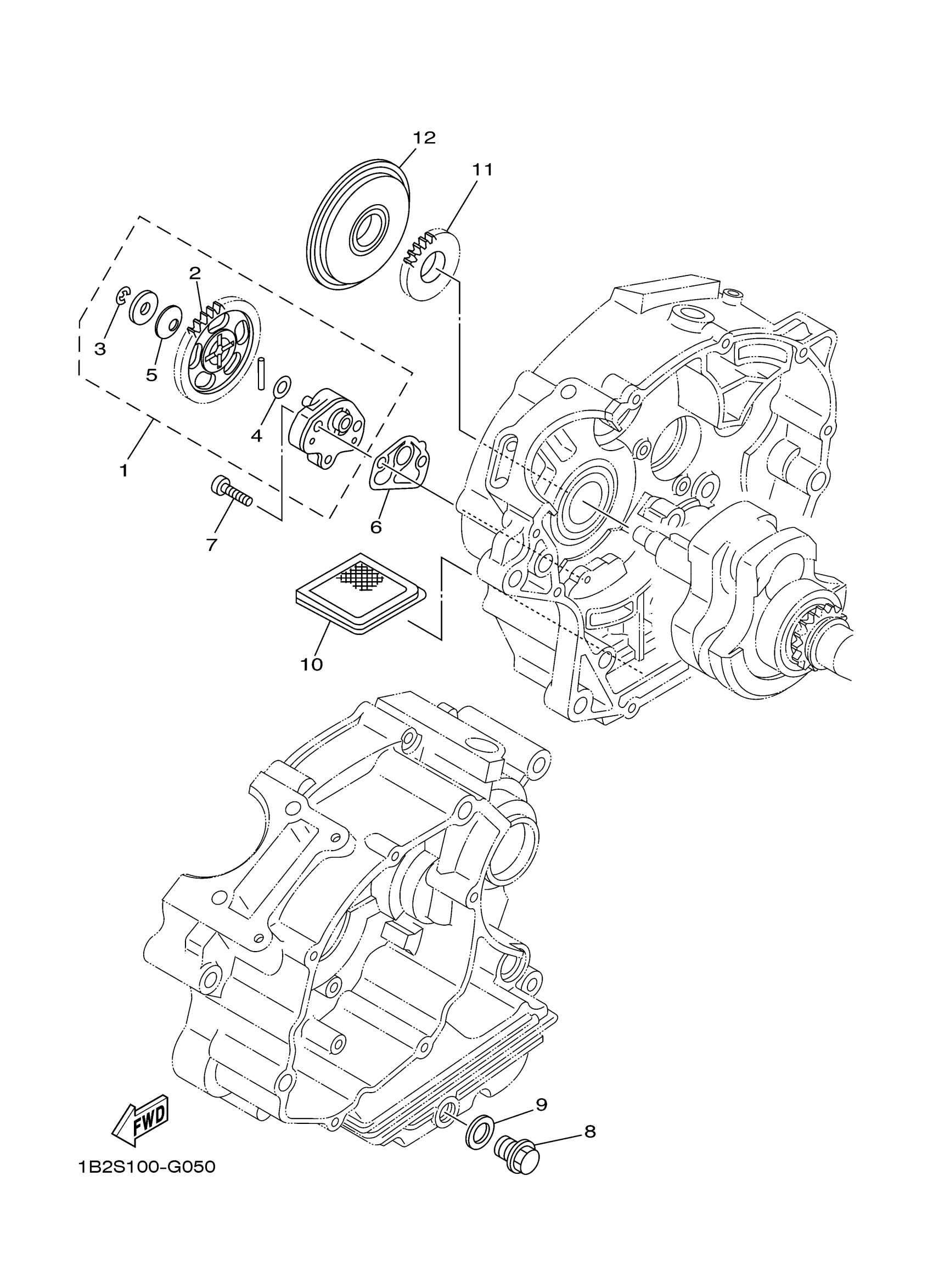

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5VL-E3300-01-00

$159.82

2

GEAR, PUMP DRIVEN

5VL-E3325-00-00

$7.43

3

CIRCLIP(22K)

99080-05600-00

$5.75

4

WASHER, PLATE(8E7)

90201-07641-00

$3.11

5

WASHER, CONICAL SPRING(4GL)

90208-07052-00

$2.55

6

GASKET, PUMP COVER

5HH-E3329-00-00

$0.36

7

SCREW, FLAT FILLISTER

90155-06002-00

$0.57

8

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.63

9

GASKET (3JD1)

90430-12207-00

$6.32

10

STRAINER, OIL

22F-13411-01-00

$23.12

11

GEAR, PUMP DRIVE

1B2-E3324-00-00

$21.25

12

FILTER,ROTARY

5VL-E3451-00-00

$16.03
