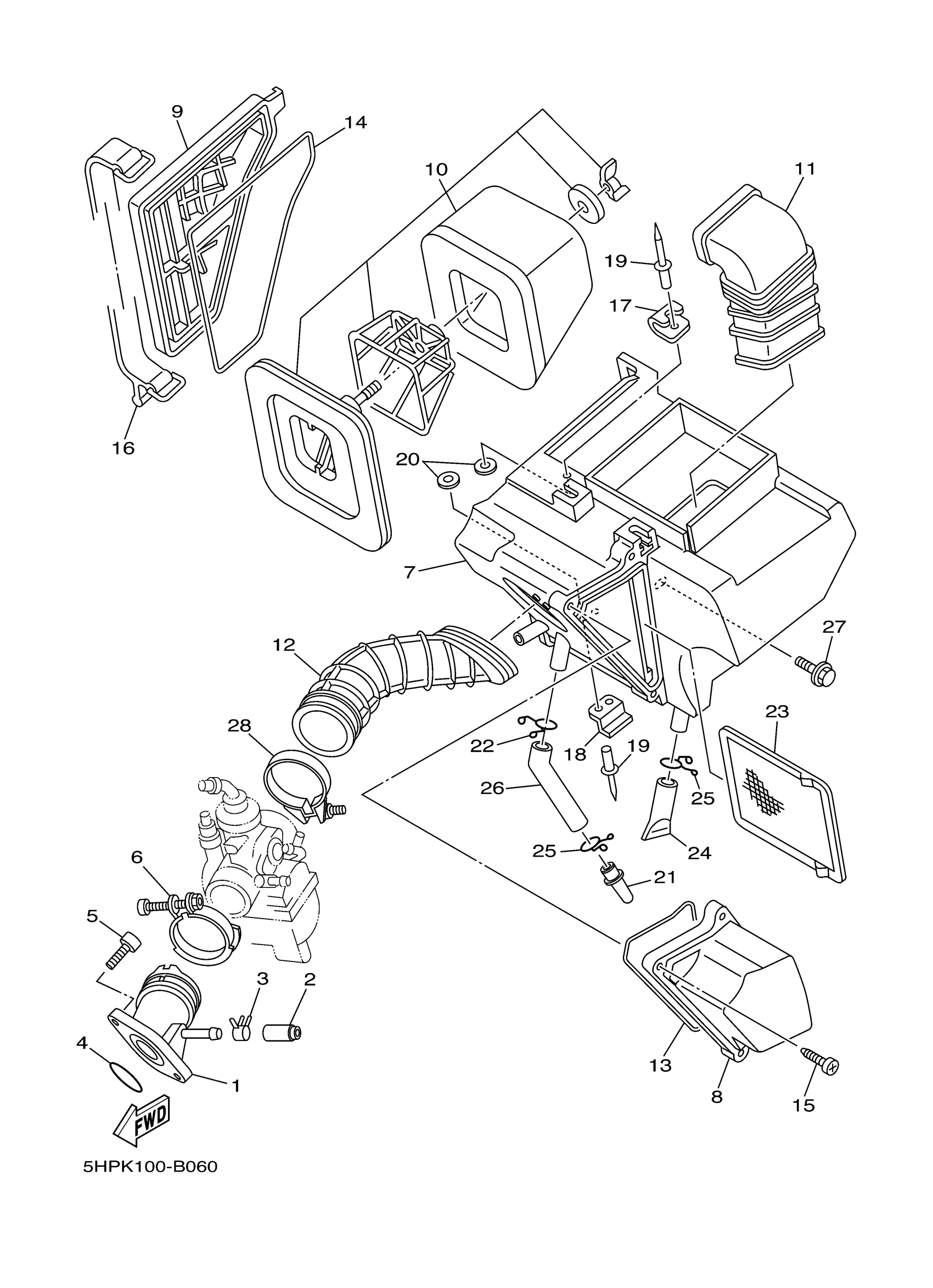

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5HP-13586-00-00

$84.99

2

PLUG, BLIND

16G-13569-00-00

$7.99

3

CLIP (3G0)

90467-10039-00

$9.49

4

O-RING (30X)

93210-30611-00

$13.49

5

BOLT,SOCKET HEAD

91314-06020-00

$1.49

6

HOSE CLAMP ASSY(1MX)

90450-44046-00

$16.99

7

CASE, AIR CLEANER 1

1B2-E4411-00-00

$38.99

8

CAP, CLEANER CASE 1

1B2-E4412-20-00

Unavailable

9

CAP, CLEANER CASE 2

1B2-E4422-00-00

$9.49

10

ELEMENT ASSY, AIR CLEANER

5HP-14450-00-00

$24.99

11

DUCT

1B2-E4437-00-00

$13.49

12

JOINT, AIR CLEANER 1

1B2-E4453-00-00

$14.99

13

SEAL

1B2-E4452-00-00

$2.17

14

SEAL

1B2-E4452-10-00

$2.17

15

SCREW, PAN TAP.2 SLIT

97707-50620-00

$8.49

16

BAND

1B2-F811G-00-00

Unavailable

17

PLATE, CLEANER CASE FITTING

1B2-E4484-00-00

Unavailable

18

HOOK

1B2-E4436-00-00

Unavailable

19

RIVET, BLIND

90267-40029-00

Unavailable

20

WASHER

9290M-04200-00

Unavailable

21

PIPE, DRAIN

1B2-E443E-00-00

Unavailable

22

CLIP (806-24358-00)

90467-15012-00

Unavailable

23

PLATE, ELEMENT

1B2-E4472-00-00

Unavailable

24

PIPE, DRAIN

1B2-E443E-10-00

Unavailable

25

CLIP (371)

90467-14015-00

Unavailable

26

PIPE, DRAIN 2

1B2-E443G-10-00

Unavailable

27

BOLT, WITH WASHER

90119-06242-00

Unavailable

28

HOSE CLAMP ASSY

90450-47002-00

Unavailable
