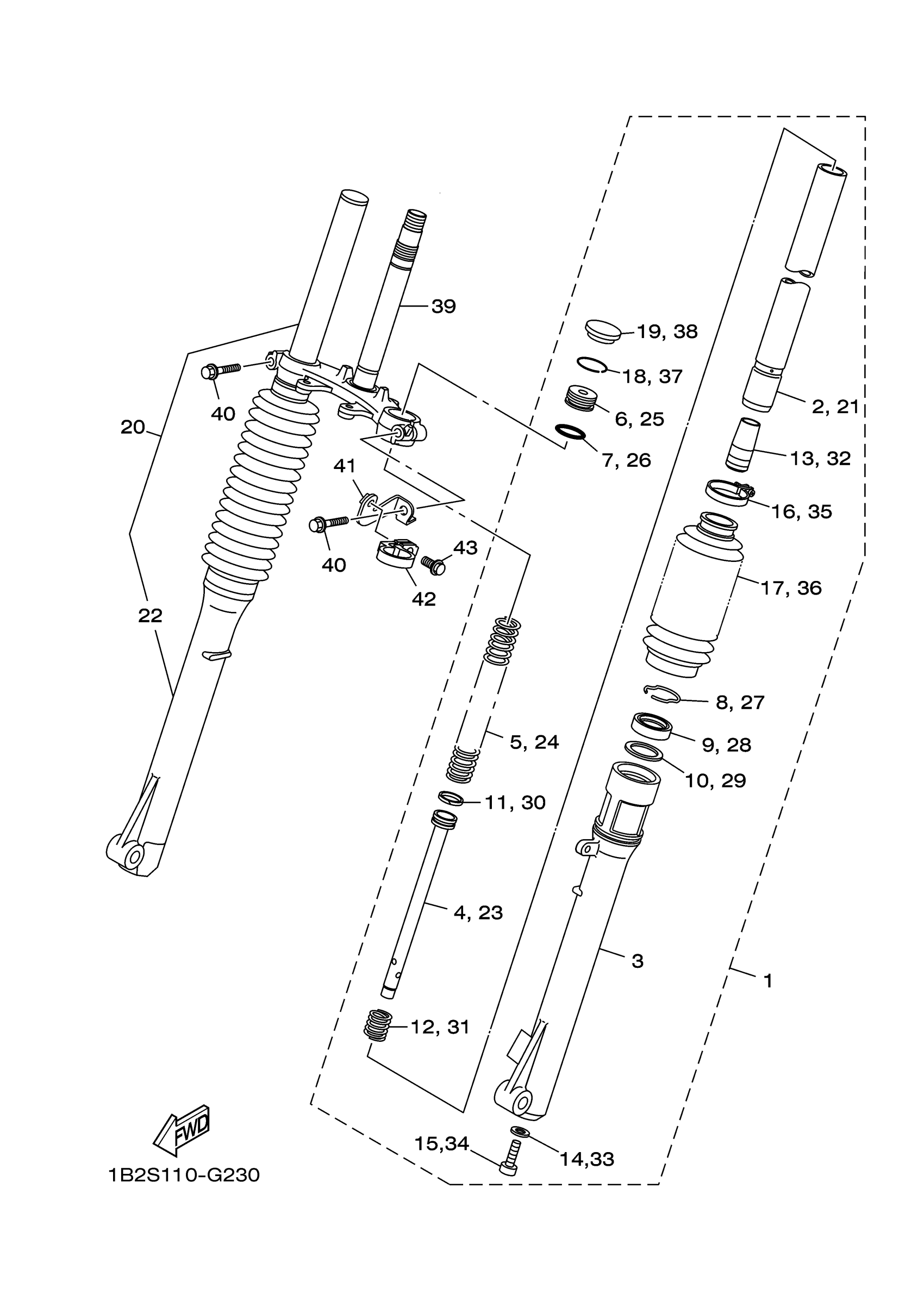

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 FRONT FORK EX 1B2S Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

1B2-F3102-00-00

Unavailable

2

INNER TUBE COMP.1

1B2-F3110-00-00

Unavailable

3

TUBE, OUTER 1

1B2-F3126-00-00

Unavailable

4

. PISTON, FRONT FORK

1B2-F3171-00-00

Unavailable

5

SPRING, FRONT FORK

1B2-F3351-00-00

Unavailable

6

. BOLT, CAP

1L9-F3111-00-00

Unavailable

7

O-RING

1L9-23114-00-00

$7.99

8

CLIP, OIL SEAL

2A6-F3156-00-00

$3.23

9

OIL SEAL

5B6-23145-00-00

$24.99

10

WASHER, OIL SEAL

5B6-23146-00-00

$11.99

11

. RING, PISTON

1E7-F3157-00-00

Unavailable

12

SPRING, REBOUND

1B2-F3151-00-00

$5.60

13

. SPACER, OIL LOCK

1B2-F3166-00-00

Unavailable

14

GASKET, DRAIN PLUG

3MA-F3129-00-00

$3.23

15

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$9.49

16

BAND

1B2-23192-00-00

Unavailable

17

BOOT

1B2-23191-00-00

Unavailable

18

RING, STOPPER

1L9-23183-00-00

Unavailable

19

CAP, FRONT FORK

3V2-23154-00-00

Unavailable

20

FRONT FORK ASSY R.H

1B2-F3103-01-00

Unavailable

21

INNER TUBE COMP.1

1B2-F3110-00-00

Unavailable

22

TUBE, OUTER 2

1B2-F3136-00-00

Unavailable

23

. PISTON, FRONT FORK

1B2-F3171-00-00

Unavailable

24

SPRING, FRONT FORK

1B2-F3351-00-00

Unavailable

25

. BOLT, CAP

1L9-F3111-00-00

Unavailable

26

O-RING

1L9-23114-00-00

$7.99

27

CLIP, OIL SEAL

2A6-F3156-00-00

$3.23

28

OIL SEAL

5B6-23145-00-00

$24.99

29

WASHER, OIL SEAL

5B6-23146-00-00

$11.99

30

. RING, PISTON

1E7-F3157-00-00

Unavailable

31

SPRING, REBOUND

1B2-F3151-00-00

$5.60

32

. SPACER, OIL LOCK

1B2-F3166-00-00

Unavailable

33

GASKET, DRAIN PLUG

3MA-F3129-00-00

$3.23

34

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$9.49

35

BAND

1B2-23192-00-00

Unavailable

36

BOOT

1B2-23191-00-00

Unavailable

37

RING, STOPPER

1L9-23183-00-00

Unavailable

38

CAP, FRONT FORK

3V2-23154-00-00

Unavailable

39

UNDER BRACKET COMP.

1B2-F3340-00-35

Unavailable

40

BOLT, FLANGE

90105-10304-00

Unavailable

41

BRACKET 1

1B2-F334G-00-00

Unavailable

42

GUIDE, CABLE

1C6-F3389-00-00

Unavailable

43

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable
