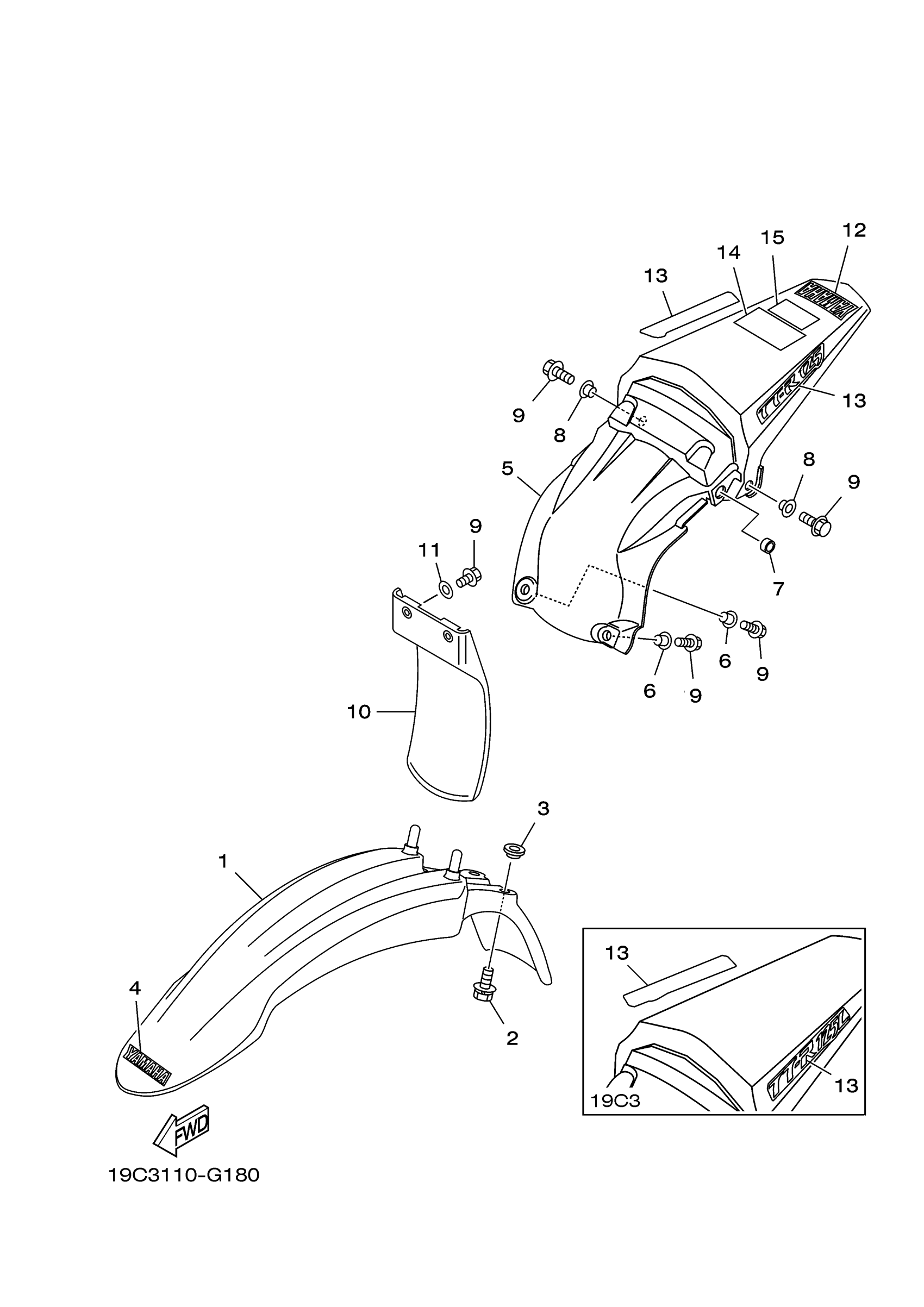

Yamaha TTR125LEX (TTR125LE) 1B2S 2008 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY DPBSE

1B2-F1511-10-00

$37.29

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

EMBLEM, YAMAHA

1B2-F153E-10-00

$6.80

5

REAR FENDER ASSY

1B2-F1611-20-00

$74.83

6

COLLAR(3XJ)

90387-064X4-00

$5.03

7

COLLAR

90387-1001B-00

$2.97

8

COLLAR

90387-07023-00

$4.08

9

BOLT, FLANGE

95817-06016-00

$1.40

10

GUARD, FLAP

4ES-21642-01-00

$33.68

11

WASHER, PLATE

90201-06020-00

$5.86

12

EMBLEM, YAMAHA

1B2-F153E-10-00

$6.80

13

EMBLEM 1

1B2-F163G-40-00

Unavailable

13

EMBLEM 1

1B2-F163G-50-00

Unavailable

14

LABEL, CAUTION

3PT-2118K-A2-00

$4.40

15

LABEL 5

3XJ-2151H-A1-00

Unavailable
