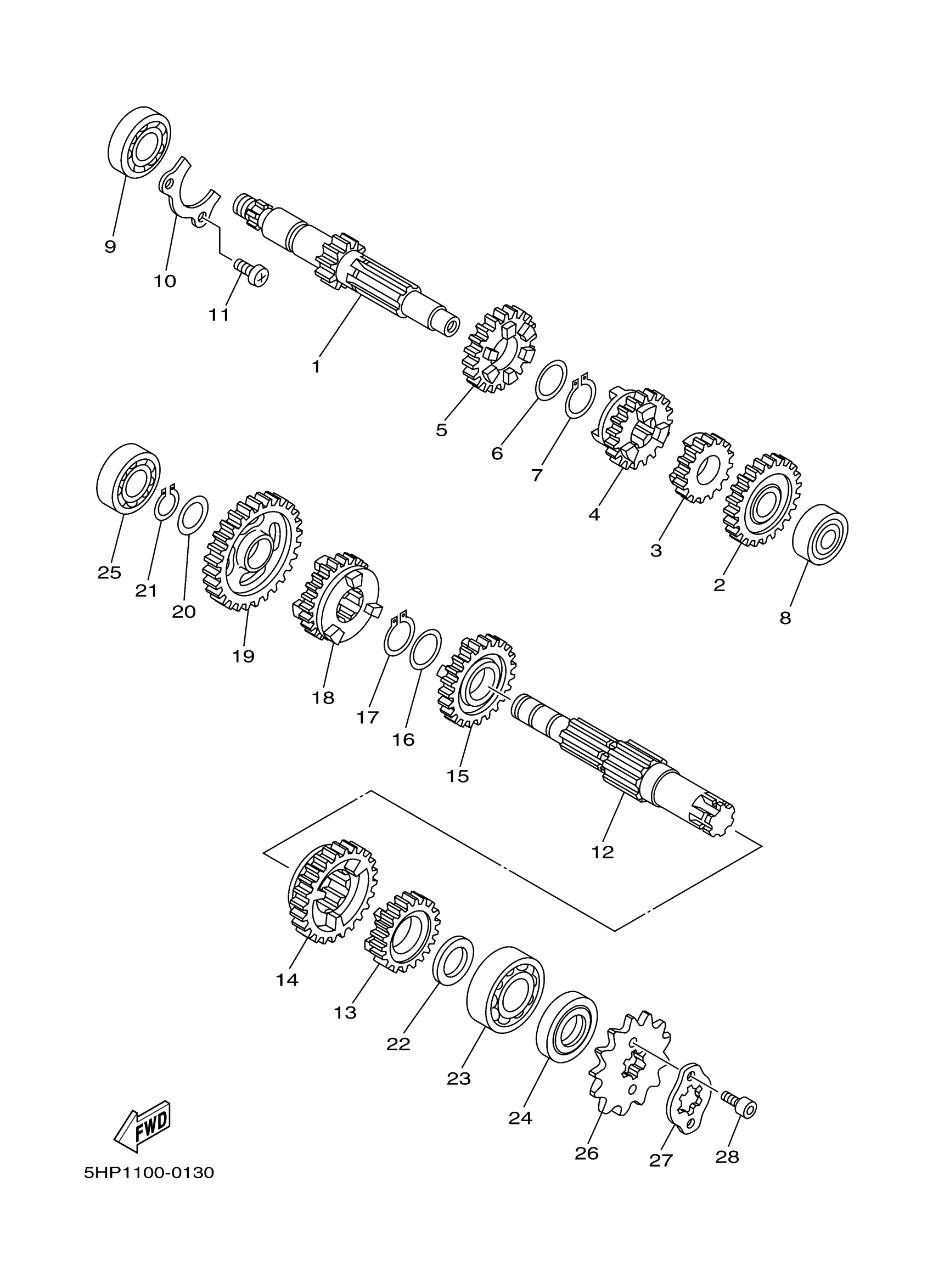

Yamaha TTR125LEW (TT-R125LE) 1B2P 2007 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5AP-17411-00-00

$181.99

2

GEAR, 5TH PINION (24T)

5AP-17151-00-00

Unavailable

3

GEAR, 2ND PINION (18T)

5AP-17121-00-00

Unavailable

4

GEAR, 3RD PINION (19T)

5RM-17131-00-00

Unavailable

5

GEAR, 4TH PINION (22T)

5RM-17141-00-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BEARING

93306-20121-00

$36.99

9

BEARING

93306-203YG-00

$32.99

10

PLATE, CAP

5HH-E7471-00-00

$2.17

11

SCREW, PAN HEAD

9851M-06014-00

Unavailable

12

DRIVE AXLE ASSY

5AP-17402-00-00

$165.99

13

GEAR, 5TH WHEEL (21T)

5AP-17251-00-00

Unavailable

14

GEAR, 2ND WHEEL (32T)

5RM-17221-00-00

$71.99

15

GEAR, 3RD WHEEL (25T)

5AP-17231-00-00

Unavailable

16

WASHER PLATE 132172160000

90201-20266-00

$9.49

17

CIRCLIP (525)

93410-20038-00

$3.76

18

GEAR, 4TH WHEEL

5AP-17241-00-00

Unavailable

19

GEAR, 1ST WHEEL

5AP-17211-00-00

Unavailable

20

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

21

CIRCLIP(1AR)

99009-15400-00

Unavailable

22

WASHER PLATE 820473590000

90201-20272-00

Unavailable

23

BEARING

93306-204X8-00

Unavailable

24

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

25

BEARING(1HX)

93306-20218-00

Unavailable

26

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

27

HOLDER, SPROCKET

1B2-E7456-00-00

Unavailable

28

BOLT

9131M-05010-00

Unavailable
