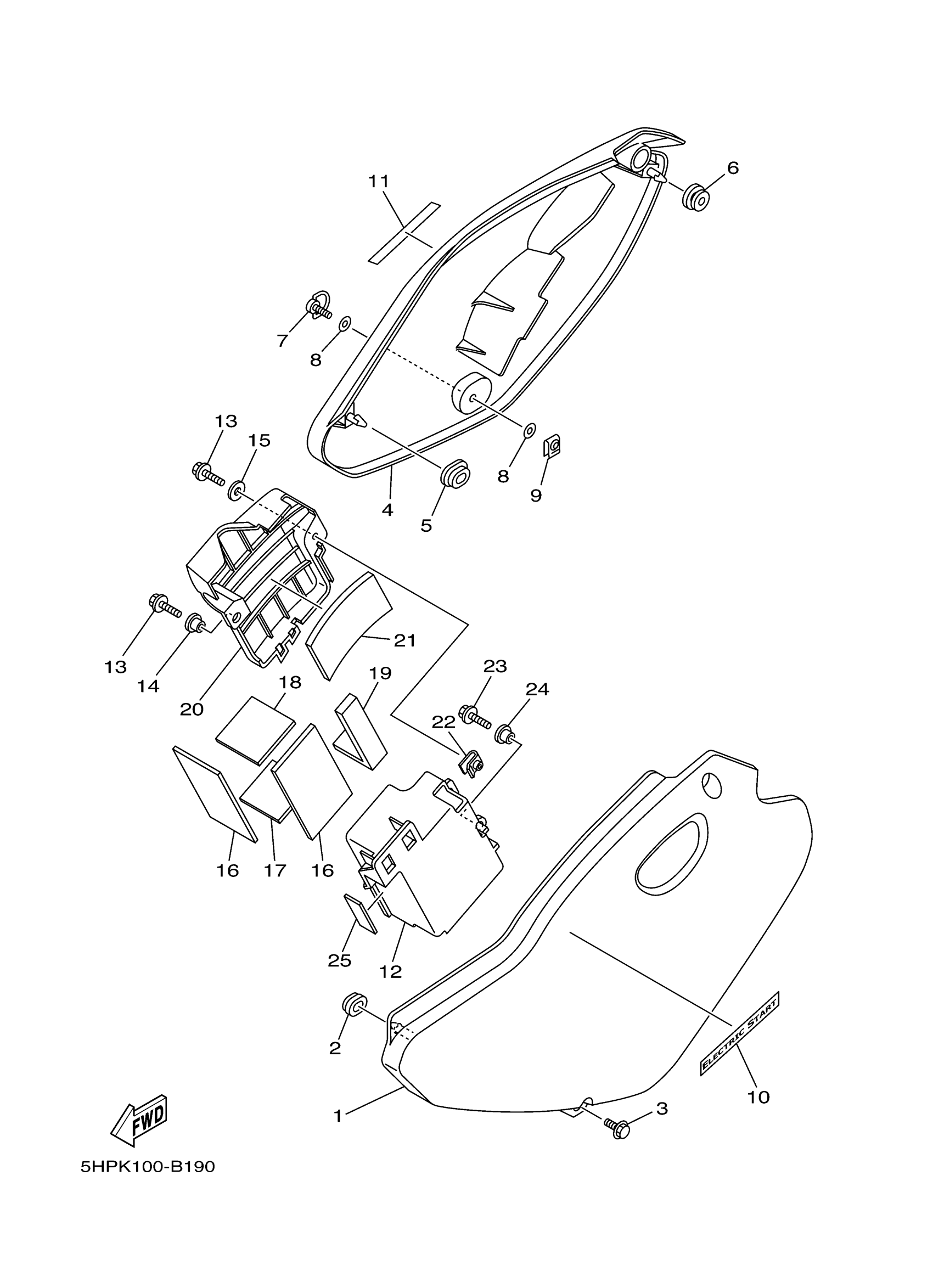

Yamaha TTR125LEW (TT-R125LE) 1B2P 2007 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5HP-21711-00-00

$59.99

2

GROMMET(4DN)

90480-01558-00

$4.19

3

BOLT, HEXA W/W

90119-06018-00

$8.49

4

COVER, SIDE 2

5HP-21721-10-00

$42.99

5

GROMMET(4DN)

90480-01558-00

$4.19

6

GROMMET

90480-13014-00

$8.49

7

HEAD

3FV-28386-00-00

$40.99

8

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

9

PLATE, SPRING

4XV-2177L-01-00

$6.99

10

EMBLEM

1B2-F1737-00-00

Unavailable

11

EMBLEM

1B2-F1737-00-00

Unavailable

12

BOX, BATTERY

1B2-F177G-00-00

$30.99

13

BOLT, FLANGE

95817-06020-00

$3.81

14

COLLAR (3L6)

90387-06737-00

$9.49

15

WASHER, PLATE

90201-06020-00

$9.49

16

DAMPER

1B2-F174X-00-00

Unavailable

17

DAMPER

1B2-F1746-00-00

Unavailable

18

DAMPER

1B2-F174Y-00-00

Unavailable

19

DAMPER

1B2-F1747-00-00

Unavailable

20

COVER, BATTERY

5HP-82129-01-00

Unavailable

21

PAD, BATTERY

1B2-H2121-00-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

COLLAR(50M)

90387-087L0-00

Unavailable

25

DAMPER 2

1B2-F1639-01-00

Unavailable
