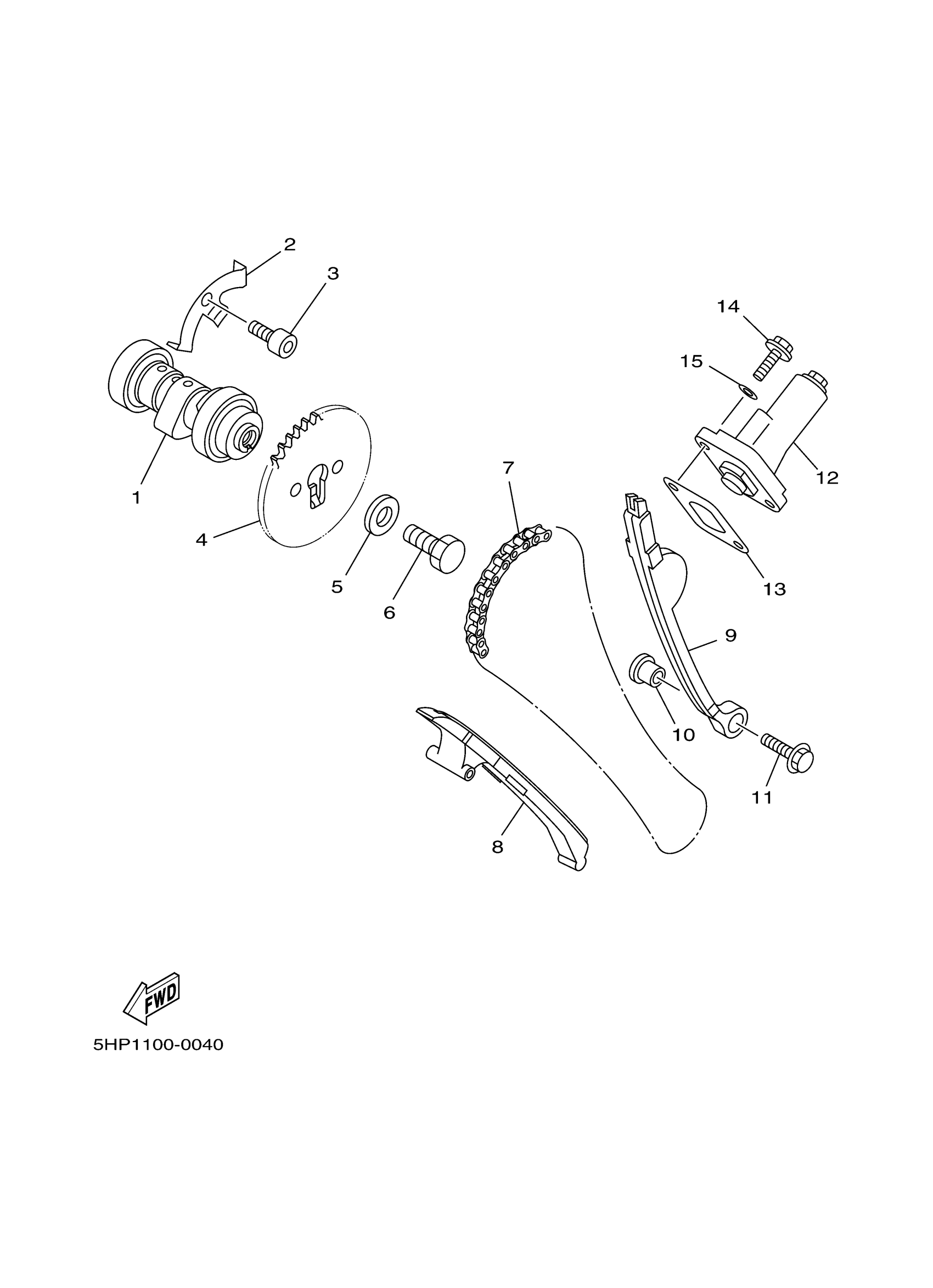

Yamaha TTR125LEW (TT-R125LE) 1B2P 2007 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HP-12170-00-00

Unavailable

2

PLATE

5HH-E111F-00-00

$1.68

3

BOLT M6

9131M-06012-00

$0.76

4

SPROCKET, CAM CHAIN

5HH-E2176-00-00

Unavailable

5

WASHER (853)

90201-08326-00

$5.75

6

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

7

CHAIN

94581-94088-00

$34.57

8

GUIDE, STOPPER 1

5AP-12231-00-00

Unavailable

9

GUIDE, STOPPER 2

5HH-E2241-00-00

Unavailable

10

COLLAR

5HH-E5598-00-00

$2.37

11

BOLT, FLANGE

95817-06020-00

$2.52

12

TENSIONER ASSY, CAM CHAIN

5KR-12210-00-00

$68.90

13

GASKET, TENSIONER CASE 1

5HH-E2213-00-00

$1.46

14

BOLT, FLANGE

95817-06016-00

$1.40

15

GASKET 256113960000

90430-06014-00

Unavailable
