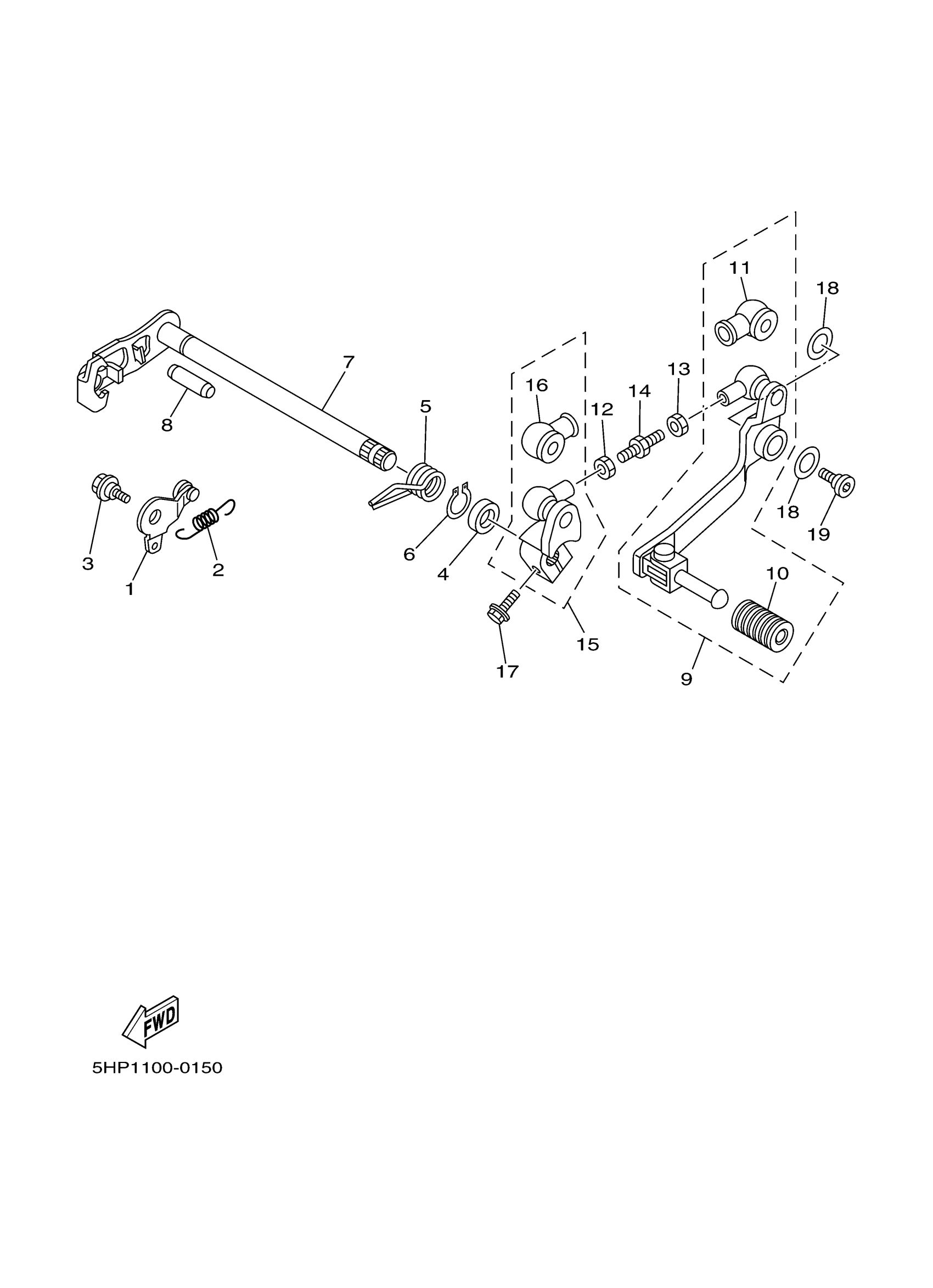

Yamaha TTR125LEV (TT-R125LE ELECTRIC) 1B2F 2006 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER LEVER ASSY

5HH-E8140-00-00

$10.49

2

SPRG.

5HH-E8337-00-00

$2.13

3

BOLT

90109-06190-00

$4.72

4

OIL SEAL

93101-12173-00

$13.49

5

SPRING, TORSION(17W)

90508-32642-00

$9.49

6

CIRCLIP

99006-10600-00

$9.49

7

SHIFT SHAFT ASSY

5AP-18101-01-00

$51.99

8

PIN,DOWEL

93608-30839-00

$7.49

9

SHIFT PEDAL ASSY

1B2-E8110-01-00

Unavailable

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

COVER, DUST

2H9-18154-00-00

$5.49

12

NUT, HEX.,

9530L-06700-00

Unavailable

13

NUT (2H9)

90170-06228-00

$9.49

14

ROD, SHIFT

1B2-E8115-00-00

$2.17

15

ARM, SHIFT

1B2-E8112-01-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.49

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

19

BOLT SPECIAL SHAPE M6

90109-06815-00

Unavailable
