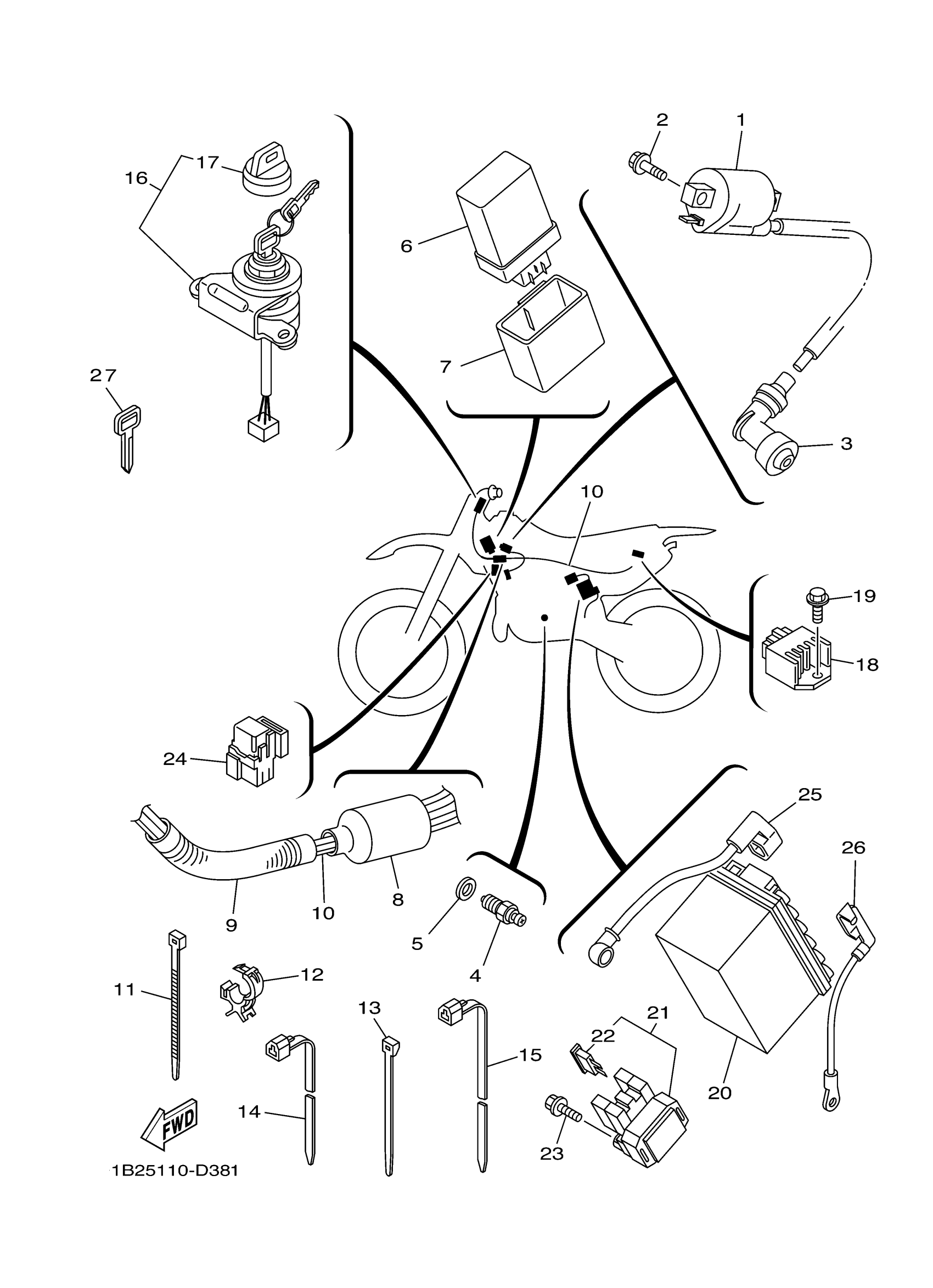

Yamaha TTR125LEV (TT-R125LE ELECTRIC) 1B2F 2006 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

2

BOLT, FLANGE

95817-06016-00

$2.75

3

PLUG CAP ASSY

4BP-82370-01-00

$35.99

4

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

C.D.I. UNIT ASSY

5HP-85540-01-00

Unavailable

7

BAND

1B2-H5546-00-00

$5.49

8

COVER, CONNECTER

1B2-H2599-00-00

Unavailable

9

HOSE, WITH SPRING

90447-19004-00

$7.99

10

WIRE HARNESS ASSY

1B2-H2590-10-00

Unavailable

11

CLAMP(MF1)

90464-15152-00

$5.60

12

CLAMP(4HM)

90464-15192-00

$8.49

13

BAND

1UA-82591-00-00

$4.78

14

CLAMP

90464-13077-00

$8.49

15

CLAMP(4FM)

90464-15195-00

$4.41

16

MAIN SWITCH ASSY

5HP-82510-01-00

Unavailable

17

CAP, KEY

3HN-82579-00-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

Unavailable

19

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

20

BATTERY ASSY (GT4L-BS)

GTX-4LBS0-00-00

Unavailable

21

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

22

FUSE (10A)

42X-82151-00-00

Unavailable

23

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

24

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

25

WIRE, PLUS LEAD

1B2-H2115-00-00

Unavailable

26

WIRE, MINUS LEAD

1B2-H2116-00-00

Unavailable

27

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

27

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
