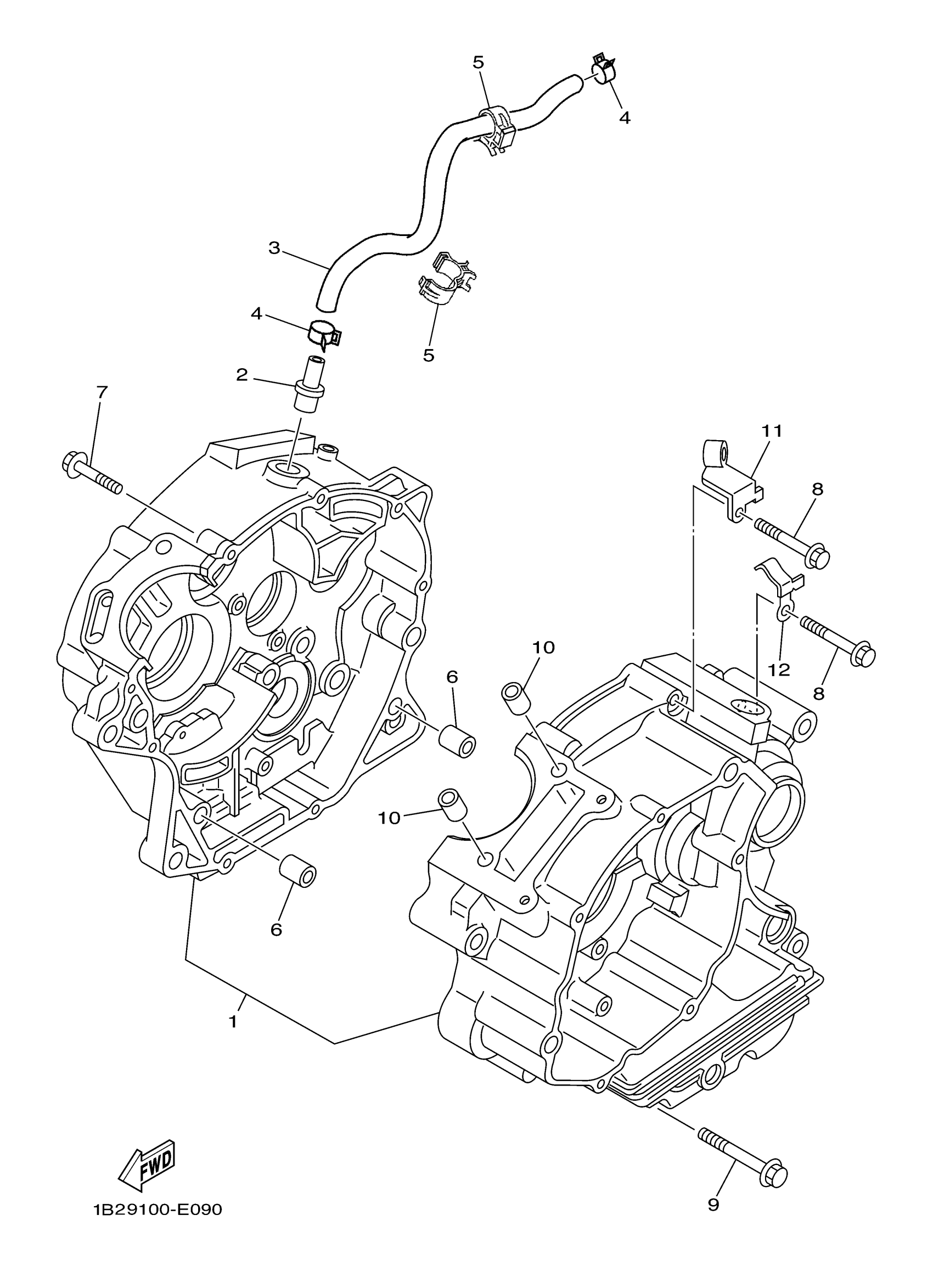

Yamaha TTR125LEV (TT-R125LE ELECTRIC) 1B2F 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HH-E5150-30-00

Unavailable

2

PIPE, BREATHER 2

5HH-E1167-00-00

$4.42

3

PIPE, BREATHER 1

1B2-E1166-20-00

$8.14

4

CLIP

90467-13800-00

Unavailable

5

CLAMP(4HM)

90464-15192-00

$5.75

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

BOLT, SMALL FLANGE

95027-06030-00

$3.40

8

BOLT, SMALL FLANGE

95027-06045-00

$2.31

9

BOLT, FLANGE

95817-06055-00

$1.87

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

HOLDER, CLUTCH CABLE

1B2-E5441-00-00

$3.12

12

CLAMP

90462-08005-00

Unavailable
