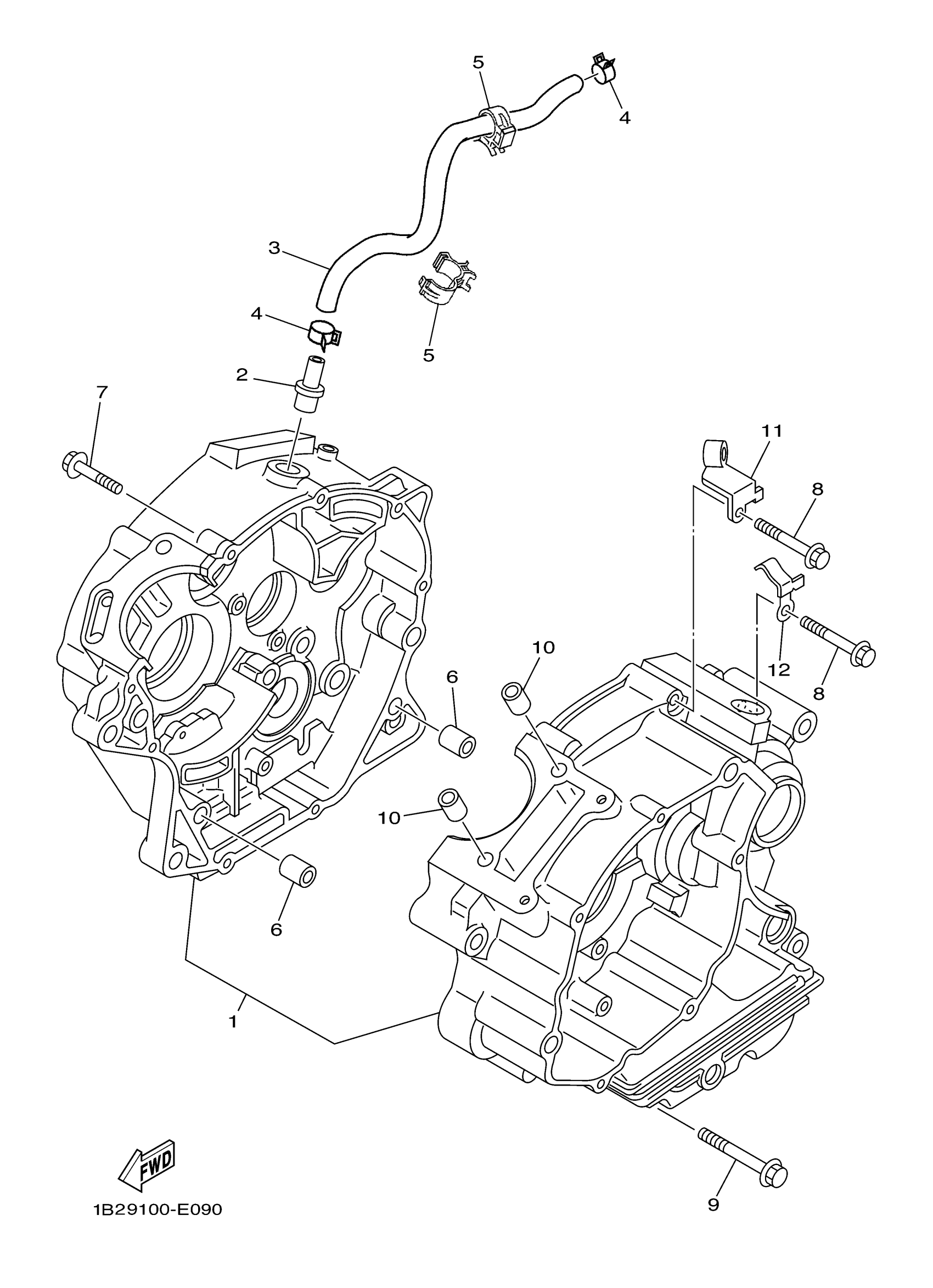

Yamaha TTR125LET1C (TTR125LE CAL) BSRH 2026 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HH-E5150-41-00

$448.99

2

PIPE, BREATHER 2

5HH-E1167-00-00

$7.49

3

PIPE, BREATHER 1

1B2-E1166-20-00

$11.49

4

CLIP

90467-13800-00

Unavailable

5

CLAMP(4HM)

90464-15192-00

$8.49

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

BOLT, FLANGE

90105-068A8-00

Unavailable

8

BOLT, SMALL FLANGE

95027-06045-00

$3.28

9

BOLT, FLANGE

95817-06055-00

$7.49

10

PIN, DOWEL(3VD)

99530-10114-00

$2.55

11

HOLDER, CLUTCH CABLE

1B2-E5441-00-00

$4.29

12

CLAMP

90462-08813-00

Unavailable
