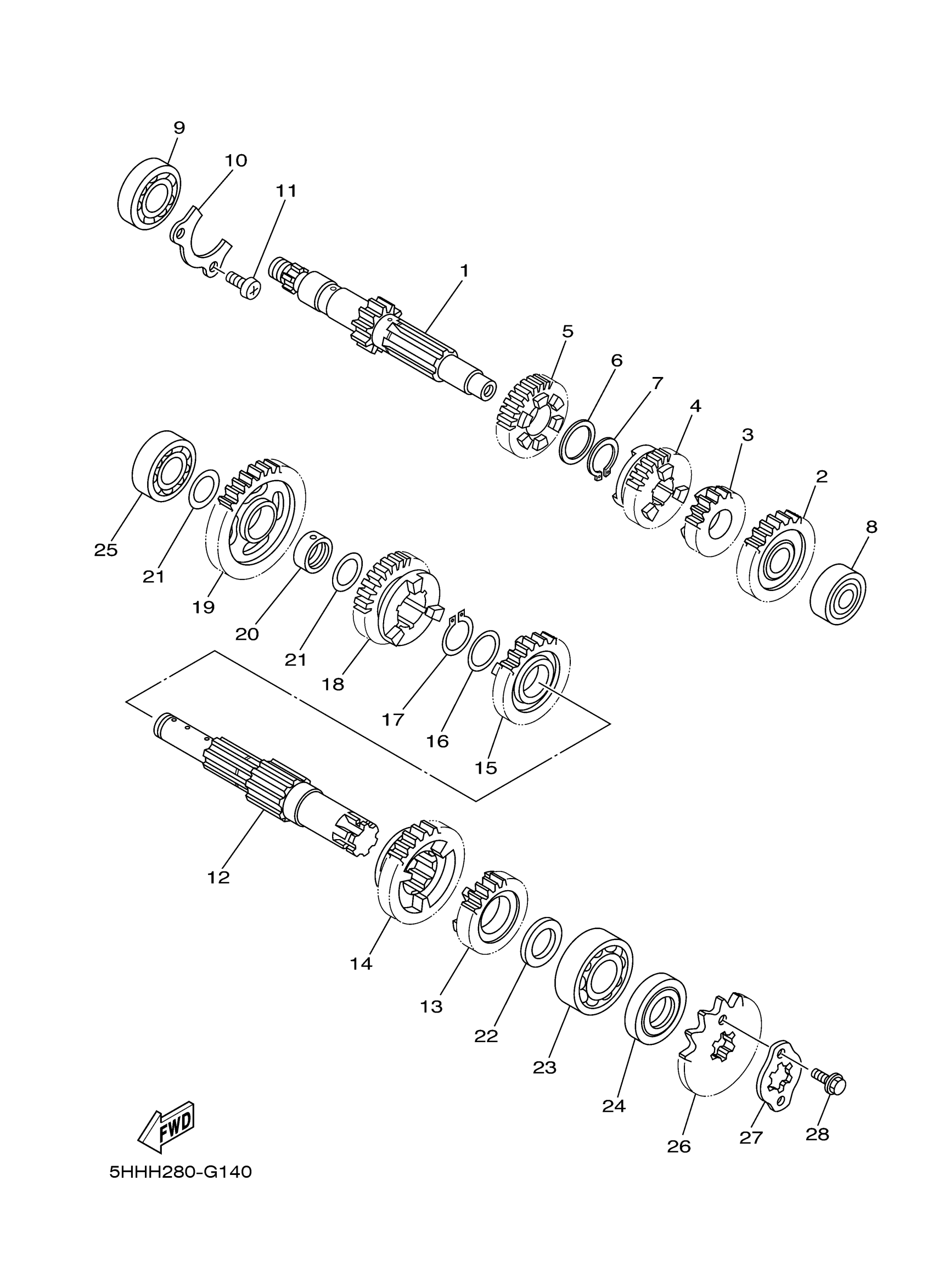

Yamaha TTR125LET1 (TTR125LE) BSRG 2026 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5HH-E7411-20-00

Unavailable

2

GEAR, 5TH PINION (24T)

5HH-E7151-30-00

Unavailable

3

GEAR,2ND PINION

5HH-E7121-20-00

Unavailable

4

GEAR, 3RD PINION (19T)

5AP-E7131-10-00

Unavailable

5

GEAR, 4TH PINION

5HH-E7141-20-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BEARING

93306-201X3-00

$18.99

9

BEARING

93306-203YG-00

$32.99

10

PLATE, COVER

5AP-17471-00-00

Unavailable

11

SCREW, PAN HEAD

9851M-06014-00

Unavailable

12

DRIVE AXLE ASSY

5LX-E7402-00-00

Unavailable

13

GEAR, 5TH WHEEL (21T)

5HH-E7251-30-00

Unavailable

14

GEAR, 2ND WHEEL (32T)

5RM-17221-00-00

$71.99

15

GEAR, 3RD WHEEL

5LX-E7231-10-00

$93.99

16

WASHER, CLAW

90214-19002-00

Unavailable

17

CIRCLIP (537)

93410-22039-00

Unavailable

18

GEAR, 4TH WHELL (23T)

5HH-E7241-20-00

Unavailable

19

GEAR, 1ST WHEEL (37T)

5HH-E7211-30-00

Unavailable

20

COLLAR 1

5YY-E7258-00-00

Unavailable

21

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

22

WASHER PLATE 820473590000

90201-20272-00

Unavailable

23

BEARING

93306-204X8-00

Unavailable

24

OIL SEAL (20X38X5-517)

93102-20143-00

Unavailable

25

BEARING (30X)

93306-20332-00

Unavailable

26

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

27

HOLDER, SPROCKET

1B2-E7456-00-00

Unavailable

28

BOLT

9131M-05010-00

Unavailable
