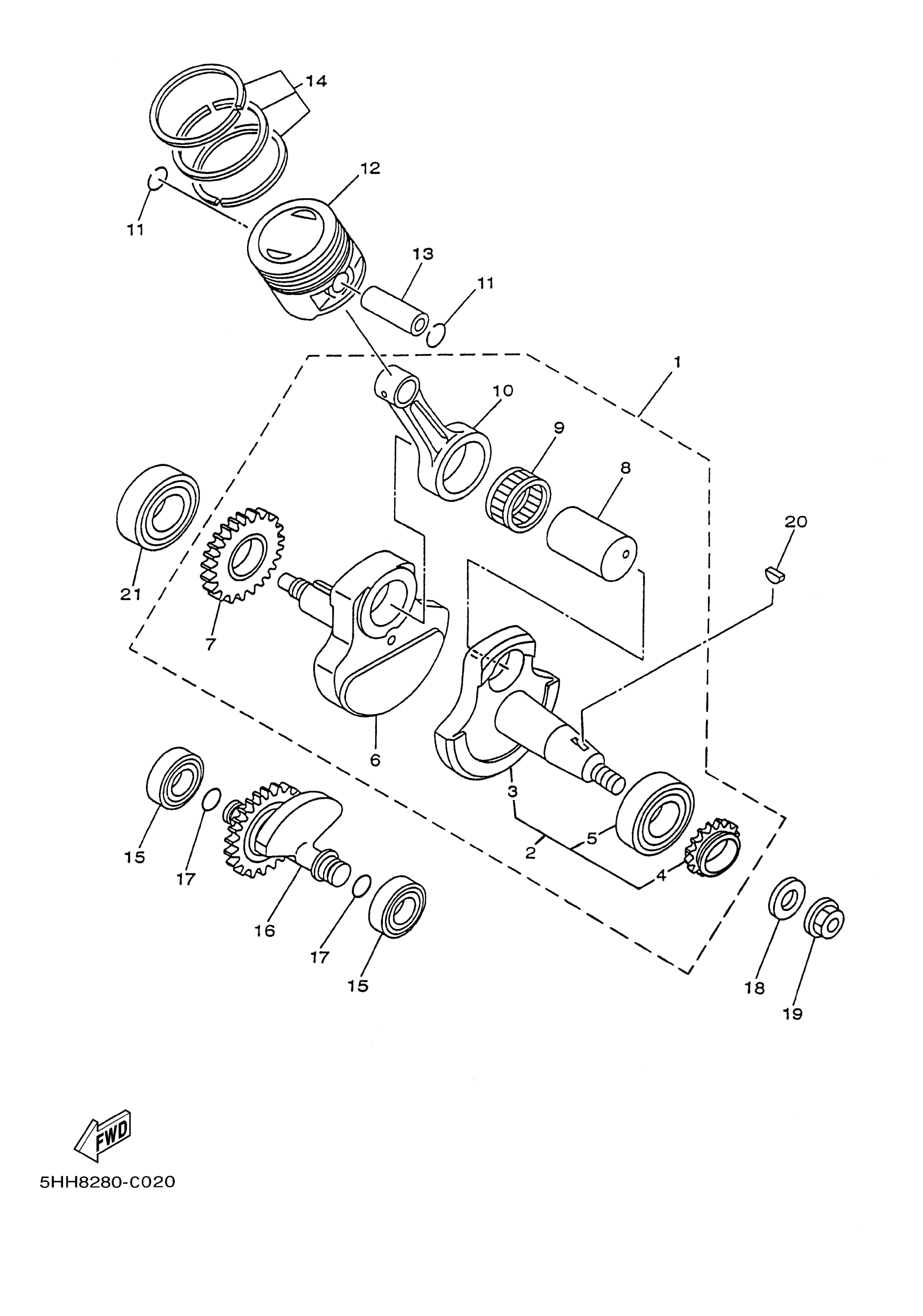

Yamaha TTR125LET1 (TTR125LE) BSRG 2026 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5HH-E1400-20-00

$304.80

2

. CRANK SUB ASSY 1

5HH-WE141-20-00

$45.91

3

. CRANK 1

5HH-E1412-20-00

Unavailable

4

SPROCKET, CAM CHAIN

5HH-11549-10-00

Unavailable

5

BEARING

93306-20532-00

$53.79

6

. CRANK 2

5HH-E1422-10-00

$30.65

7

GEAR, DRIVE

5HH-E1536-00-00

$73.29

8

PIN, CRANK 1

4LS-11681-01-00

$55.64

9

BEARING

93310-6290C-00

$74.23

10

ROD, CONNECTING

4LS-11651-02-00

$75.70

11

CIRCLIP (4G0)

93450-16068-00

$5.59

12

PISTON STD

1B2-E1631-00-A0

$91.03

12

PISTON (0.50MM O/S

1B2-E1636-09-00

Unavailable

12

PISTON (1.00MM O/S

1B2-E1638-09-00

Unavailable

13

PIN, PISTON

2TK-11633-00-00

$19.28

14

PISTON RING SET (1.00MM O/S)

4LS-11607-00-00

Unavailable

14

PISTON RING SET (STD)

5RM-E1603-00-00

Unavailable

14

PISTON RING SET (0.50MM O/S)

5RM-E1605-00-00

Unavailable

15

BEARING

93306-252YA-00

Unavailable

16

BALANCER ASSY

5HH-E1500-03-00

Unavailable

17

O-RING

93210-11001-00

Unavailable

18

WASHER, PLATE (4K8)

90201-120E8-00

Unavailable

19

NUT(3EF)

90179-12657-00

Unavailable

20

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

21

BEARING

93306-205YW-00

Unavailable
