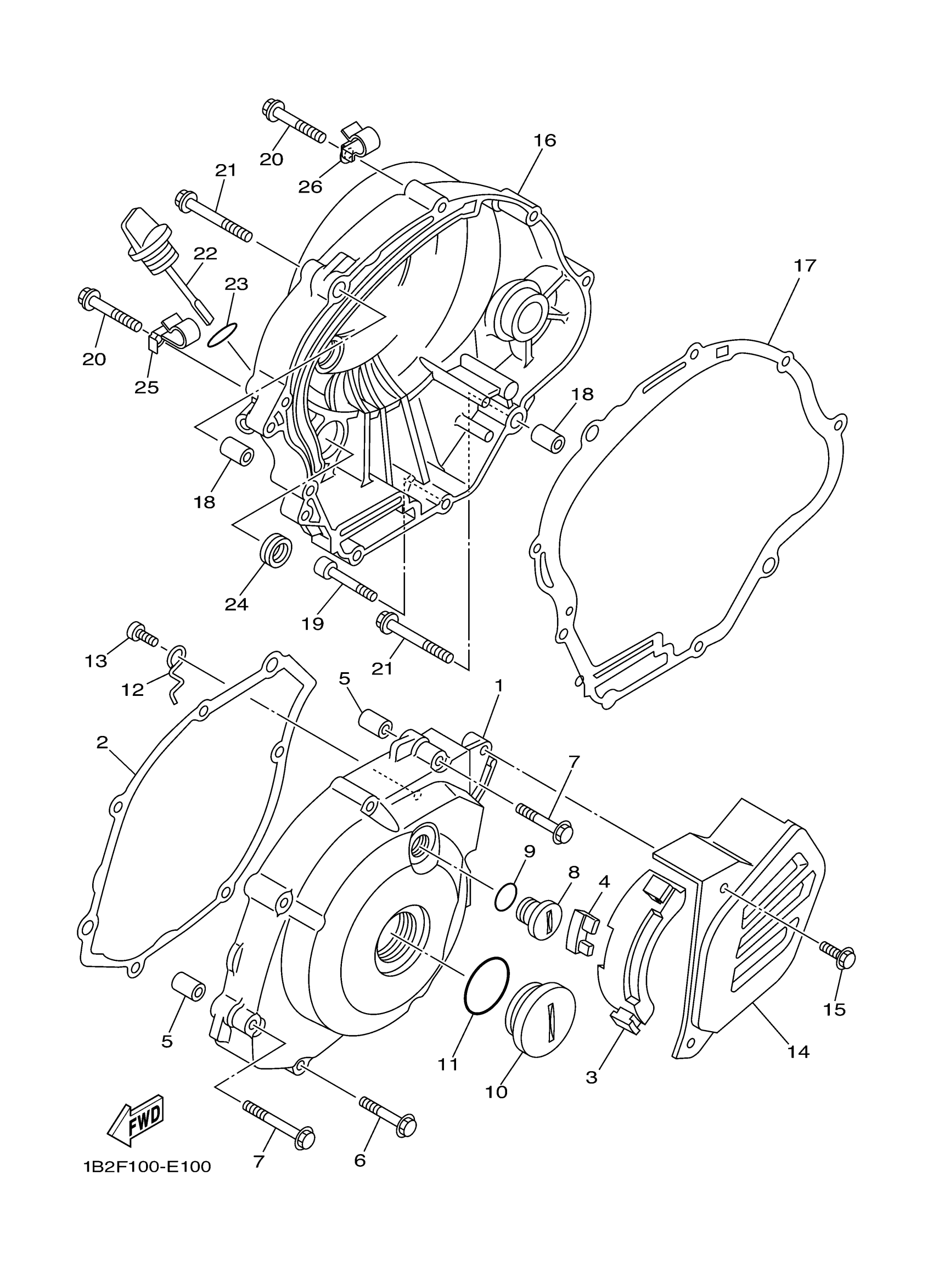

Yamaha TTR125LET1 (TTR125LE) BSRG 2026 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

1B2-E5411-00-00

$324.99

2

GSKT.,CRANKCASE COVER 1

5HH-E5451-00-00

$3.66

3

GUIDE, INLET

1B2-E5377-00-00

$4.24

4

DAMPER, ENGINE MOUNT 1

1B2-E5316-00-00

$2.17

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, SMALL FLANGE

95027-06035-00

$2.22

7

BOLT, SMALL FLANGE

95027-06045-00

$3.28

8

PLUG, STRAIGHT SCREW

90340-14W06-00

$9.49

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW(3AW)

90340-32123-00

$23.99

11

O-RING (341)

93210-32172-00

$7.49

12

PLATE

5HH-E5191-00-00

$0.95

13

SCREW, PAN HEAD

9851M-06010-00

$2.17

14

COVER, CHAIN CASE

1B2-E5418-00-00

$24.99

15

BOLT, FLANGE

95817-06016-00

$2.75

16

COVER, CRANKCASE 2

1B2-E5421-10-00

Unavailable

17

GSKT., CRANKCASE COVER 2

5HH-E5461-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

BOLT, HEXGON SOCKET HEAD

91380-06035-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06035-00

$2.22

21

BOLT, SMALL FLANGE

95027-06045-00

$3.28

22

PLUG, OIL LEVEL

5HH-E5362-00-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

24

OIL SEAL

93101-10812-00

Unavailable

25

CLAMP

90465-08043-00

Unavailable

26

CLAMP

90465-08041-00

Unavailable
