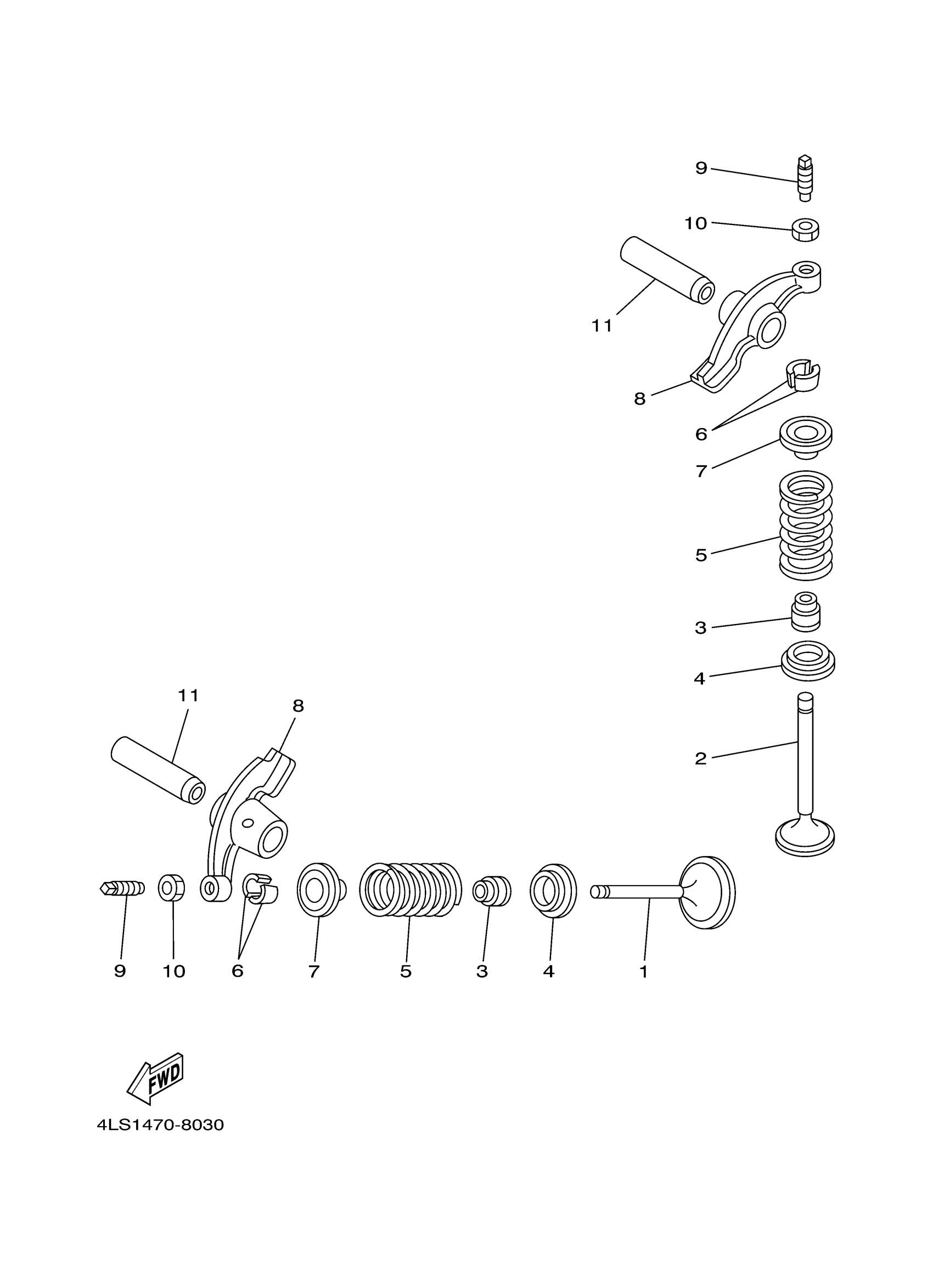

Yamaha TTR125LET (TT-R125LE) 1B27 2005 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5HP-12111-01-00

$35.65

2

VALVE, EXHAUST

5HP-12121-00-00

$43.60

3

SEAL, VALVE STEM

2HX-12119-00-00

$11.48

4

SEAT, VALVE SPRING

22F-12116-00-00

$8.88

5

SPRING, VALVE INNER

5HP-12113-00-00

$14.81

6

COTTER, VALVE

22F-12118-01-00

$5.96

7

RETAINER, VALVE SPRING

22F-12117-02-00

$6.26

8

ARM, VALVE ROCKER

50M-12151-00-00

$60.01

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.56

10

NUT (22F)

90170-05302-00

$0.70

11

SHAFT, ROCKER 2

5VL-E2156-00-00

$17.48
