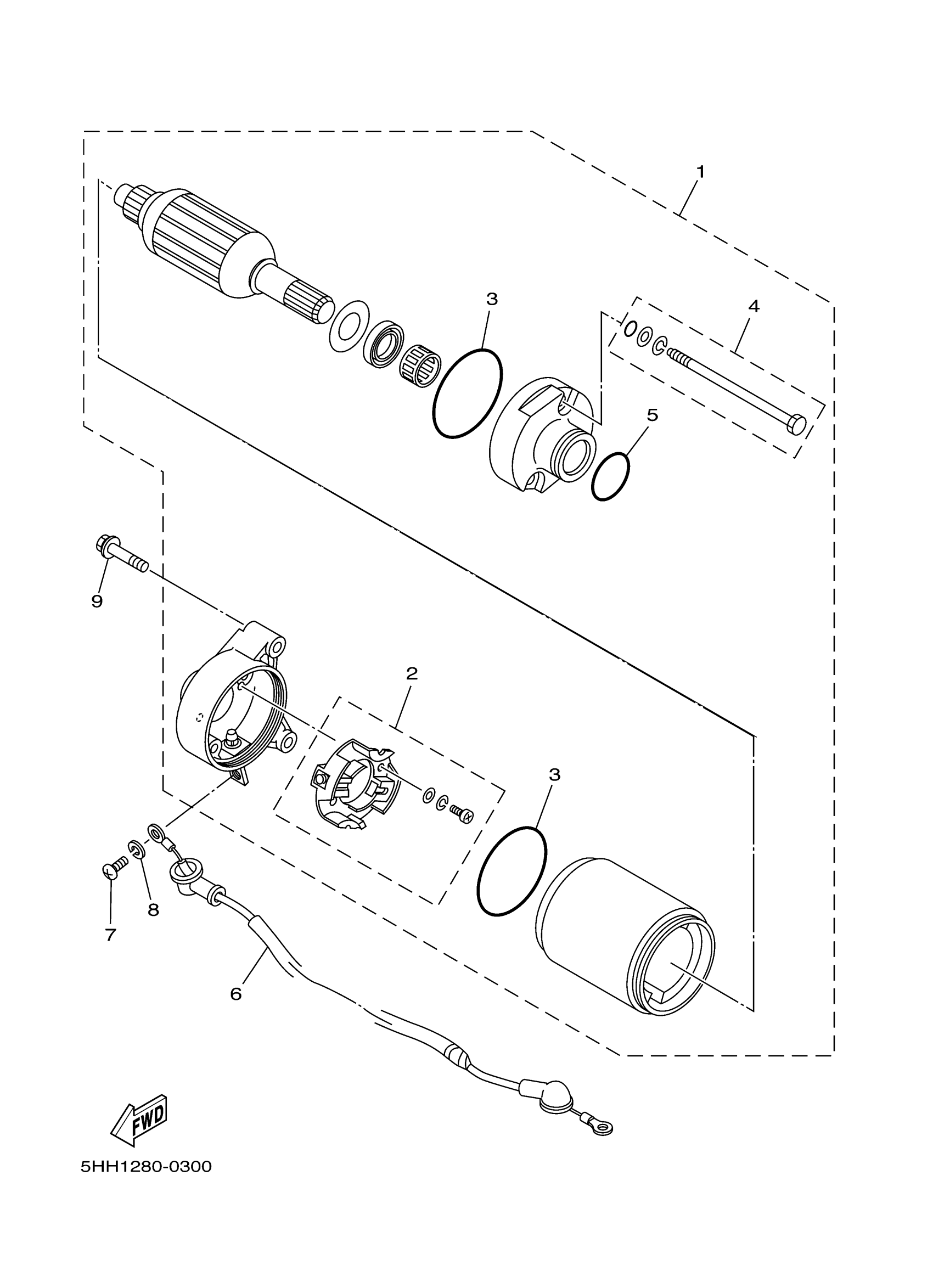

Yamaha TTR125LET (TT-R125LE) 1B27 2005 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

5HH-81890-00-00

Unavailable

2

BRUSH SET

3C5-81801-00-00

$18.26

3

O-RING(50M)

93210-55669-00

$6.70

4

BOLT 2

59V-81828-M0-00

$14.67

5

O-RING(1RL)

93210-25711-00

$5.59

6

CORD COMP.

5HP-8183G-00-00

Unavailable

7

GASKET, EXHAUST

98507-05008-00

$2.52

8

WASHER(3SX)

92907-05100-00

$5.76

9

BOLT, SMALL FLANGE

95027-06025-00

$2.95
