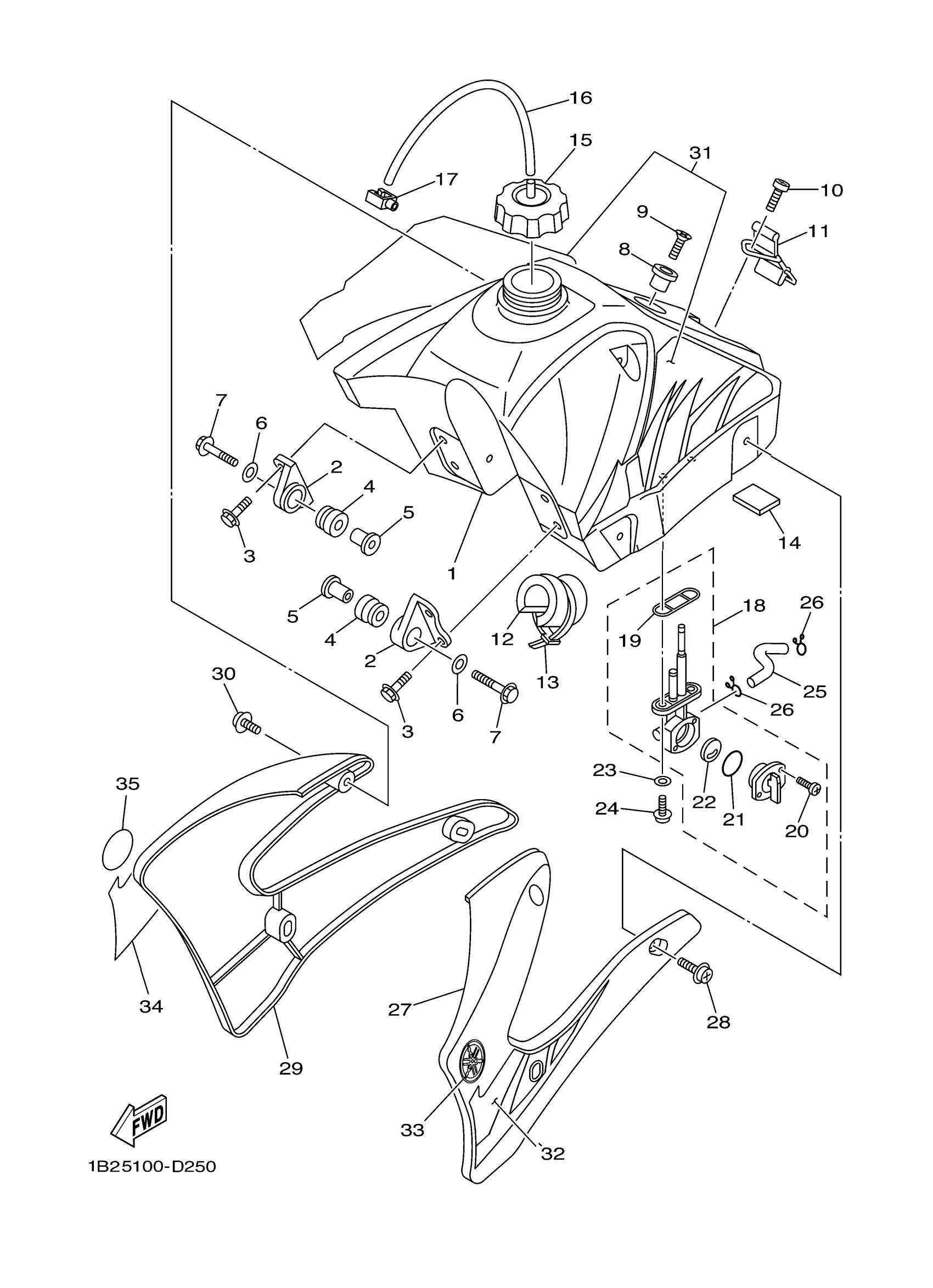

Yamaha TTR125LET (TT-R125LE) 1B27 2005 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5HP-24110-30-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$23.99

3

BOLT, FLANGE

95817-06016-00

$2.75

4

GROMMET(4AA)

90480-18549-00

$10.49

5

WASHER, SPECIAL

3JD-24186-00-00

$13.49

6

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

7

BOLT, FLANGE

95817-06030-00

$4.29

8

BRACKET, SEAT

4EW-2412F-00-00

$14.49

9

SCREW, FLAT

98707-06025-00

$8.49

10

SCREW, BINDING

98907-06020-00

$8.49

11

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

12

DAMPER, SIDE COVER

1B2-F4145-01-00

Unavailable

13

CLAMP(MF1)

90464-15152-00

$5.60

14

DAMPER 1

1B2-F8415-00-00

$0.40

15

CAP ASSY

2FJ-24610-20-00

$68.99

16

PIPE, BREATHER

5HN-21826-00-00

Unavailable

17

CLAMP

90464-13003-00

Unavailable

18

FUEL COCK ASSY 1

23F-24500-20-00

Unavailable

19

O-RING

4X8-24512-00-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

SEAL, COCK

3AJ-24534-01-00

Unavailable

22

VALVE PACKING

3AC-24523-00-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable

25

HOSE (L200)

90445-10752-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable

27

SCOOP, AIR 1

5HP-2137W-00-00

Unavailable

28

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

29

SCOOP, AIR 2

5HP-2137X-00-00

Unavailable

30

SCREW, WITH WASHER(3YJ)

90159-06182-00

Unavailable

31

GRAPHIC SET

1B2-24240-00-00

Unavailable

32

GRAPHIC 1

1B2-F137N-00-00

Unavailable

33

TUNING FORK MARK

1B2-F175C-00-00

Unavailable

34

GRAPHIC 2

1B2-F137P-00-00

Unavailable

35

TUNING FORK MARK

1B2-F175C-00-00

Unavailable
