Description

Price

1

COVER, CRANKCASE 1

5HP-15411-10-00

Unavailable

2

GASKET, CRANKCASE COVER 1

5HP-15451-00-00

$16.49

3

GUIDE, INLET

5HP-15377-00-00

Unavailable

4

DAMPER, ENGINE MOUNT 1

5HP-15316-00-00

Unavailable

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

BOLT, SMALL FLANGE

95027-06035-00

$2.22

7

BOLT, SMALL FLANGE

95027-06045-00

$3.28

8

PLUG, STRAIGHT SCREW(2WK)

90340-14120-00

$14.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

PLUG, STRAIGHT SCREW(3LD)

90340-32126-00

$24.99

11

O-RING (341)

93210-32172-00

$7.49

12

PLATE

5HP-15191-00-00

Unavailable

13

SCREW, PAN

98507-06010-00

$3.55

14

COVER, CHAIN CASE

5HP-15418-10-00

$73.99

15

BOLT, FLANGE

95817-06016-00

$2.75

16

COVER, CRANKCASE 2

5HP-15421-00-00

Unavailable

17

GASKET, CRANKCASE COVER 2

5HP-15461-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

$2.55

19

BOLT, SMALL FLANGE

95027-06035-00

$2.22

20

BOLT, SMALL FLANGE

95027-06045-00

$3.28

21

PLUG, OIL LEVEL

5HH-15362-00-00

Unavailable

22

O-RING (646)

93210-19123-00

Unavailable

23

OIL SEAL(2FJ)

93101-10142-00

Unavailable

24

CLAMP

90465-08043-00

Unavailable

25

CLAMP

90465-08041-00

Unavailable

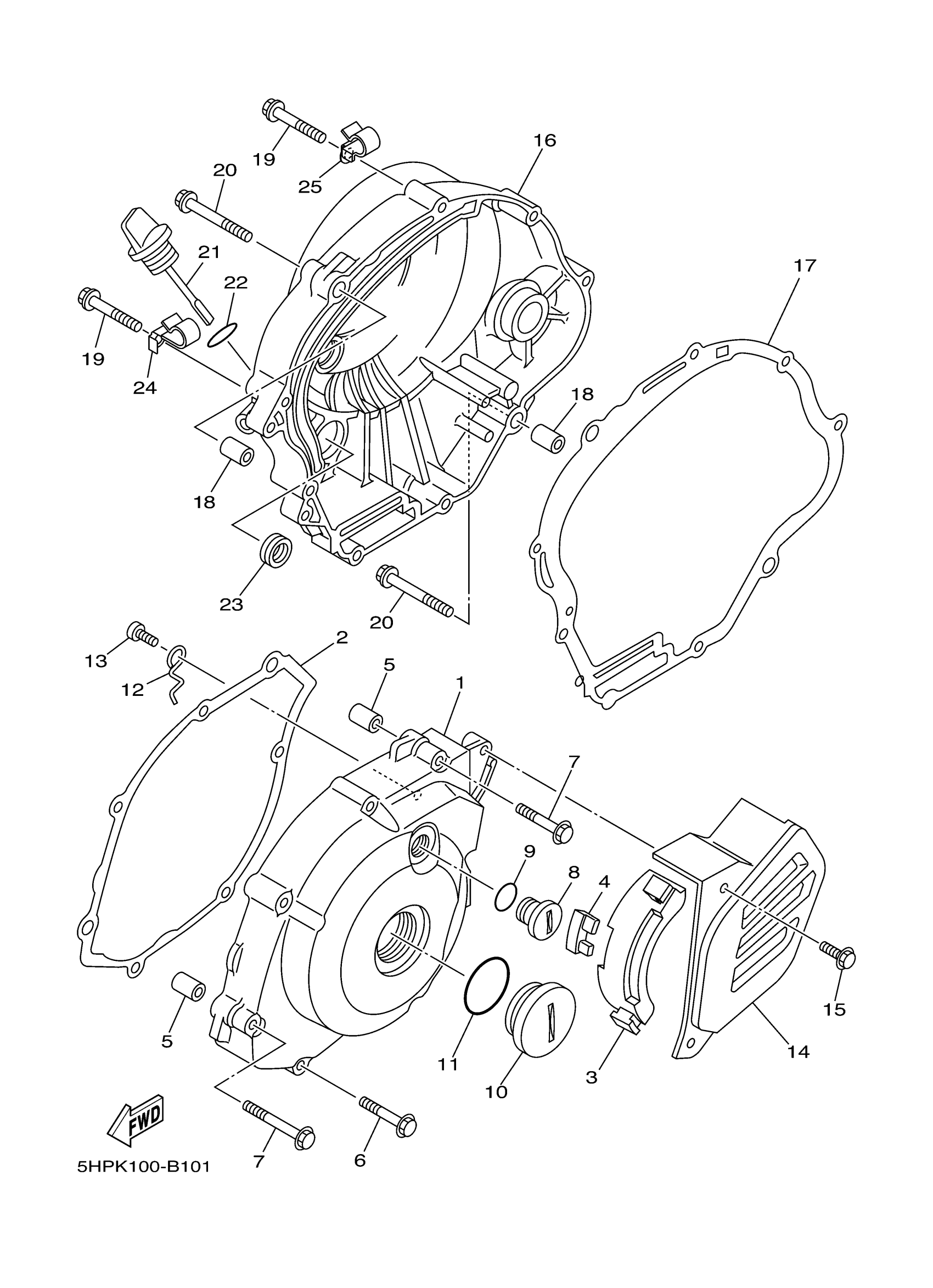

Yamaha TTR125LES (TT-R125E) 5HPW 2004 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

GASKET, CRANKCASE COVER 1

GUIDE, INLET

DAMPER, ENGINE MOUNT 1

PIN, DOWEL(3VD)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

PLUG, STRAIGHT SCREW(2WK)

O-RING (2H9)

PLUG, STRAIGHT SCREW(3LD)

O-RING (341)

PLATE

SCREW, PAN

COVER, CHAIN CASE

BOLT, FLANGE

COVER, CRANKCASE 2

GASKET, CRANKCASE COVER 2

PIN, DOWEL(3VD)

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

PLUG, OIL LEVEL

O-RING (646)

OIL SEAL(2FJ)

CLAMP

CLAMP
