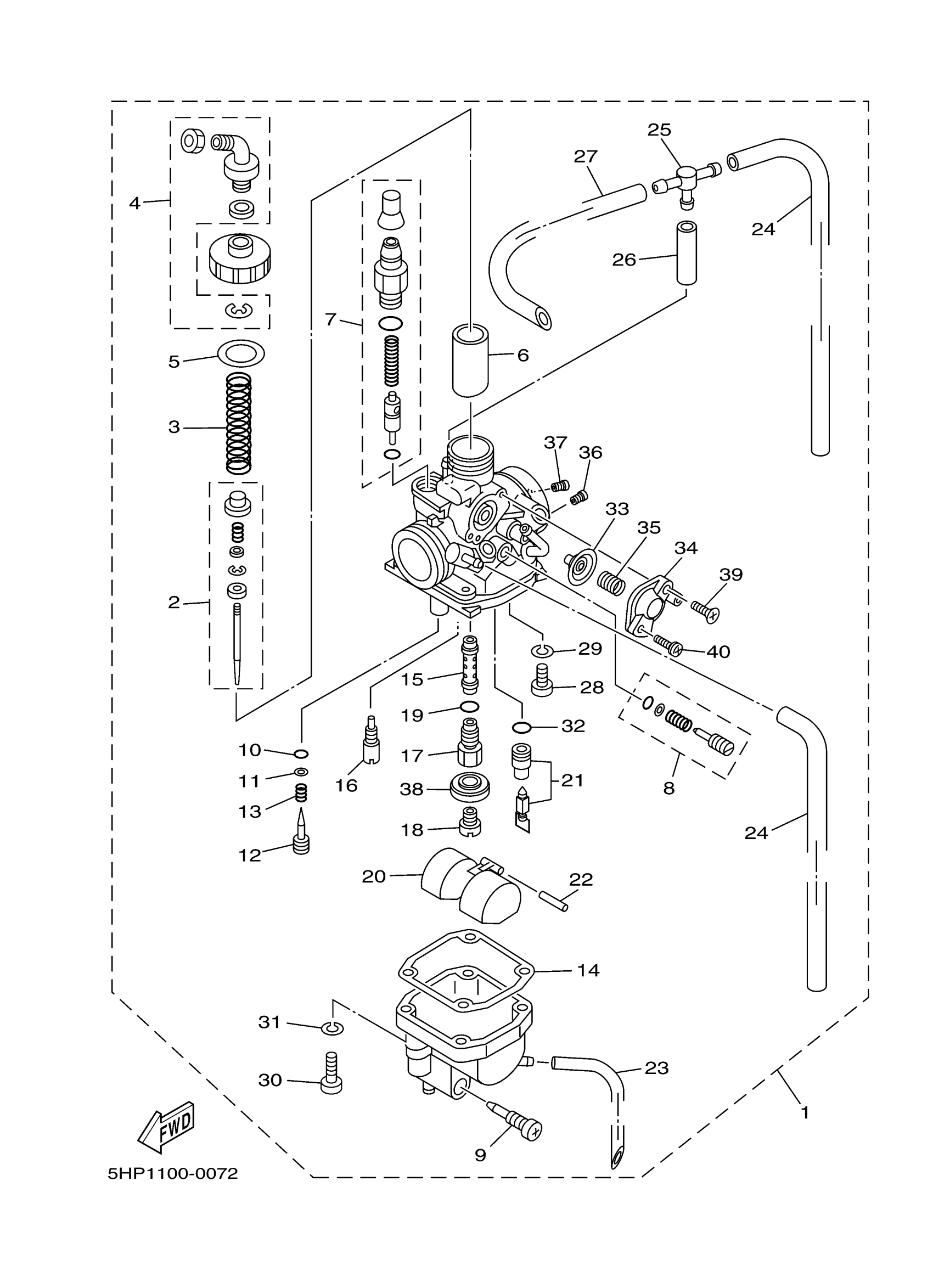

Yamaha TTR125LES (TT-R125E) 5HPW 2004 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5HP-14101-10-00
Unavailable
5
. GASKET
4LS-14126-00-00
Unavailable
6
. VALVE, THROTTLE 1
5HH-14112-25-00
Unavailable
12
SCREW, PILOT
4LS-14923-20-00
Unavailable
15
NOZZLE, MAIN
21V-1414M-26-00
Unavailable
16
JET, PILOT (# 15)
5HP-14142-15-00
Unavailable
17
SETTER, NEEDLE JET
5HP-14145-00-00
Unavailable
18
JET, MAIN (#105)
620-14231-21-A0
Unavailable
18
JET,MA1N #102.5
620-1423A-71-A0
Unavailable
19
O-RING
583-14561-00-00
Unavailable
20
FLOAT
5HH-14185-00-00
Unavailable
21
NEEDLE VALVE SET
5HP-14107-18-00
Unavailable
22
PIN, FLOAT
127-14186-00-00
Unavailable
23
HOSE (L700)
90445-05M07-00
Unavailable
24
HOSE (L1500)
90445-084J0-00
Unavailable
25
NIPPLE
66E-14251-00-00
Unavailable
26
PIPE 1
5HP-14348-00-00
Unavailable
27
PIPE
5CA-14197-00-00
Unavailable
28
SCREW, PAN
98507-03006-00
Unavailable
29
WASHER, SPRING
92990-03100-00
Unavailable
30
SCREW, PAN HEAD(N15)
98507-04014-00
Unavailable
31
WASHER(6TA)
92907-04100-00
Unavailable
32
O-RING
4LS-14147-00-00
Unavailable
33
DIAPHRAGM ASSY
5AP-14940-00-00
Unavailable
34
COVER, CARBURETOR
5HP-14280-00-00
Unavailable
35
SPRING, DIAPHRAGM
5AP-14933-00-00
Unavailable
36
JET, MAIN (# 80)
1HX-14231-16-00
Unavailable
37
JET, MAIN (#145)
1HX-14231-29-00
Unavailable
38
WASHER, MAIN JET
5V7-14153-00-00
Unavailable
39
SCREW
5HP-14565-09-00
Unavailable
40
SCREW
5HP-14216-00-00
Unavailable
