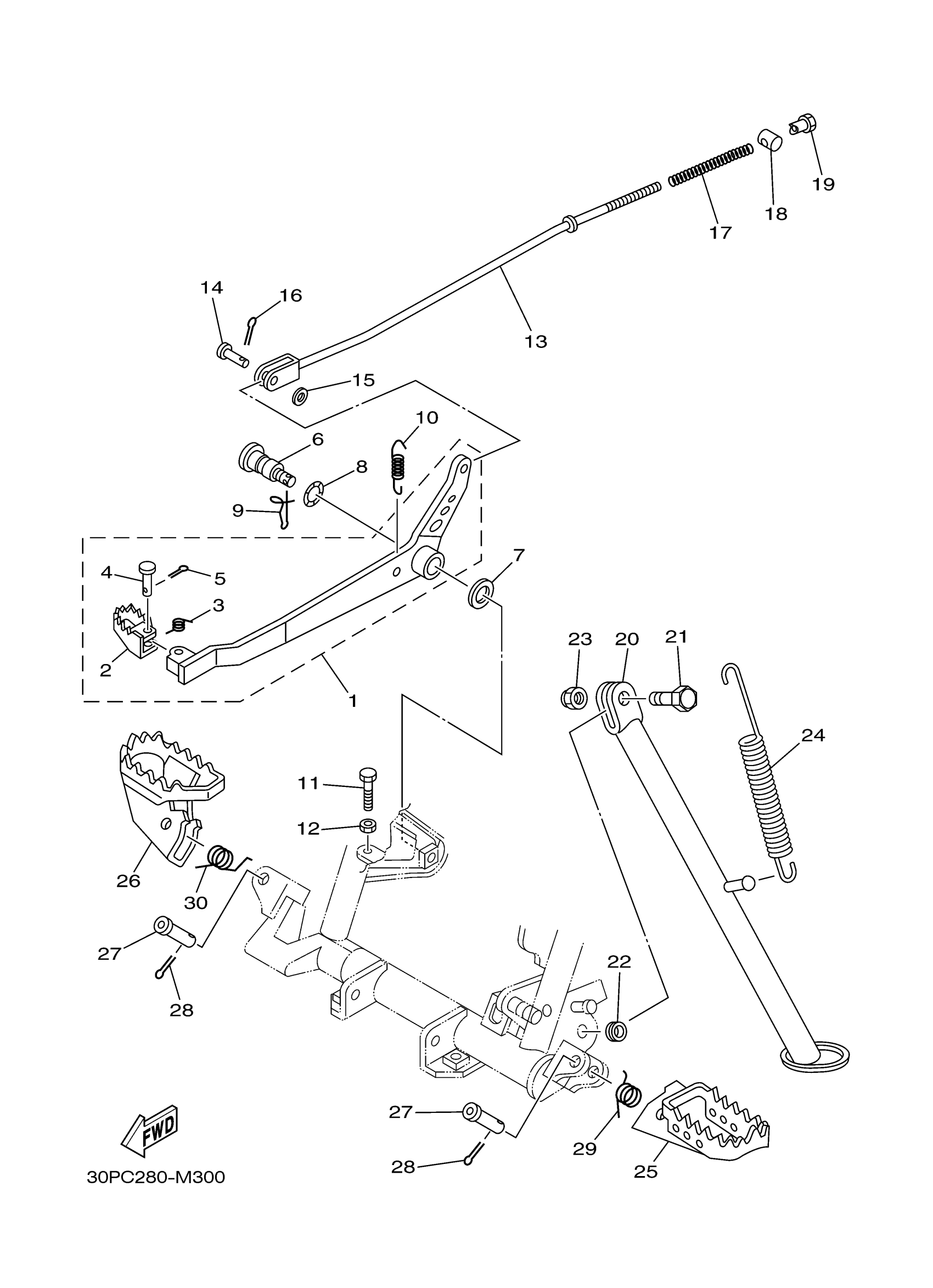

Yamaha TTR125LER1C (TTR125LE CA) BSR7 2024 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1B2-F7200-00-00

$77.99

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

SHAFT

2CC-F7261-00-00

$11.99

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

WASHER, WAVE

90206-14001-00

$8.49

9

CLIP

90468-20196-00

Unavailable

10

SPRING, TENSION(56A)

90506-16372-00

$8.49

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

NUT(JN5)

95317-06700-00

$8.49

13

ROD, BRAKE

1B2-F7231-10-00

$10.49

14

PIN, CLEVIS

90240-06804-00

$0.43

15

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

16

PIN, COTTER (648)

91490-20015-00

$2.20

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT

90179-06W21-00

Unavailable

20

STAND, SIDE

1B2-F7311-10-00

Unavailable

21

BOLT, HEXAGON M10

90101-10003-00

Unavailable

22

COLLAR

90387-10003-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

SPRING, TENSION

90506-35809-00

Unavailable

25

FOOTREST 1

1B2-F7411-00-00

Unavailable

26

FOOTREST 2

1B2-F7421-00-00

Unavailable

27

PIN, CLEVIS(2HJ)

90240-10117-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

SPRING, TORSION(3JD)

90508-28777-00

Unavailable

30

SPRING, TORSION(4GY)

90508-284A7-00

Unavailable
