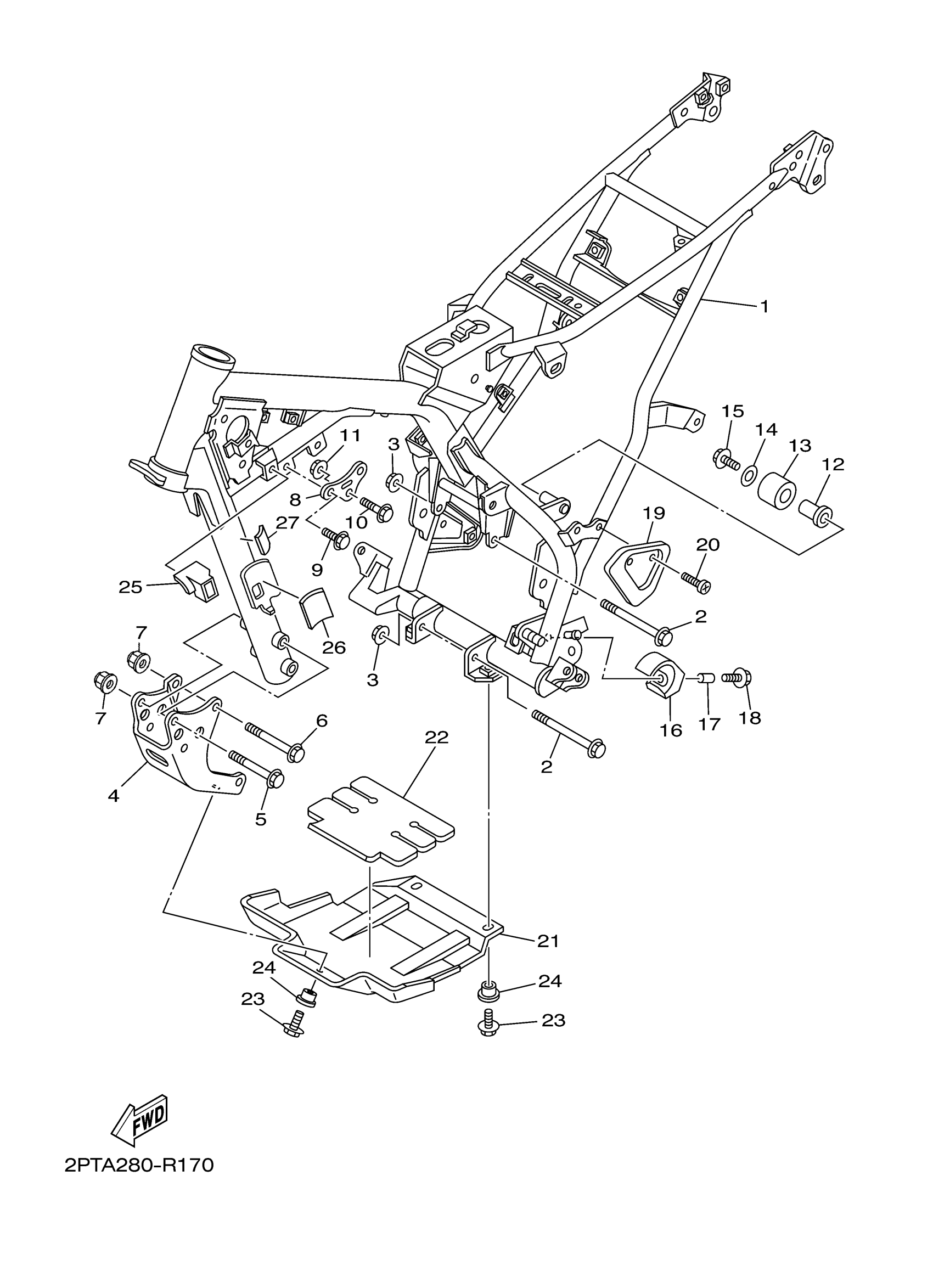

Yamaha TTR125LER1C (TTR125LE CA) BSR7 2024 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1B2-F1110-80-00

$726.99

2

BOLT, WASHER BASED

90105-08007-00

$5.60

3

NUT, SELF-LOCKING

90185-08169-00

$8.49

4

STAY, ENGINE 2

1B2-F1316-10-00

Unavailable

5

BOLT, FLANGE

90105-08852-00

$4.29

6

BOLT, WASHER BASED

90105-08011-00

$5.60

7

NUT, SELF-LOCKING

90185-08169-00

$8.49

8

STAY, ENGINE 2

1B2-F1315-00-00

$27.99

9

BOLT, WASHER BASED(JN9)

90105-082A0-00

$4.94

10

BOLT, WASHER BASED

90105-08002-00

$8.49

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

BUSH

5RM-F2184-00-00

$2.17

13

TENSIONER

5RM-F2178-00-00

$9.49

14

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

15

BOLT, SMALL FLANGE

95027-08012-00

$9.49

16

TENSIONER SET

99999-04397-00

Unavailable

17

COLLAR(51L)

90387-067K6-00

Unavailable

18

BOLT, WITH WASHER(81H)

90119-06118-00

Unavailable

19

COVER

1B2-F117F-00-00

Unavailable

20

SCREW, BIND(1JK)

98980-06010-00

Unavailable

21

PROTECTOR, ENGINE

1B2-F1471-00-00

Unavailable

22

DAMPER, RUBBER 1

5HP-21485-00-00

Unavailable

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

COLLAR (8G8)

90387-06681-00

Unavailable

25

COVER 4

1B2-F117R-00-00

Unavailable

26

DAMPER, 2

1B2-F4849-00-00

Unavailable

27

DAMPER

5HN-2139X-00-00

Unavailable
