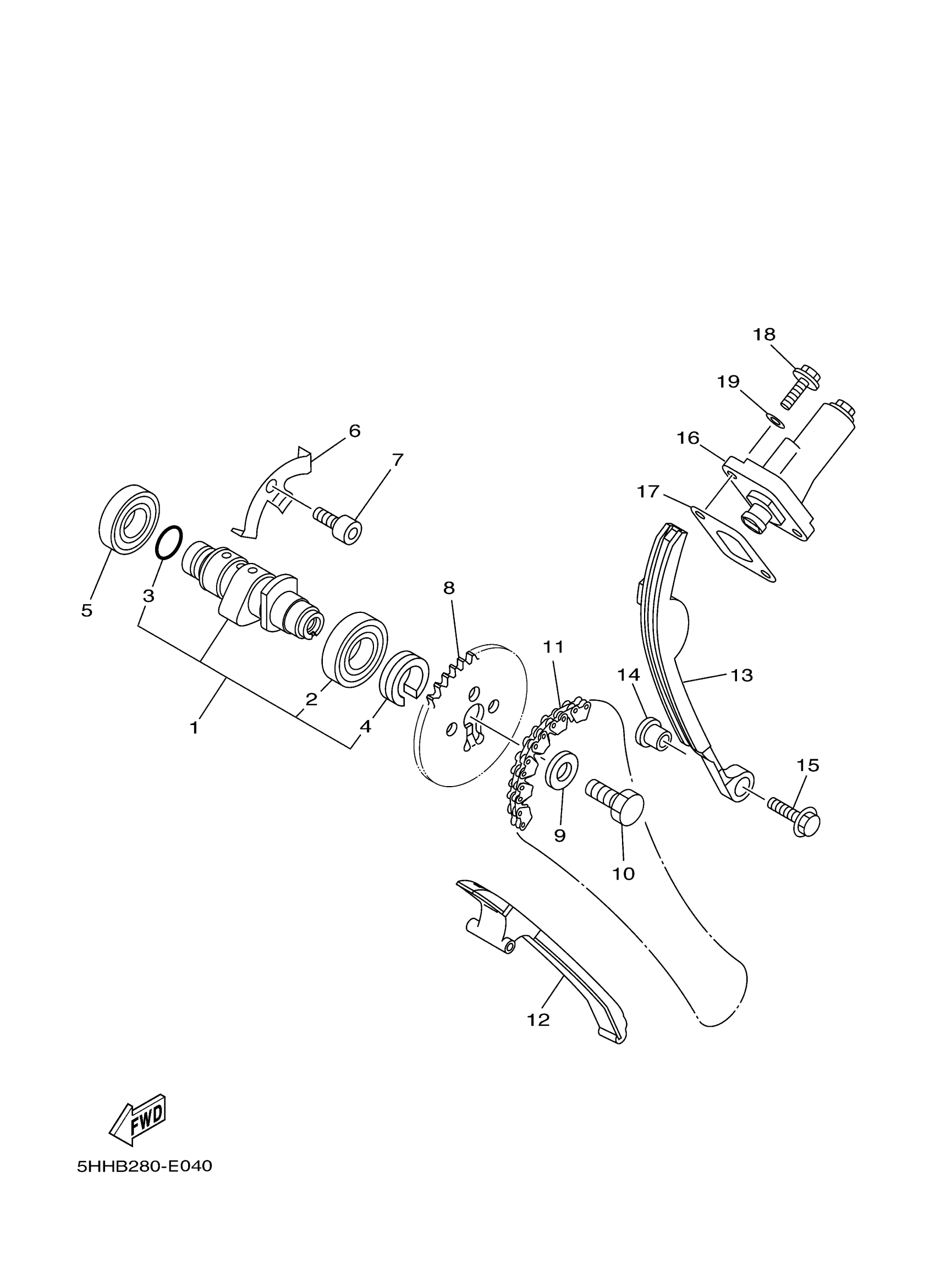

Yamaha TTR125LER1C (TTR125LE CA) BSR7 2024 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5HH-E2170-20-00

Unavailable

2

. BEARING

93306-003X0-00

Unavailable

3

O-RING (4G0)

93210-11453-00

$7.49

4

COLLAR

90387-16804-00

$8.49

5

BRG

93306-002Y5-00

Unavailable

6

PLATE

5HH-E111F-00-00

$2.10

7

BOLT M6

9131M-06012-00

$1.05

8

SPROCKET

5VL-E2176-10-00

$46.99

9

WASHER (853)

90201-08326-00

$8.49

10

BOLT, HEXAGON (22F)

90101-08590-00

$2.34

11

CHAIN

94582-18090-00

$17.49

12

GUIDE STOPPER 1

5YY-E2231-00-00

$16.49

13

GUIDE STOPPER 2

5YY-E2241-00-00

$42.99

14

COLLAR

5HH-E5598-00-00

$1.85

15

BOLT, FLANGE

95817-06020-00

$3.81

16

TENSIONER ASSY, CAM CHAIN

18D-12210-00-00

Unavailable

17

GASKET, TENSIONER CASE 1

5HH-E2213-00-00

Unavailable

18

BOLT, FLANGE

95817-06016-00

Unavailable

19

GASKET 256113960000

90430-06014-00

Unavailable
