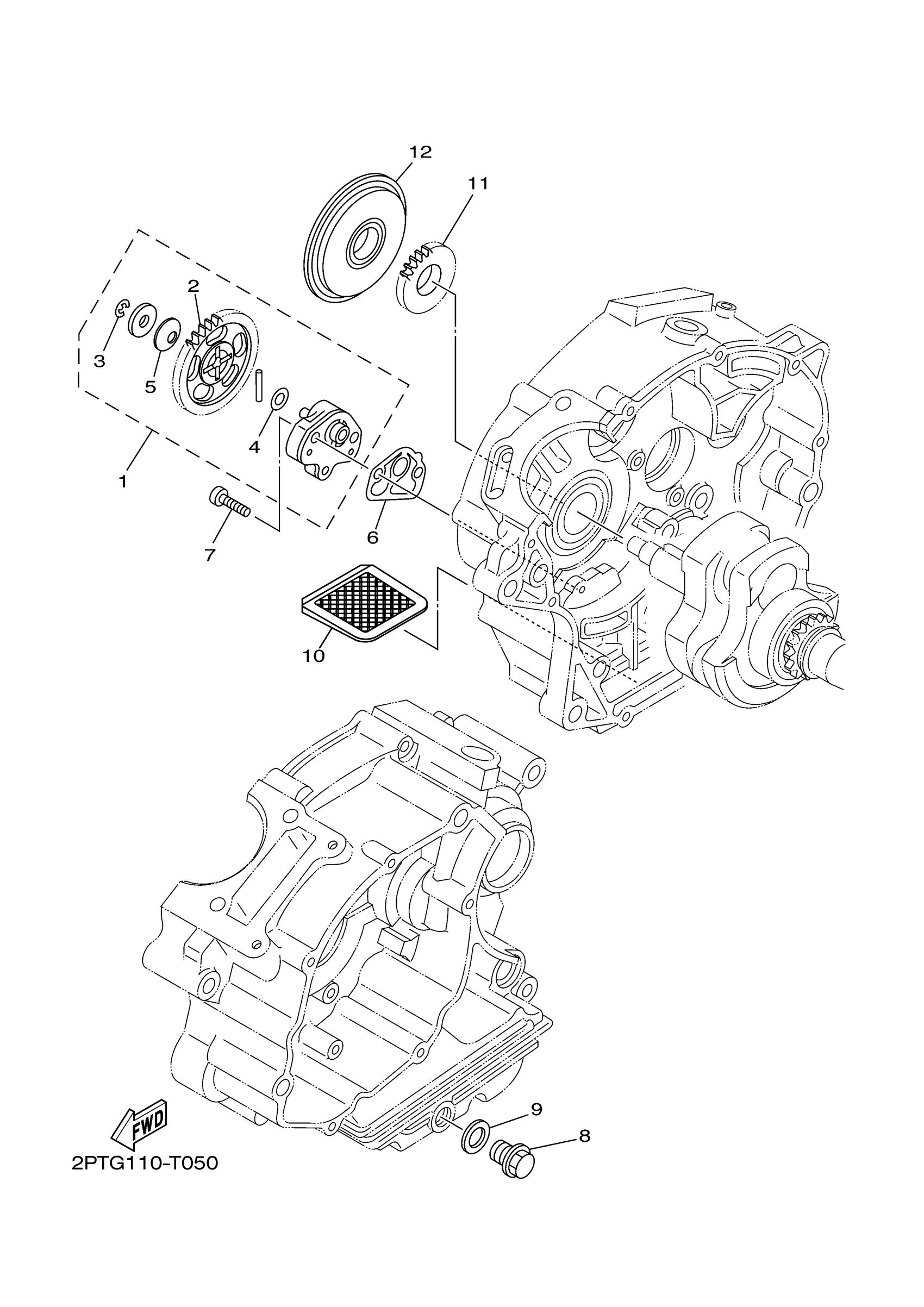

Yamaha TTR125LER1 (TTR125LE) BSR6 2024 OIL PUMP Diagram

OIL PUMP ASSY

5VL-E3300-01-00

$142.11

GEAR, PUMP DRIVEN

5VL-E3325-00-00

$7.55

CIRCLIP

93430-05823-00

Unavailable

WASHER, PLATE(8E7)

90201-07641-00

$3.11

WASHER, CONICAL SPRING(4GL)

90208-07052-00

$2.59

GASKET, PUMP COVER

5HH-E3329-00-00

$0.36

SCREW, FLAT FILLISTER

90155-06002-00

$0.58

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.63

GASKET (3JD1)

90430-12207-00

$6.32

STRAINER, OIL

4S9-E3411-00-00

Unavailable

GEAR, PUMP DRIVE

1B2-E3324-00-00

$21.58

FILTER,ROTARY

5VL-E3451-00-00

$16.27
