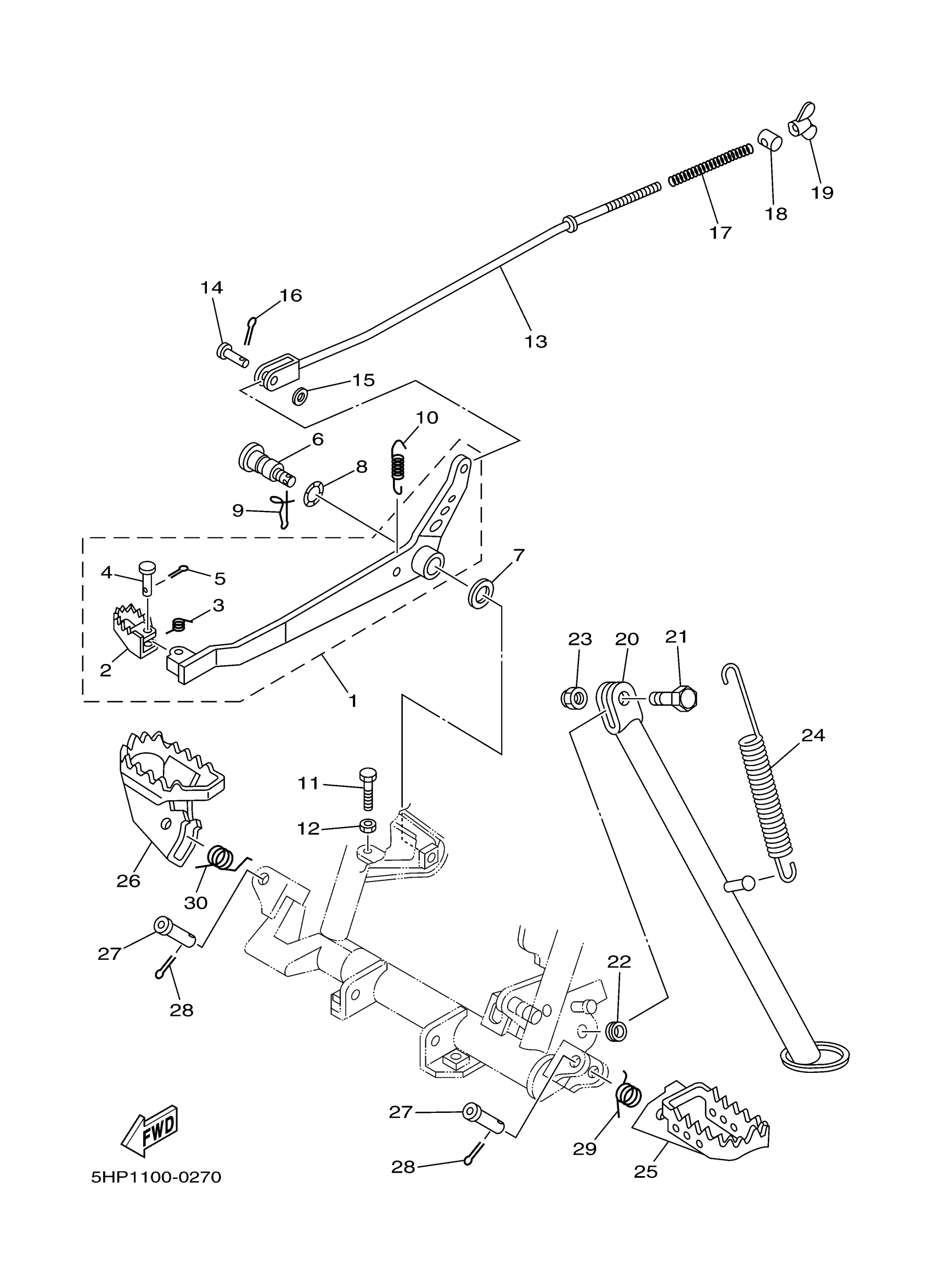

Yamaha TTR125LER (TTR125LE) 5HPM 2003 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5HP-27200-00-00

Unavailable

2

PEDAL, BRAKE

55V-27242-00-00

$23.99

3

SPRING, TORSION (1W2)

90508-14352-00

$9.49

4

PIN, COTTER (1W2)

91701-06022-00

$2.49

5

PIN, COTTER (648)

91490-20015-00

$2.20

6

SHAFT

2CC-F7261-00-00

$11.99

7

WASHER, PLATE(52H)

90201-105J4-00

$9.49

8

WASHER, WAVE

90206-14001-00

$8.49

9

CLIP

90468-20196-00

Unavailable

10

SPRING, TENSION(56A)

90506-16372-00

$8.49

11

BOLT, HEXAGON

97017-06016-00

$8.49

12

NUT(JN5)

95317-06700-00

$8.49

13

ROD, BRAKE

5HP-27231-10-00

Unavailable

14

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

15

WASHER(6TA)

92907-06200-00

$8.49

16

PIN, COTTER (648)

91490-20015-00

$2.20

17

SPRING, (180-27236-00)

90501-10245-00

Unavailable

18

PIN 1562723700

90249-12008-00

Unavailable

19

NUT, WING (1K5)

90175-06013-00

Unavailable

20

STAND, SIDE

5HP-27311-00-00

Unavailable

20

STAND, SIDE

5HP-27311-10-00

Unavailable

21

BOLT, HEXAGON M10

90101-10003-00

Unavailable

22

COLLAR

90387-10003-00

Unavailable

23

NUT, U

90185-10037-00

Unavailable

24

SPRING, TENSION(4BF)

90506-35474-00

Unavailable

25

FOOTREST 1

4DA-27411-00-00

Unavailable

26

FOOTREST 2

4GY-27421-00-00

Unavailable

27

PIN, CLEVIS(2HJ)

90240-10117-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

SPRING, TORSION(3JD)

90508-28777-00

Unavailable

30

SPRING, TORSION(4GY)

90508-284A7-00

Unavailable
