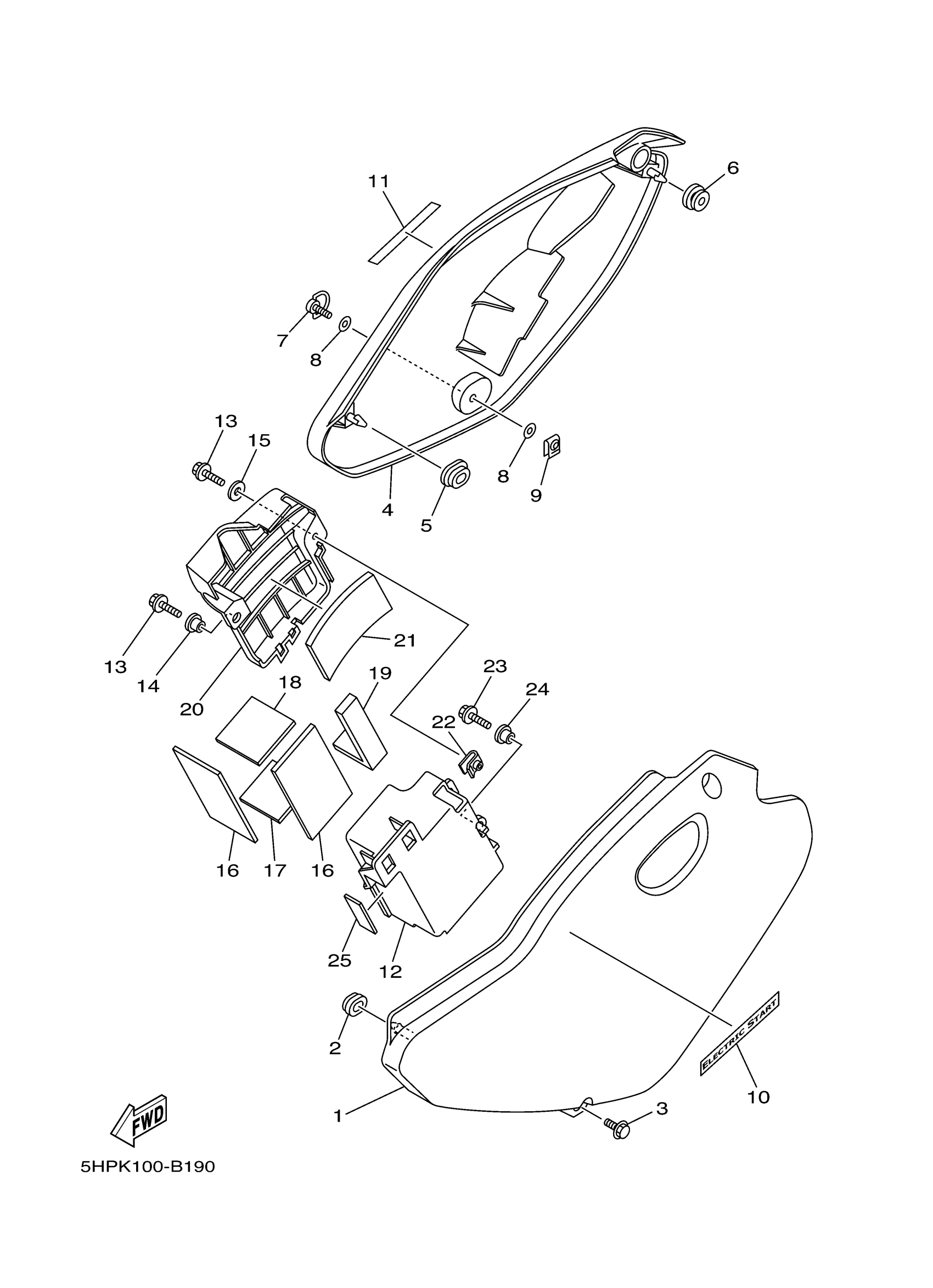

Yamaha TTR125LER (TTR125LE) 5HPM 2003 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5HP-21711-00-00

$49.24

2

GROMMET(4DN)

90480-01558-00

$3.68

3

BOLT, HEXAGON

97017-06016-00

$5.76

4

COVER, SIDE 2

5HP-21721-10-00

$37.57

5

GROMMET(4DN)

90480-01558-00

$3.68

6

GROMMET

90480-13014-00

$6.39

7

HEAD

3FV-28386-00-00

$33.27

8

WASHER, SPECIAL 1

2TK-21757-00-00

$1.64

9

PLATE, SPRING

4XV-2177L-01-00

$5.79

10

EMBLEM

5HP-21737-00-00

Unavailable

11

EMBLEM

5HP-21737-00-00

Unavailable

12

BOX, BATTERY

5HP-2177G-00-00

Unavailable

13

BOLT, FLANGE

95817-06020-00

$2.52

14

COLLAR (3L6)

90387-06737-00

$6.17

15

WASHER, PLATE

90201-06020-00

$5.86

16

DAMPER

5HP-2174X-00-00

Unavailable

17

DAMPER

5HP-21746-00-00

Unavailable

18

DAMPER

1B2-F174Y-00-00

Unavailable

19

DAMPER

5HP-21747-00-00

Unavailable

20

COVER, BATTERY

5HP-82129-01-00

Unavailable

21

PAD, BATTERY

5HP-82121-00-00

Unavailable

22

NUT, SPRING(4ES)

90183-06069-00

$5.69

23

BOLT, FLANGE

95817-06016-00

Unavailable

24

COLLAR(50M)

90387-087L0-00

Unavailable

25

DAMPER, LOCATING 1

4X4-24181-00-00

Unavailable
