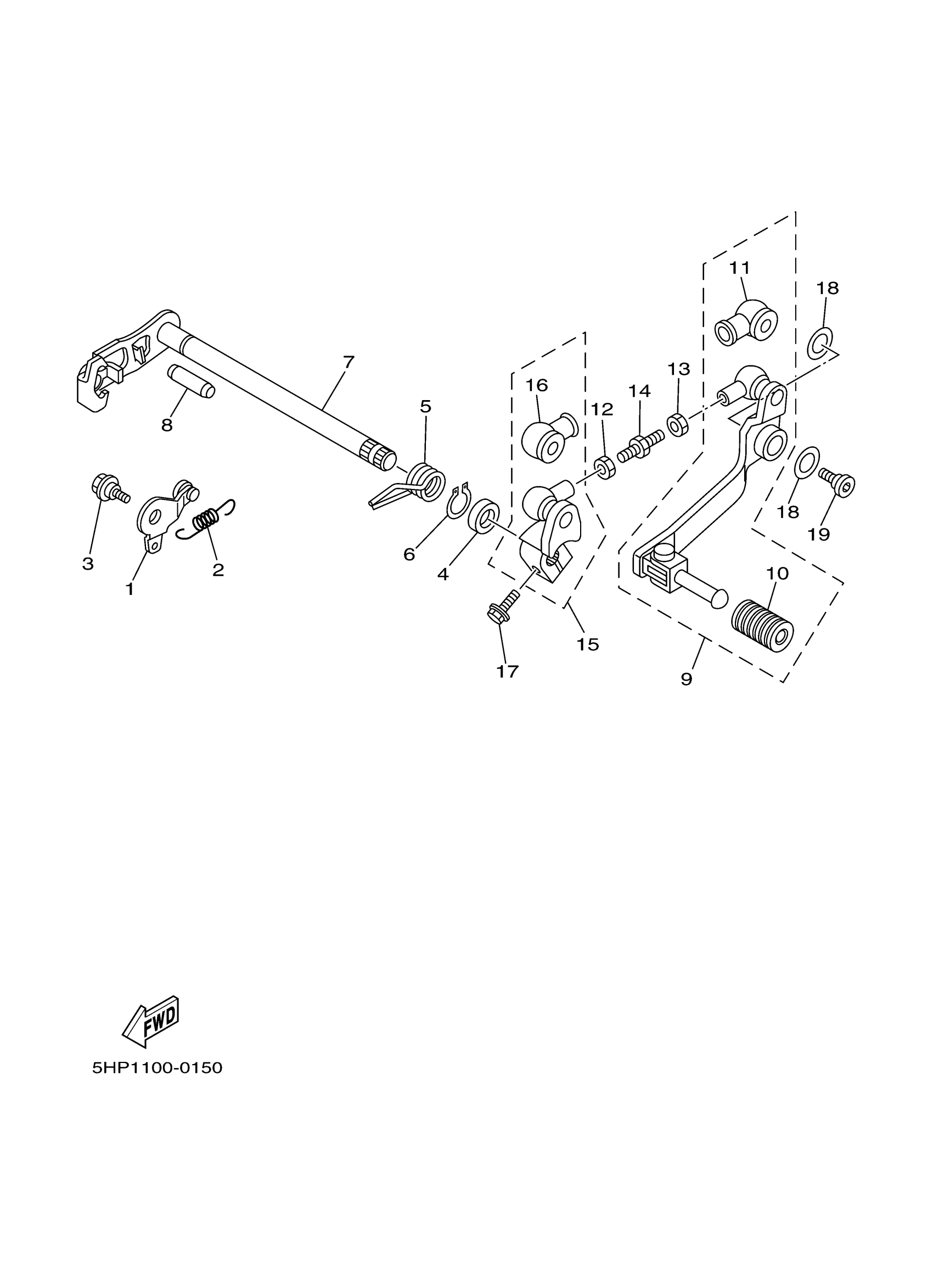

Yamaha TTR125LER (TTR125LE) 5HPM 2003 SHIFT SHAFT Diagram

#

Description
Price

1

STOPPER LEVER ASSY

5AP-18140-00-00

Unavailable

2

SPRING

5AP-18337-00-00

Unavailable

3

BOLT

90109-06190-00

$4.72

4

OIL SEAL

93101-12173-00

$13.49

5

SPRING, TORSION(17W)

90508-32642-00

$9.49

6

CIRCLIP

99006-10600-00

$9.49

7

SHIFT SHAFT ASSY

5AP-18101-01-00

$51.99

8

PIN, DOWEL

93608-30152-00

Unavailable

9

SHIFT PEDAL ASSY

5HP-18110-00-00

$83.99

10

COVER, CHANGE PEDAL

1W6-18113-00-00

$5.49

11

COVER, DUST

2H9-18154-00-00

$5.49

12

NUT

9538R-06700-00

Unavailable

13

NUT (2H9)

90170-06228-00

$9.49

14

ROD, SHIFT

2KW-18115-00-00

Unavailable

15

ARM, SHIFT

5HP-18112-00-00

Unavailable

16

COVER, DUST

2H9-18154-00-00

$5.49

17

BOLT, FLANGE

95817-06020-00

Unavailable

18

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

19

BOLT(3XP)

90109-065F3-00

Unavailable
