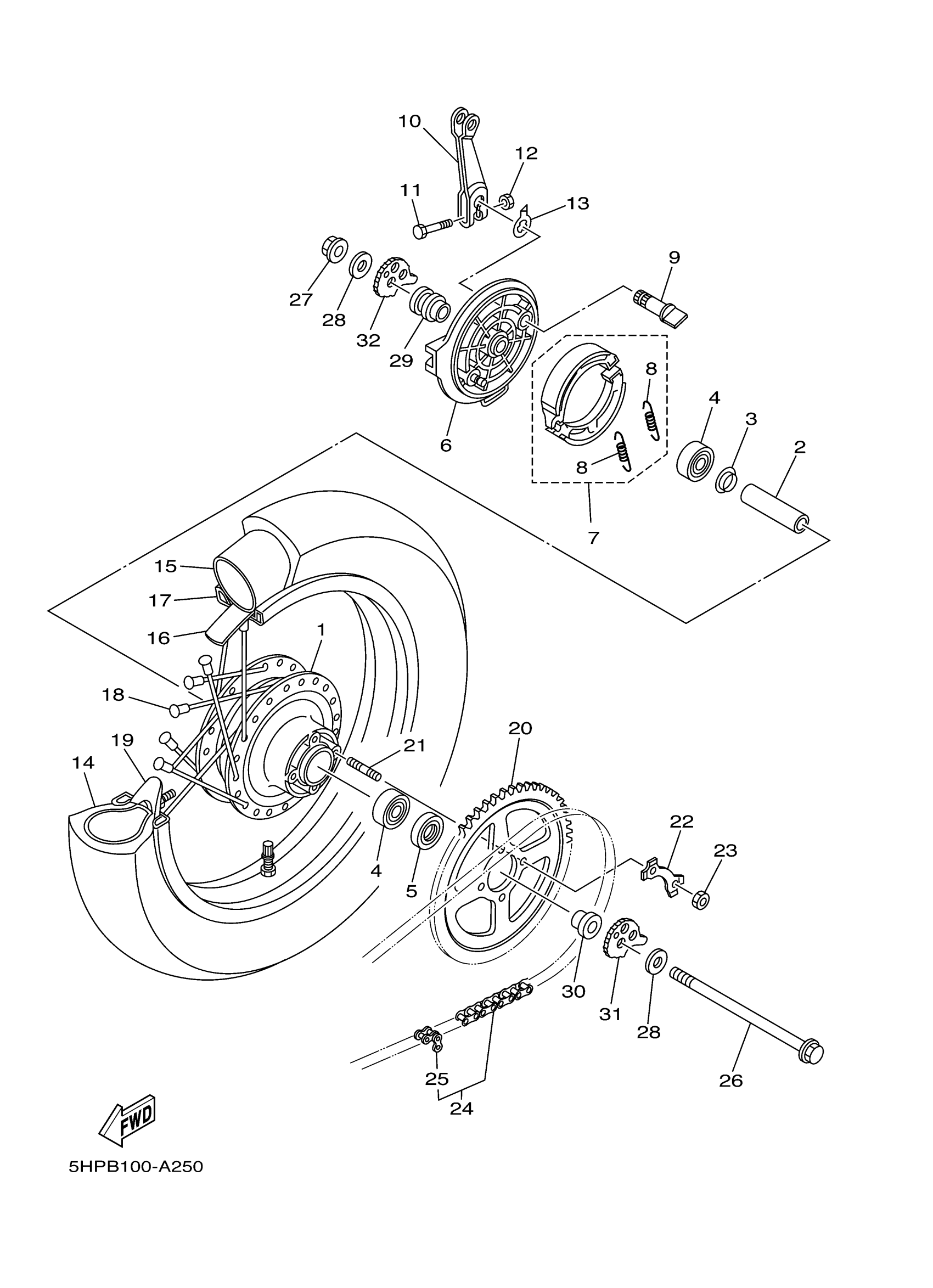

Yamaha TTR125LER (TTR125LE) 5HPM 2003 REAR WHEEL Diagram
#
1
HUB, REAR
5HP-25311-10-00
Unavailable
6
PLATE, BRAKE SHOE
5HP-25321-00-00
Unavailable
12
NUT
95317-17660-00
Unavailable
14
TIRE (90/100-14 49M)
94109-14008-00
Unavailable
14
TIRE (90/100-16 52M IX05H)
94109-16008-00
Unavailable
15
TUBE (90/100-14 TR6) CS
94235-14800-00
Unavailable
15
TUBE
94209-16003-00
Unavailable
16
BAND, RIM (1K8)
94327-14076-00
Unavailable
16
BAND, RIM
94330-16058-00
Unavailable
17
RIM (1.60-14)
94416-14002-00
Unavailable
17
RIM (1.60-16)
94416-16003-00
Unavailable
18
SPOKE SET
538-25304-10-00
Unavailable
18
SPOKE SET, REAR
5HP-25304-00-00
Unavailable
19
SPACER, BEAD
5X2-25394-00-00
Unavailable
20
SPROCKET, DRIVEN (49T)
5HP-25449-20-00
Unavailable
20
SPROCKET, DRIVEN (54T)
5HP-25454-20-00
Unavailable
21
BOLT, STUD
90116-10013-00
Unavailable
22
WASHER
10V-25412-00-00
Unavailable
23
NUT
90170-10206-00
Unavailable
24
CHAIN
9Y582-51115-00
Unavailable
24
CHAIN
9Y582-51121-00
Unavailable
25
JOINT, CHAIN
94682-51001-00
Unavailable
26
AXLE, WHEEL
5HN-25381-00-00
Unavailable
26
AXLE, WHEEL
5HP-25381-00-00
Unavailable
27
NUT, U FLANGE
95607-12200-00
Unavailable
28
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
29
COLLAR, WHEEL
5HP-25383-00-00
Unavailable
30
COLLAR (40E)
90387-127E0-00
Unavailable
31
PULLER, CHAIN 1
5HP-25388-00-00
Unavailable
32
PULLER, CHAIN 2
5HP-25389-00-00
Unavailable
