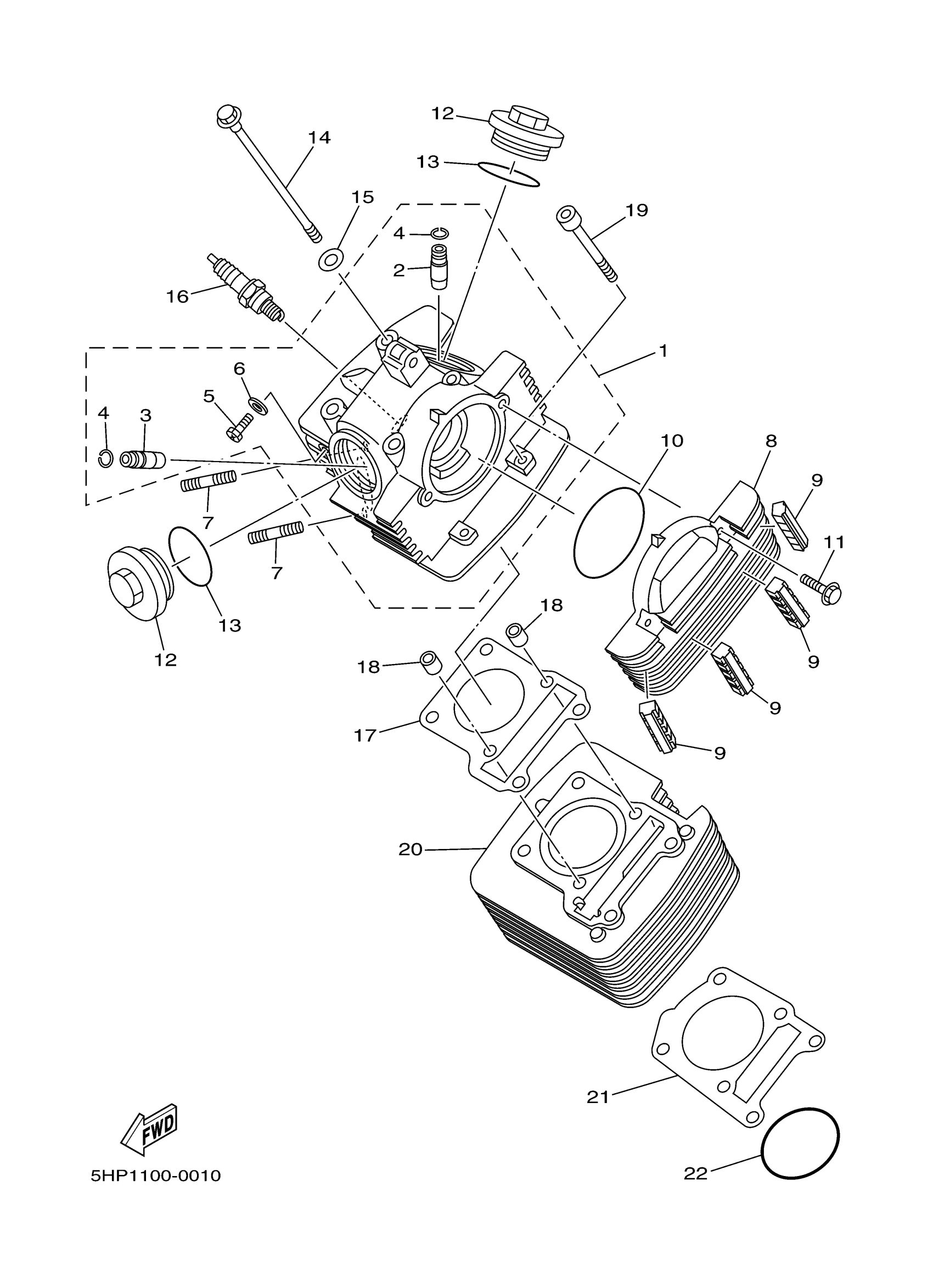

Yamaha TTR125LER (TTR125LE) 5HPM 2003 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5HP-11111-00-00

Unavailable

2

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$42.23

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$71.87

4

CIRCLIP (22F)

93440-10109-00

$5.29

5

SCREW

90153-06029-00

$7.94

6

GASKET 256113960000

90430-06014-00

Unavailable

7

BOLT, STUD(2NL)

90116-06503-00

$7.03

8

COVER, CYLINDER HEAD SIDE 1

5HH-11185-00-00

Unavailable

9

ABSORBER 1

5HP-11161-00-00

Unavailable

10

O-RING (5G2)

93210-71462-00

$13.97

11

. BOLT, FLANGE

95027-06020-00

$0.93

12

COVER, CYLINDER HEAD SIDE 2

22F-11186-10-00

$17.22

13

O-RING(55X)

93210-44704-00

$5.34

14

BOLT, WASHER BASED

90105-08724-00

$9.25

15

WASHER, PLATE

90201-080L7-00

$3.19

16

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

$3.77

17

GASKET, CYLINDER HEAD 1

5AP-11181-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

BOLT, SOCKET

91317-06090-00

Unavailable

20

CYLINDER

5HH-E1310-10-C0

Unavailable

21

GASKET, CYLINDER

5HP-11351-00-00

Unavailable

22

O-RING

93210-57634-00

Unavailable
