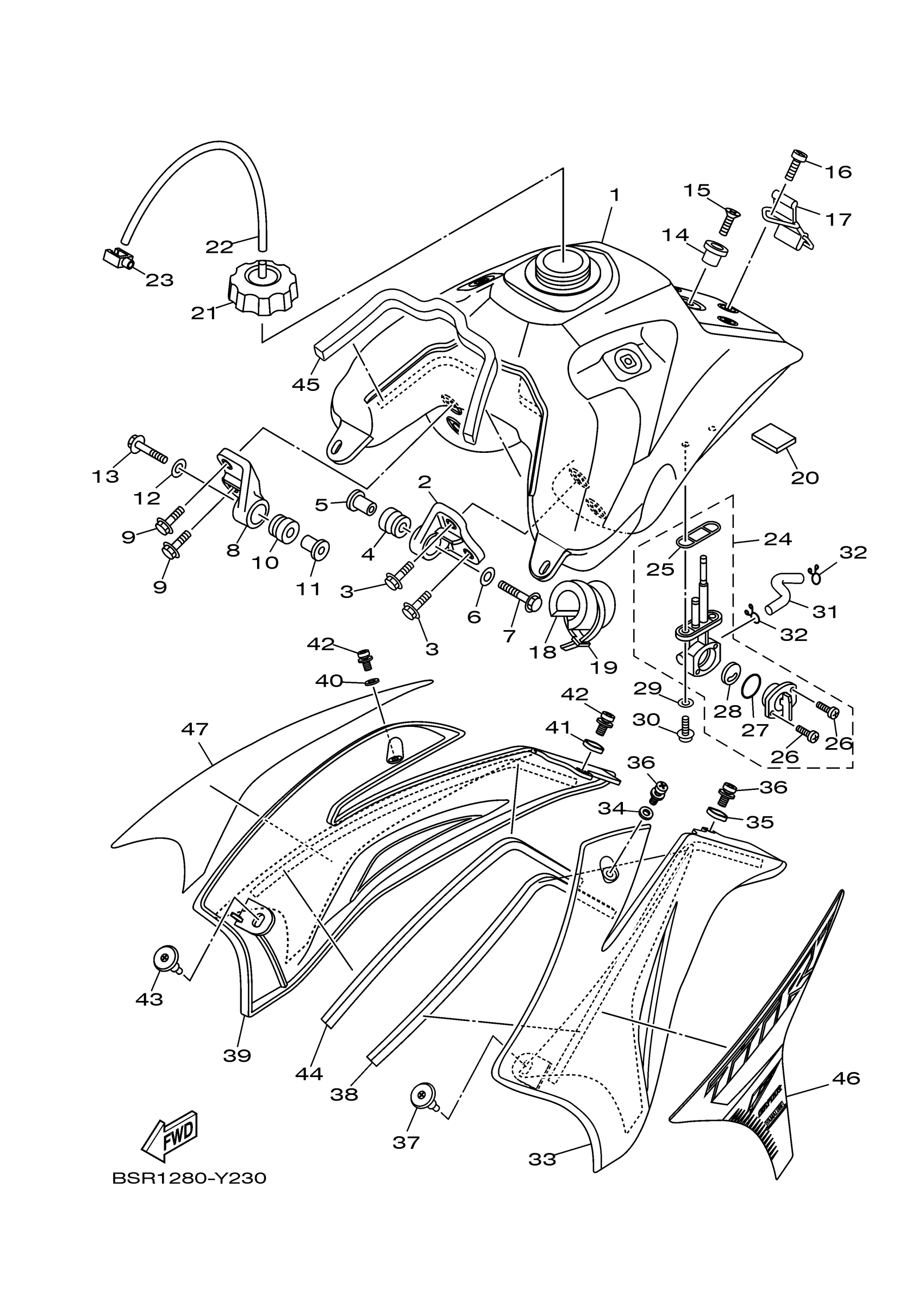

Yamaha TTR125LEPC (TTR125LE CA) BSR2 2023 FUEL TANK Diagram
#
16
SCREW, BINDING
98907-06016-00
Unavailable
17
BAND, TANK FITTING 1
3SP-24173-00-00
Unavailable
18
DAMPER, SIDE COVER
1B2-F4145-01-00
Unavailable
19
CLAMP
90464-70800-00
Unavailable
20
DAMPER 1
1B2-F8415-00-00
Unavailable
21
CAP ASSY
2FJ-24610-20-00
Unavailable
22
PIPE, BREATHER
5B6-21826-10-00
Unavailable
23
CLAMP
90464-13003-00
Unavailable
24
FUEL COCK ASSY 1
4X8-24500-10-00
Unavailable
25
O-RING
4X8-24512-10-00
Unavailable
26
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
27
SEAL, COCK
3AJ-24534-10-00
Unavailable
28
VALVE PACKING
3AC-24523-00-00
Unavailable
29
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
30
SCREW 256241430000
90149-06011-00
Unavailable
31
HOSE
90445-10829-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
SCOOP, AIR 1 DPBSE
1B2-F137W-10-00
Unavailable
34
COLLAR(3HN)
90387-060T4-00
Unavailable
35
COLLAR
1B2-F1749-00-00
Unavailable
36
SCREW, WITH WASHER(3YJ)
90159-06182-00
Unavailable
37
RIVET(4JH)
90269-07076-00
Unavailable
38
DAMPER, PLATE 1
1B2-F414H-00-00
Unavailable
39
SCOOP, AIR 2 DPBSE
1B2-F137X-10-00
Unavailable
40
COLLAR(3HN)
90387-060T4-00
Unavailable
41
COLLAR
1B2-F1749-00-00
Unavailable
42
SCREW, WITH WASHER(3YJ)
90159-06182-00
Unavailable
43
RIVET(4JH)
90269-07076-00
Unavailable
44
DAMPER, PLATE 1
1B2-F414H-00-00
Unavailable
45
DAMPER, PLATE 1
1S4-2414H-00-00
Unavailable
46
GRAPHIC 1
BSR-F137N-00-00
Unavailable
47
GRAPHIC 2
BSR-F137P-00-00
Unavailable
