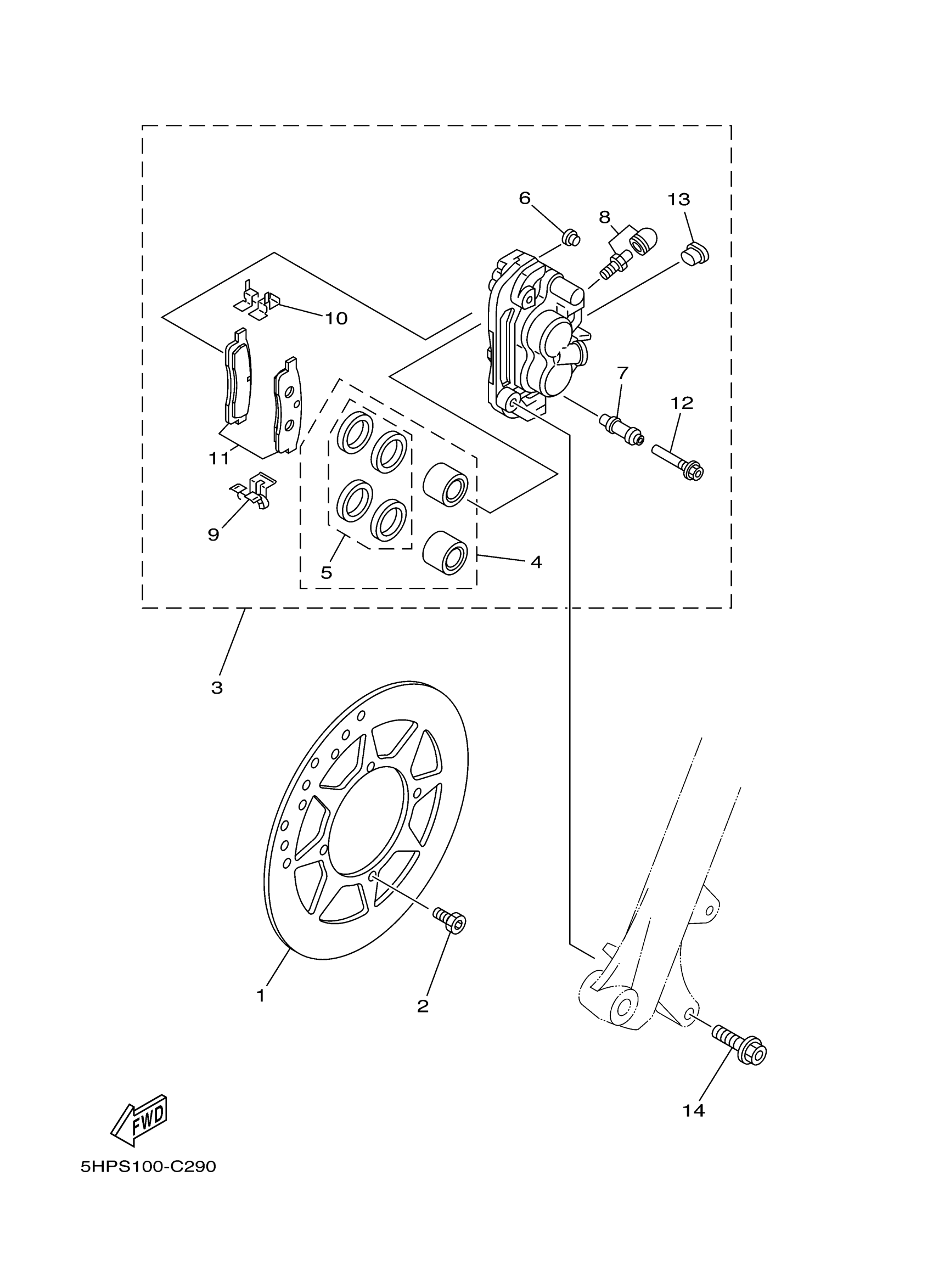

Yamaha TTR125LEPC (TTR125LE CA) BSR2 2023 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

3UN-2582T-00-00

Unavailable

2

BOLT SPECIAL SHAPE M6

90109-06815-00

$1.45

3

CALIPER ASSY (LEFT)

3UN-2580T-00-00

$390.37

4

PISTON ASSY, CALIPER

4ES-W0057-10-00

$99.76

5

CALIPER SEAL KIT

4ES-25803-10-00

$55.30

6

BOOT 2

5R2-25937-00-00

$30.21

7

BOOT 2

56A-25937-00-00

$19.67

8

BLEED SCREW KIT

15B-W0048-00-00

$16.89

9

SUPPORT, PAD

56A-25919-00-00

$29.63

10

SUPPORT, PAD

56A-25919-10-00

$26.34

11

BRAKE PAD KIT

3UN-W0045-00-00

$38.75

12

BOLT

56A-25926-00-00

$10.79

13

CAP, INDICATOR

34X-25845-00-00

$14.12

14

BOLT, WASHER BASED (11H)

90105-08211-00

$2.17
