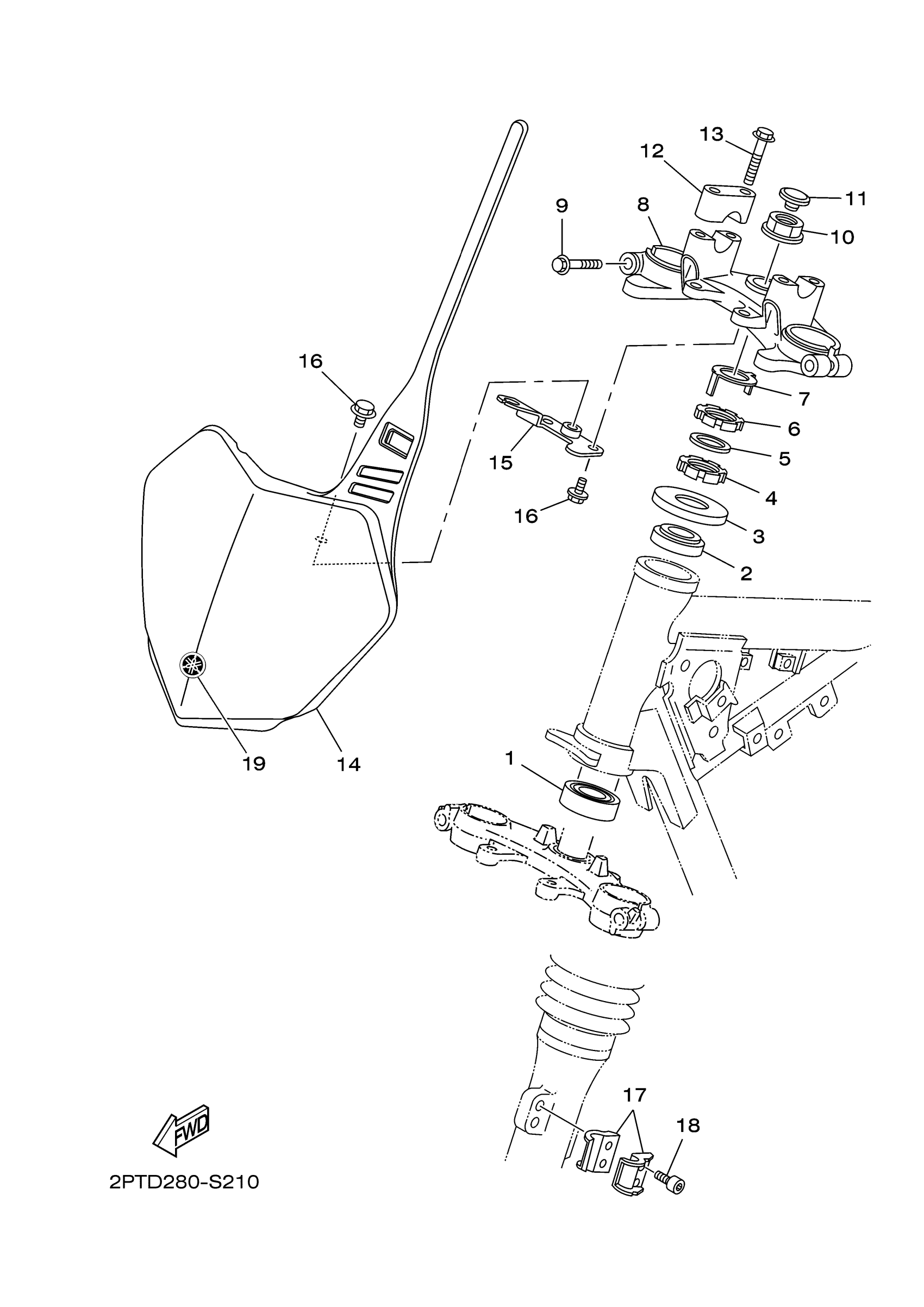

Yamaha TTR125LEP (TTR125LE) BSR1 2023 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$59.36

2

BEARING

93399-99949-00

$47.41

3

COVER, BALL RACE 2

5HP-23416-00-00

Unavailable

4

NUT

90179-25004-00

$19.41

5

WASHER, PLATE (26H)

90202-26142-00

$7.52

6

NUT

90179-25806-00

$5.92

7

WASHER, SPECIAL

1SK-F3418-00-00

$1.00

8

CROWN, HANDLE

1B2-F3435-10-00

Unavailable

9

BOLT, FLANGE(4MY)

95027-08035-00

$5.75

10

NUT (26H)

90179-22412-00

$17.61

11

CAP

1B2-F319U-00-00

$1.70

12

HOLDER, HANDLE UPPER

3V9-F3441-10-35

$11.47

13

BOLT, FLANGE(4MY)

95027-08035-00

$5.75

14

PLATE, NUMBER

1B2-F3485-20-00

$24.89

15

STAY, PLATE

1B2-F3486-00-00

$4.89

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

CLAMP (39E)

90465-14242-00

Unavailable

18

BOLT

9131M-06016-00

$0.55

19

MARK 1

4B4-F4235-20-00

Unavailable
