Description

Price

1

IGNITION COIL ASSY

4KJ-82310-13-00

$38.99

2

BOLT, FLANGE(JL8)

95880-06016-00

$4.55

3

PLUG CAP ASSY

4BP-82370-01-00

$35.99

4

NEUTRAL SWITCH ASSY

5HH-H2540-02-00

$17.99

5

GASKET

90430-09809-00

$0.33

6

C.D.I. UNIT ASSY

5HP-85540-01-00

Unavailable

7

BAND

1B2-H5546-00-00

$5.49

8

COVER, CONNECTER

1B2-H2599-00-00

Unavailable

9

HOSE, WITH SPRING

90447-19004-00

$7.99

10

WIRE HARNESS ASSY

19C-H2590-10-00

$140.99

11

CLAMP

90464-70800-00

$0.80

12

CLAMP(4HM)

90464-15192-00

$8.49

13

BAND

1UA-82591-00-00

$4.78

14

CLAMP

90464-13077-00

$8.49

15

CLAMP(4FM)

90464-15195-00

$4.41

16

MAIN SWITCH ASSY

5HP-82510-01-00

Unavailable

17

CAP, KEY

3HN-82579-00-00

Unavailable

18

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

18

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

4CK-81960-01-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

21

BATTERY ASSY (GT4L-BS)

GTX-4LBS0-00-00

Unavailable

22

STARTER RELAY ASSY (RC19-028)

5HH-81940-02-00

Unavailable

23

FUSE (10A)

42X-82151-00-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

25

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

26

WIRE, PLUS LEAD

1B2-H2115-00-00

Unavailable

27

WIRE, MINUS LEAD

1B2-H2116-00-00

Unavailable

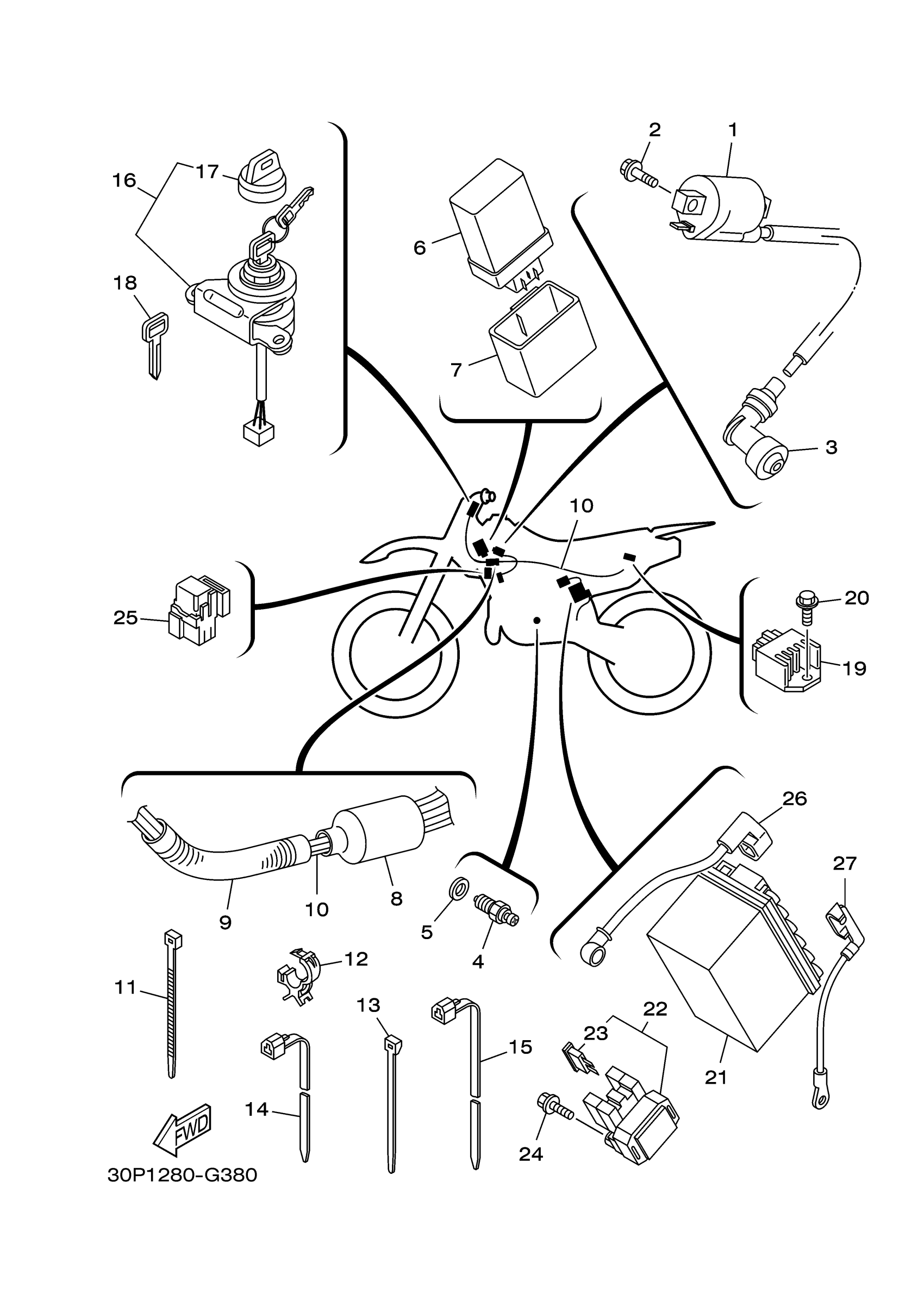

Yamaha TTR125LEP (TTR125LE) BSR1 2023 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

BOLT, FLANGE(JL8)

PLUG CAP ASSY

NEUTRAL SWITCH ASSY

GASKET

C.D.I. UNIT ASSY

BAND

COVER, CONNECTER

HOSE, WITH SPRING

WIRE HARNESS ASSY

CLAMP

CLAMP(4HM)

BAND

CLAMP

CLAMP(4FM)

MAIN SWITCH ASSY

CAP, KEY

KEY, BLANK (A-TYPE)

KEY, BLANK (B-TYPE)

RECTIFIER & REGULATOR ASSY

BOLT, FLANGE(4MY)

BATTERY ASSY (GT4L-BS)

STARTER RELAY ASSY (RC19-028)

FUSE (10A)

BOLT, SMALL FLANGE

RELAY ASSY (8DM-00)

WIRE, PLUS LEAD

WIRE, MINUS LEAD
