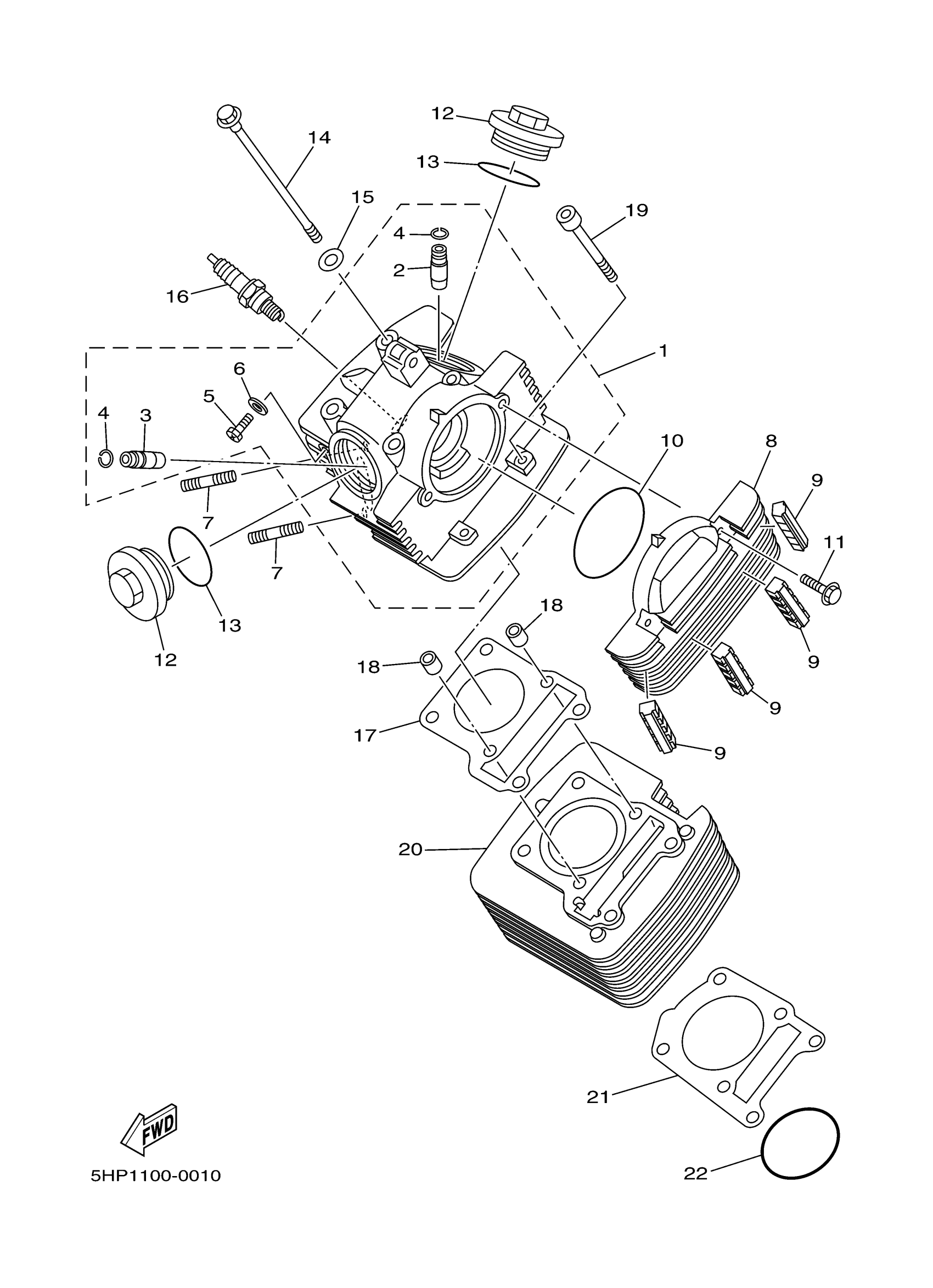

Yamaha TTR125LEP (TTR125LE) BSR1 2023 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5RR-E1111-10-00

$346.99

2

GUIDE, INTAKE VALVE

2UJ-11133-10-00

$51.99

3

GUIDE, EXHAUST VALVE (1ST O/S)

22F-11134-10-00

$88.99

4

CIRCLIP (22F)

93440-10109-00

$8.49

5

SCREW, HEXAGON

90153-06803-00

$0.43

6

GASKET 256113960000

90430-06014-00

Unavailable

7

BOLT, STUD(2NL)

90116-06503-00

$8.49

8

COVER, CYLINDER HE

5VL-E1185-40-00

$49.99

9

ABSORBER

5HH-E1161-00-00

$1.07

10

O-RING (2H7)

93210-77363-00

$12.49

11

SCREW, PAN

98517-06020-00

$8.49

12

COVER, CYLINDER HEAD SIDE 2

5HH-E1186-00-00

Unavailable

13

O-RING(55X)

93210-44704-00

$7.49

14

BOLT, WASHER BASED

90105-08724-00

$11.49

15

WASHER, PLATE

90201-080L7-00

$4.82

16

CR7HSA NGK SPLUG 4PK

CR7-HSA00-00-00

Unavailable

17

GASKET, CYLINDER HEAD 1

5HH-E1181-00-00

Unavailable

18

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-06W02-00

Unavailable

20

CYLINDER

5HH-E1310-10-C0

Unavailable

21

GASKET, CYLINDER 1

5HH-E1351-00-00

Unavailable

22

O-RING

93210-57634-00

Unavailable
