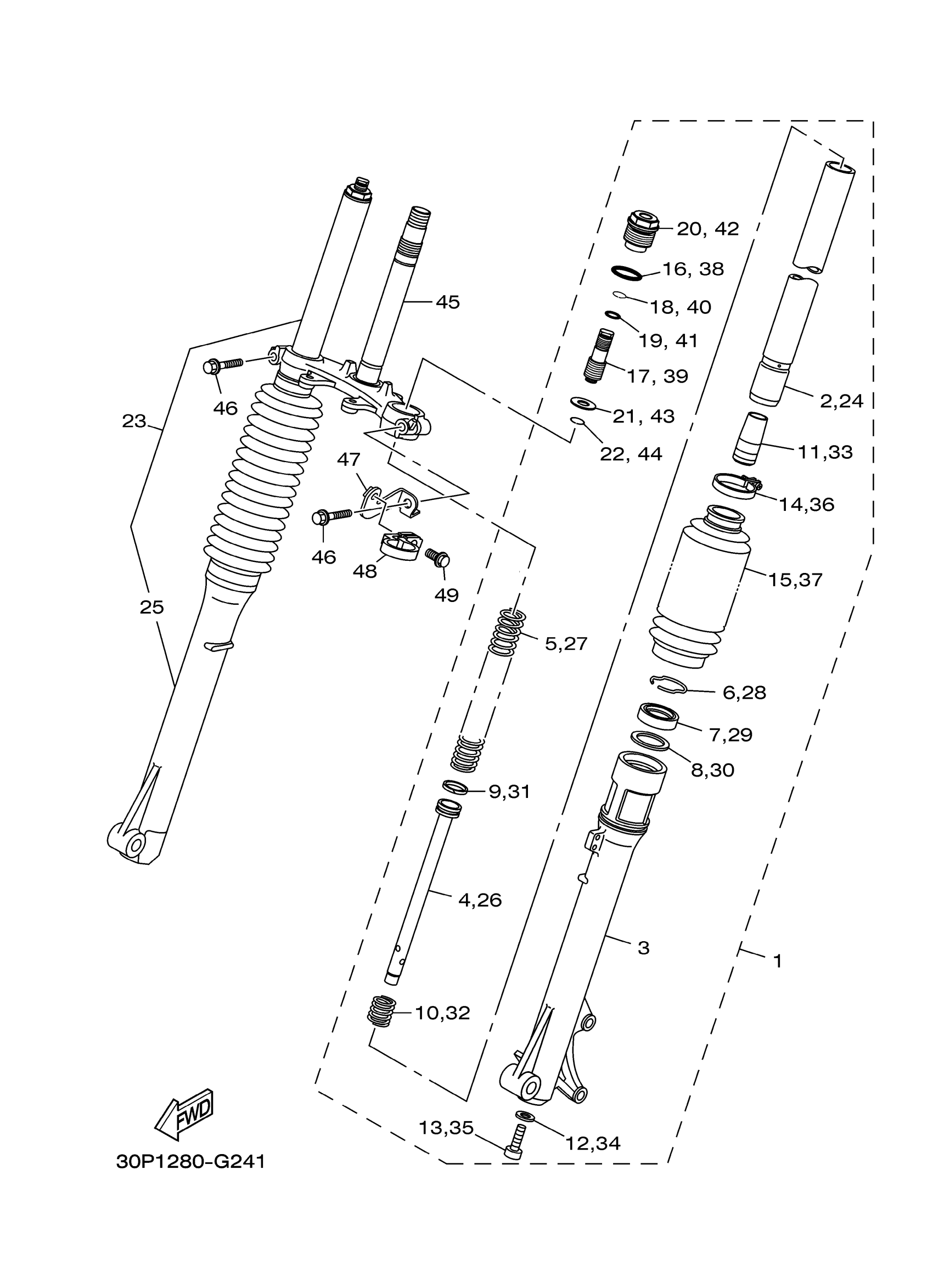

Yamaha TTR125LEL (TTR125LE) 2PTK 2020 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

1B2-F3102-21-00

Unavailable

2

INNER TUBE COMP.1

1B2-F3110-10-00

$324.99

3

TUBE, OUTER (L.H)

1B2-F3126-11-00

Unavailable

4

. PISTON, FRONT FORK

1B2-F3171-00-00

Unavailable

5

SPRING, FRONT FORK

1B2-F3351-20-00

Unavailable

6

CLIP, OIL SEAL

2A6-F3156-00-00

$3.23

7

OIL SEAL

5B6-23145-00-00

$24.99

8

WASHER, OIL SEAL

5B6-23146-00-00

$11.99

9

. RING, PISTON

1E7-F3157-00-00

Unavailable

10

SPRING, REBOUND

1B2-F3151-00-00

$5.60

11

. SPACER, OIL LOCK

1B2-F3166-00-00

Unavailable

12

GASKET, DRAIN PLUG

3MA-F3129-00-00

$3.23

13

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$9.49

14

BAND

1B2-23192-00-00

$15.49

15

BOOT

1B2-23191-00-00

$43.99

16

OIL SEAL

1L9-23145-00-00

Unavailable

17

BOLT, CAP

1B2-23111-00-00

Unavailable

18

CIRCLIP

1B2-23183-20-00

Unavailable

19

O-RING

93210-08003-00

Unavailable

20

FORK BOLT

1B2-2311H-00-00

Unavailable

21

SEAT, SPRING UPPER

1B2-23142-00-00

Unavailable

22

RING, SNAP

1B2-23153-20-00

Unavailable

23

FRONT FORK ASSY (R

1B2-F3103-21-00

Unavailable

24

INNER TUBE COMP.1

1B2-F3110-10-00

$324.99

25

TUBE, OUTER 2

1B2-F3136-10-00

Unavailable

26

. PISTON, FRONT FORK

1B2-F3171-00-00

Unavailable

27

SPRING, FRONT FORK

1B2-F3351-20-00

Unavailable

28

CLIP, OIL SEAL

2A6-F3156-00-00

$3.23

29

OIL SEAL

5B6-23145-00-00

$24.99

30

WASHER, OIL SEAL

5B6-23146-00-00

$11.99

31

. RING, PISTON

1E7-F3157-00-00

Unavailable

32

SPRING, REBOUND

1B2-F3151-00-00

$5.60

33

. SPACER, OIL LOCK

1B2-F3166-00-00

Unavailable

34

GASKET, DRAIN PLUG

3MA-F3129-00-00

$3.23

35

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$9.49

36

BAND

1B2-23192-00-00

$15.49

37

BOOT

1B2-23191-00-00

$43.99

38

OIL SEAL

1L9-23145-00-00

Unavailable

39

BOLT, CAP

1B2-23111-00-00

Unavailable

40

CIRCLIP

1B2-23183-20-00

Unavailable

41

O-RING

93210-08003-00

Unavailable

42

FORK BOLT

1B2-2311H-00-00

Unavailable

43

SEAT, SPRING UPPER

1B2-23142-00-00

Unavailable

44

RING, SNAP

1B2-23153-20-00

Unavailable

45

UNDER BRACKET COMP.

1B2-F3340-00-35

Unavailable

46

BOLT, FLANGE

90105-10304-00

Unavailable

47

BRACKET 1

1B2-F334G-00-00

Unavailable

48

GUIDE, CABLE

1C6-F3389-00-00

Unavailable

49

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable
