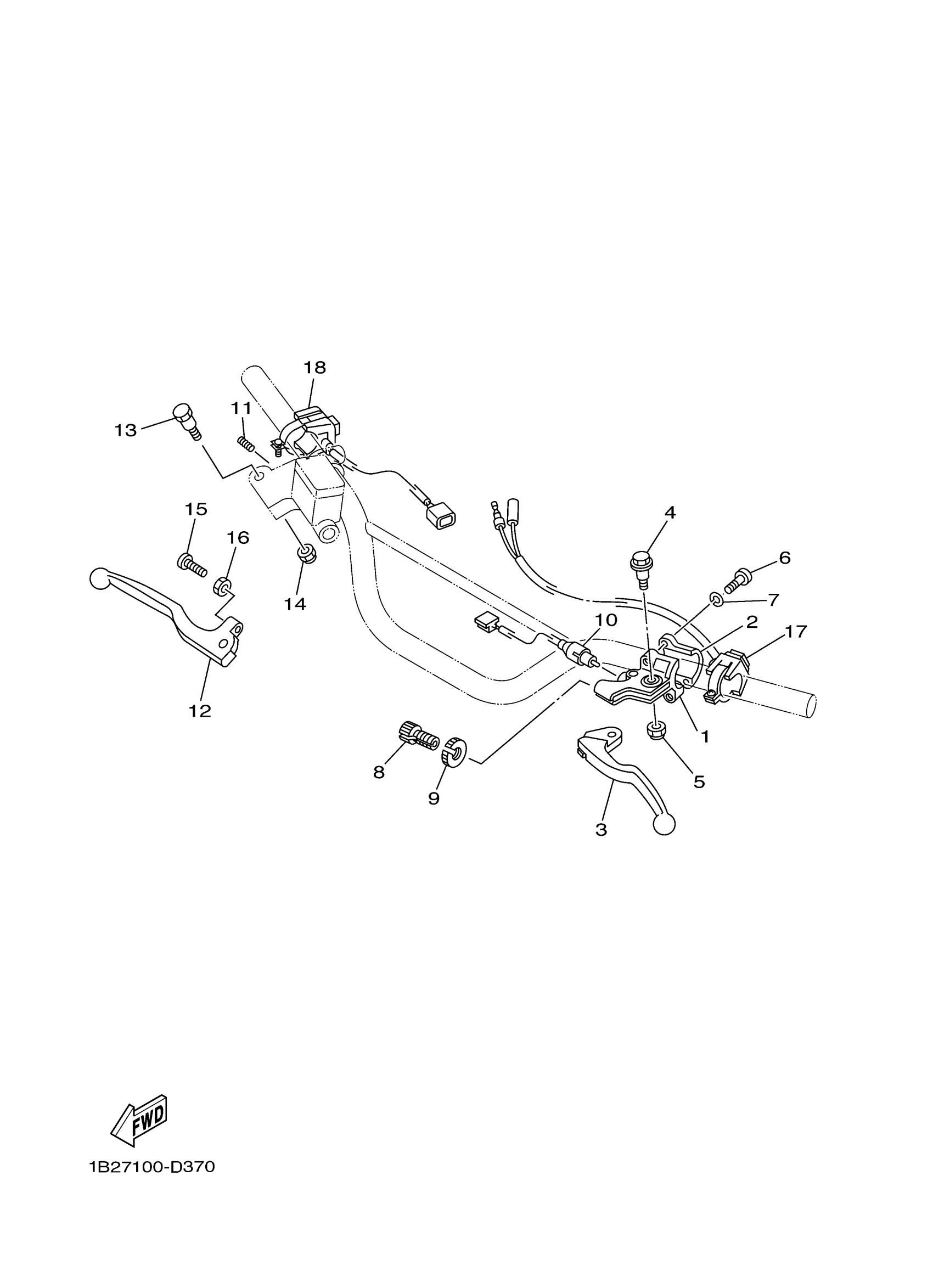

Yamaha TTR125LEH (TTR125LE) 2PTA 2017 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER LEVER 1

2TY-H2911-00-00

$18.80

2

HOLDER, LEVER LOWER 1

1B2-H2913-00-00

$3.52

3

LEVER 1

4GY-83912-00-00

$24.07

4

BOLT, LEVER

4LR-H3945-00-00

$1.41

5

NUT SELF LOCKING

90185-06802-00

$1.09

6

SCREW, PAN HEAD

98517-05020-00

$1.26

7

WASHER(3SX)

92907-05100-00

$5.76

8

BOLT

90123-08002-00

$8.57

9

NUT

90179-08030-00

$3.63

10

SWITCH

19D-82917-00-00

$44.09

11

SPRING, COMPRESSION(3RB)

90501-061G2-00

$1.98

12

LEVER 2

1B2-H3922-10-00

$13.70

13

BOLT (4L0)

90109-06577-00

$5.03

14

NUT SELF LOCKING

90185-06802-00

$1.09

15

SCREW, HEXAGON(4EW)

90143-06024-00

$7.71

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SWITCH, HANDLE 1

5HP-83976-22-00

Unavailable

18

SWITCH, HANDLE 1

5HP-83976-12-00

Unavailable
