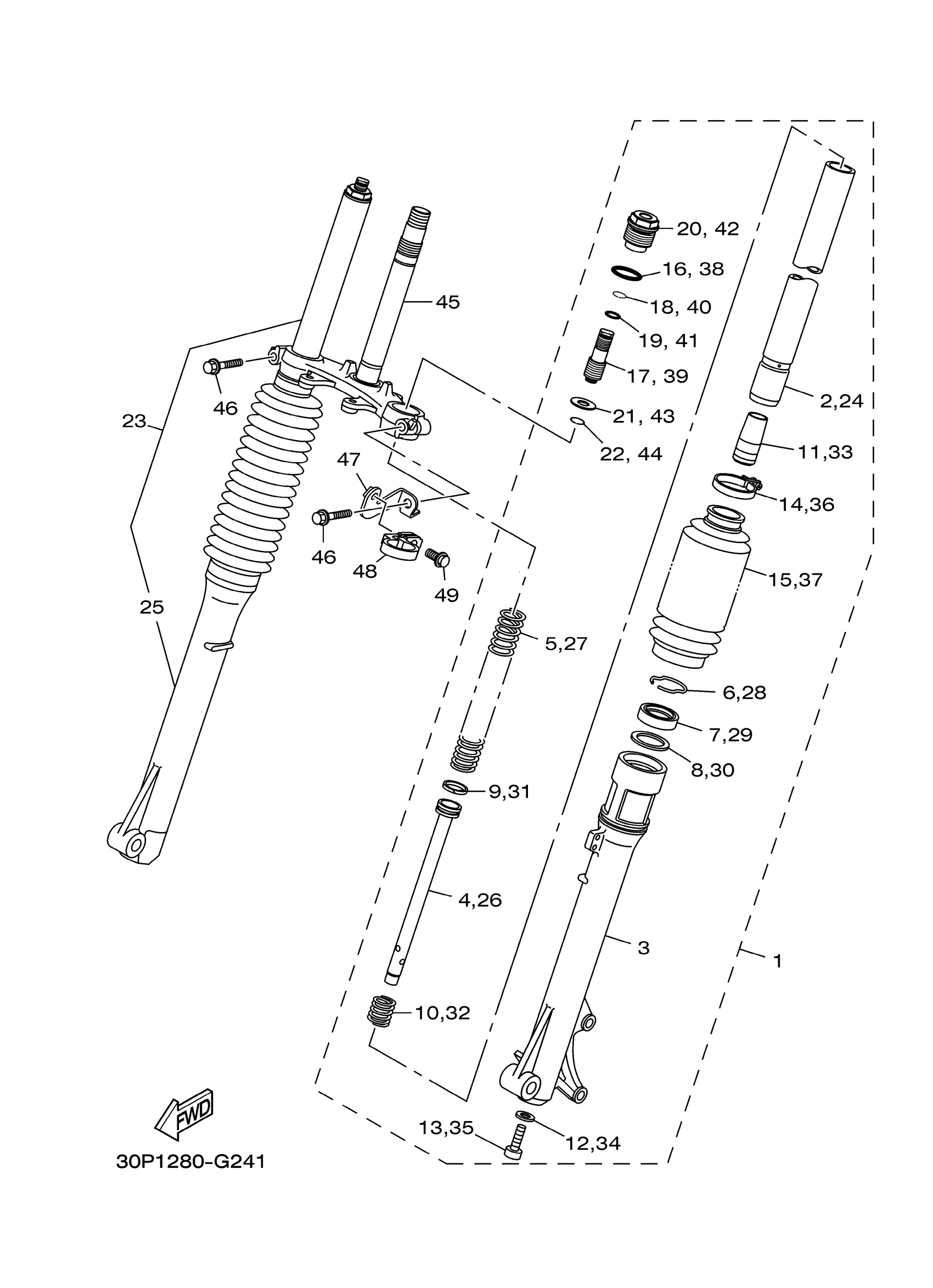

Yamaha TTR125LED (TTR125LE) 19CV 2013 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

1B2-F3102-21-00

Unavailable

2

INNER TUBE COMP.1

1B2-F3110-10-00

$187.06

3

TUBE, OUTER (L.H)

1B2-F3126-11-00

Unavailable

4

. PISTON, FRONT FORK

1B2-F3171-00-00

$51.77

5

SPRING, FRONT FORK

1B2-F3351-20-00

Unavailable

6

CLIP, OIL SEAL

2A6-F3156-00-00

$2.65

7

OIL SEAL

5B6-23145-00-00

$20.00

8

WASHER, OIL SEAL

5B6-23146-00-00

$8.45

9

. RING, PISTON

1E7-F3157-00-00

$2.27

10

SPRING, REBOUND

1B2-F3151-00-00

$4.41

11

. SPACER, OIL LOCK

1B2-F3166-00-00

$9.67

12

GASKET, DRAIN PLUG

3MA-F3129-00-00

$2.73

13

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$7.65

14

BAND

1B2-23192-00-00

$13.56

15

BOOT

1B2-23191-00-00

$35.56

16

OIL SEAL

1L9-23145-00-00

Unavailable

17

BOLT, CAP

1B2-23111-00-00

Unavailable

18

CIRCLIP

1B2-23183-20-00

Unavailable

19

O-RING

93210-08003-00

Unavailable

20

FORK BOLT

1B2-2311H-00-00

Unavailable

21

SEAT, SPRING UPPER

1B2-23142-00-00

Unavailable

22

RING, SNAP

1B2-23153-20-00

Unavailable

23

FRONT FORK ASSY (R

1B2-F3103-21-00

Unavailable

24

INNER TUBE COMP.1

1B2-F3110-10-00

$187.06

25

TUBE, OUTER 2

1B2-F3136-10-00

Unavailable

26

. PISTON, FRONT FORK

1B2-F3171-00-00

$51.77

27

SPRING, FRONT FORK

1B2-F3351-20-00

Unavailable

28

CLIP, OIL SEAL

2A6-F3156-00-00

$2.65

29

OIL SEAL

5B6-23145-00-00

$20.00

30

WASHER, OIL SEAL

5B6-23146-00-00

$8.45

31

. RING, PISTON

1E7-F3157-00-00

$2.27

32

SPRING, REBOUND

1B2-F3151-00-00

$4.41

33

. SPACER, OIL LOCK

1B2-F3166-00-00

$9.67

34

GASKET, DRAIN PLUG

3MA-F3129-00-00

$2.73

35

BOLT, HEXAGON SOCKET HEAD

4B4-F3181-00-00

$7.65

36

BAND

1B2-23192-00-00

$13.56

37

BOOT

1B2-23191-00-00

$35.56

38

OIL SEAL

1L9-23145-00-00

Unavailable

39

BOLT, CAP

1B2-23111-00-00

Unavailable

40

CIRCLIP

1B2-23183-20-00

Unavailable

41

O-RING

93210-08003-00

Unavailable

42

FORK BOLT

1B2-2311H-00-00

Unavailable

43

SEAT, SPRING UPPER

1B2-23142-00-00

Unavailable

44

RING, SNAP

1B2-23153-20-00

Unavailable

45

UNDER BRACKET COMP.

1B2-F3340-00-35

Unavailable

46

BOLT, FLANGE

90105-10304-00

Unavailable

47

BRACKET 1

1B2-F334G-00-00

Unavailable

48

GUIDE, CABLE

1C6-F3389-00-00

Unavailable

49

BOLT, WITH WASHER(3RB)

90119-05193-00

Unavailable
