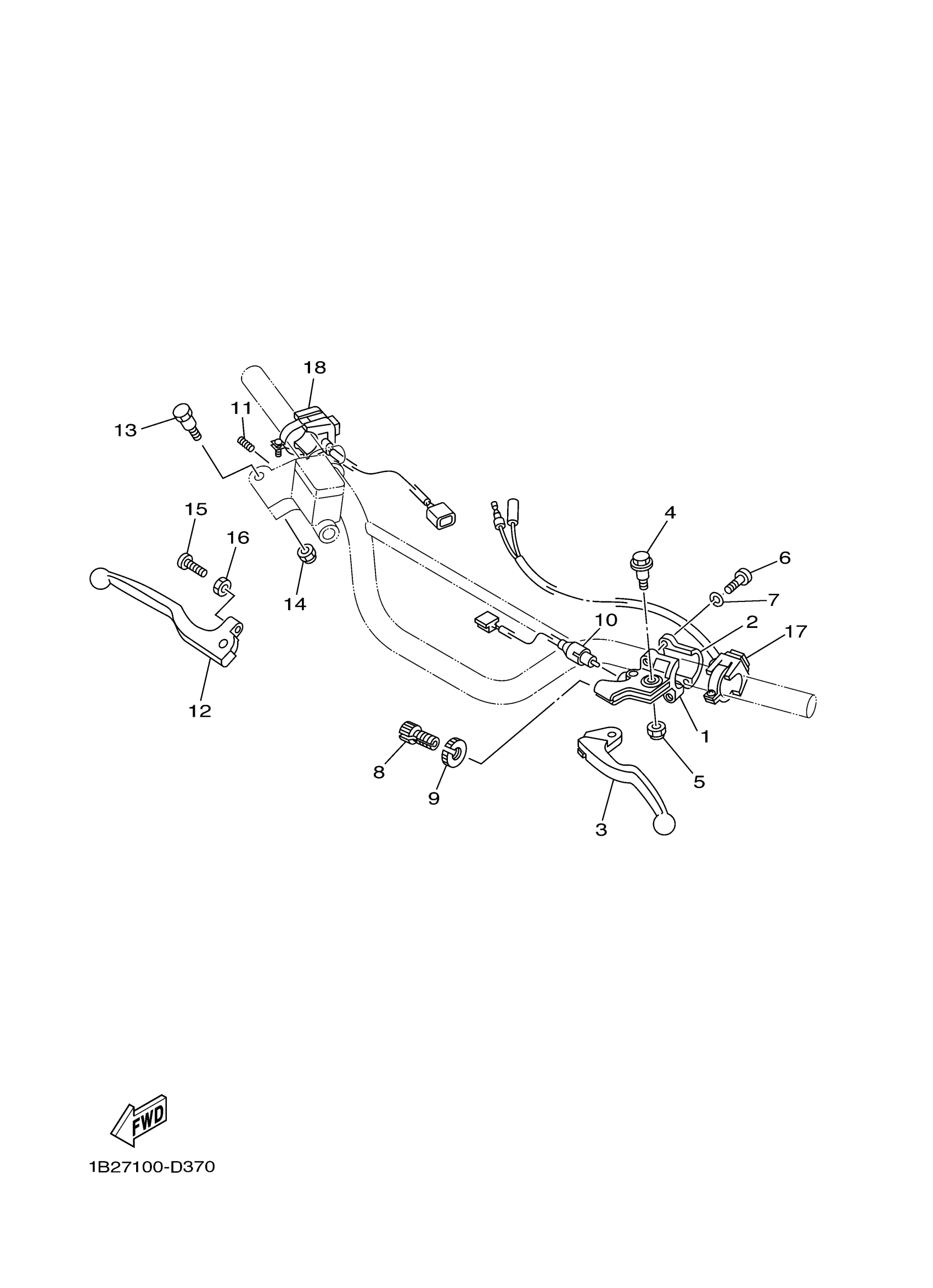

Yamaha TTR125LEB (TTR125LE) 19CS 2012 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER LEVER 1

2TY-H2911-00-00

$23.99

2

HOLDER, LEVER LOWER 1

1B2-H2913-00-00

$4.56

3

LEVER 1

4GY-83912-00-00

$28.99

4

BOLT, LEVER

4LR-H3945-00-00

$1.86

5

NUT SELF LOCKING

90185-06802-00

$1.11

6

SCREW, PAN HEAD

98517-05020-00

$4.25

7

WASHER(3SX)

92907-05100-00

$8.49

8

BOLT

90123-08002-00

$10.49

9

NUT

90179-08030-00

$5.49

10

SWITCH

19D-82917-00-00

$47.99

11

SPRING, COMPRESSION(3RB)

90501-061G2-00

$3.35

12

LEVER 2

1B2-H3922-10-00

$16.99

13

BOLT (4L0)

90109-06577-00

$5.60

14

NUT SELF LOCKING

90185-06802-00

$1.11

15

SCREW, HEXAGON(4EW)

90143-06024-00

$11.49

16

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

17

SWITCH, HANDLE 1

5HP-83976-22-00

Unavailable

18

SWITCH, HANDLE 1

5HP-83976-12-00

Unavailable
