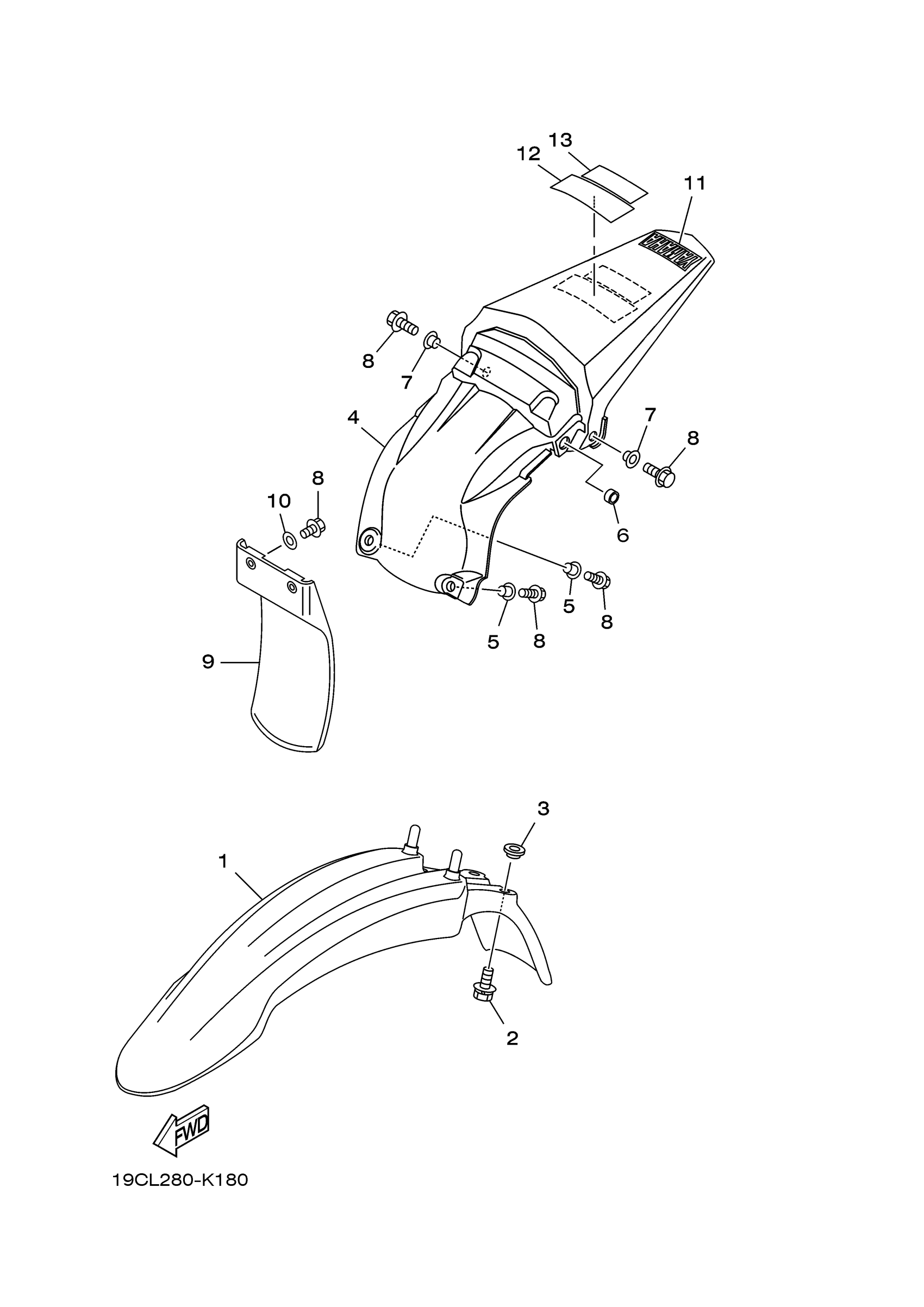

Yamaha TTR125LEA (TTR125LE) 19CL 2011 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY DPBSE

1B2-F1511-10-00

$36.19

2

BOLT, WITH WASHER (10V)

90119-06063-00

$5.86

3

WASHER (3R8)

90209-06187-00

$5.76

4

REAR FENDER ASSY

1B2-F1611-20-00

$72.81

5

COLLAR(3XJ)

90387-064X4-00

$5.03

6

COLLAR

90387-1001B-00

$2.88

7

COLLAR

90387-07023-00

$3.96

8

BOLT, FLANGE

95817-06016-00

$1.40

9

GUARD, FLAP

4ES-21642-01-00

$32.69

10

WASHER, PLATE

90201-06020-00

$5.86

11

EMBLEM, YAMAHA

1B2-F153E-10-00

$6.60

12

LABEL, CAUTION

3PT-2118K-A2-00

$4.40

13

LABEL 5

3XJ-2151H-A1-00

$6.29
