Description

Price

1

AXLE, MAIN (12T)

4S9-E7411-00-00

Unavailable

2

GEAR, 3RD PINION (21T)

5TP-E7131-00-00

Unavailable

3

GEAR, 4TH PINION (JUPITER Z)

5TP-E7141-00-00

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$9.49

5

CIRCLIP (525)

93410-20038-00

$3.76

6

GEAR, 2ND PINION (JUPITER Z)

5TP-E7121-00-00

Unavailable

7

WASHER PLATE 164185720000

90201-12166-00

$9.49

8

BEARING

93306-203YR-00

$38.99

9

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

10

DRIVE AXLE ASSY

5TP-E7402-00-00

Unavailable

11

WASHER PLATE 132172160000

90201-20266-00

$9.49

12

CIRCLIP (525)

93410-20038-00

$3.76

13

GEAR, 4TH WHEEL (JUPITER Z)

5TP-E7241-00-00

$98.99

14

GEAR, 3RD WHEEL (29T)

5TP-E7231-00-00

Unavailable

15

GEAR, 1ST WHEEL (30T/38T)

5TP-E7211-00-00

Unavailable

16

COLLAR

90387-1503D-00

Unavailable

17

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

18

CIRCLIP(1AR)

99009-15400-00

Unavailable

19

BEARING

93306-20203-00

Unavailable

20

BEARING

93306-254Y1-00

Unavailable

21

OIL SEAL (T105) L

93102-20892-00

Unavailable

22

SPROCKET, DRIVE (5B61)

93812-14814-00

Unavailable

23

CIRCLIP (525)

93410-20038-00

$3.76

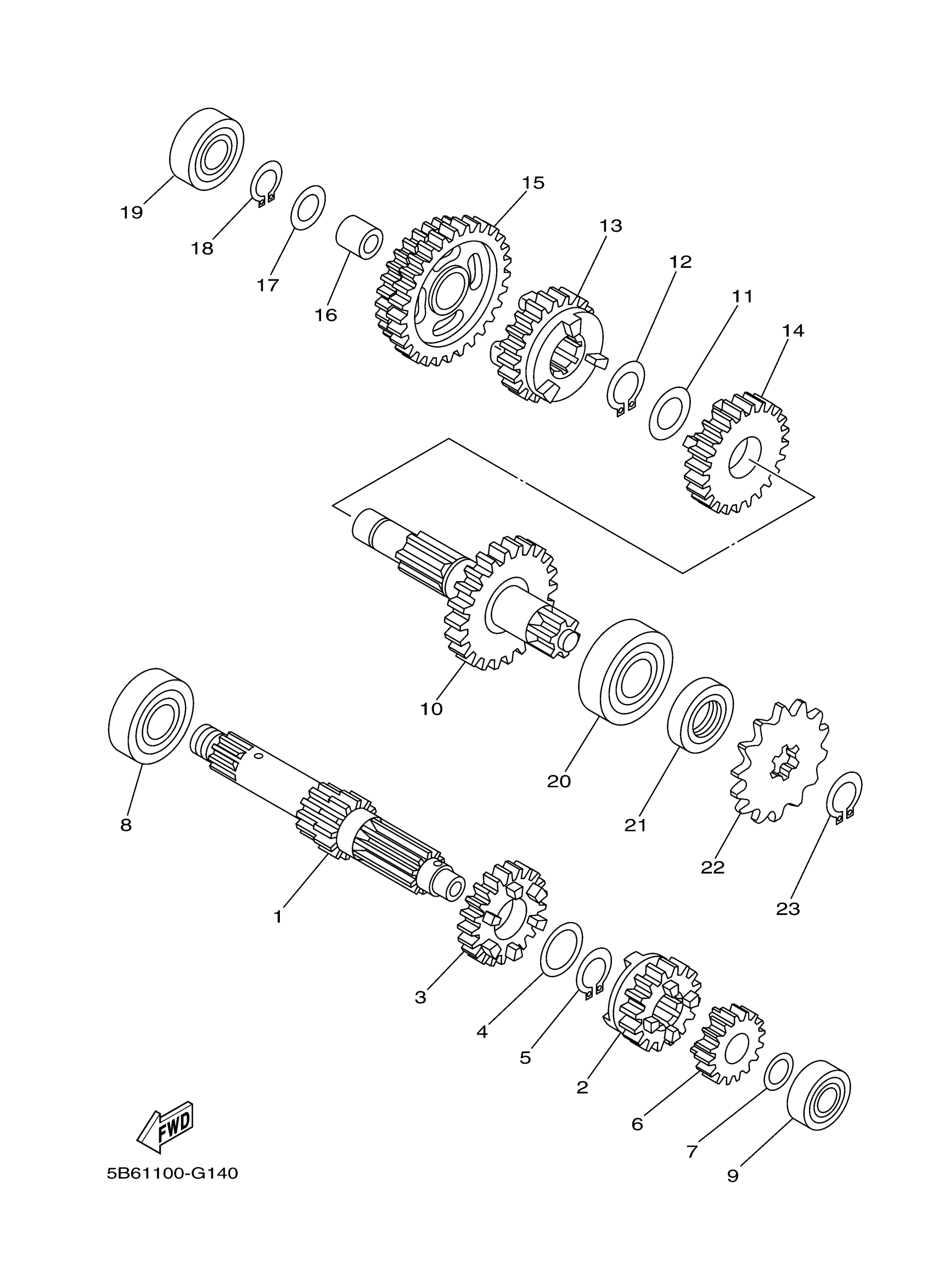

Yamaha TTR110EX (TTR110E) 5B61 2008 TRANSMISSION Diagram

AXLE, MAIN (12T)

GEAR, 3RD PINION (21T)

GEAR, 4TH PINION (JUPITER Z)

WASHER PLATE 132172160000

CIRCLIP (525)

GEAR, 2ND PINION (JUPITER Z)

WASHER PLATE 164185720000

BEARING

BRG,R-B 6001 28MM 28G KY

DRIVE AXLE ASSY

WASHER PLATE 132172160000

CIRCLIP (525)

GEAR, 4TH WHEEL (JUPITER Z)

GEAR, 3RD WHEEL (29T)

GEAR, 1ST WHEEL (30T/38T)

COLLAR

WASHER, PLATE (4L0)

CIRCLIP(1AR)

BEARING

BEARING

OIL SEAL (T105) L

SPROCKET, DRIVE (5B61)

CIRCLIP (525)
