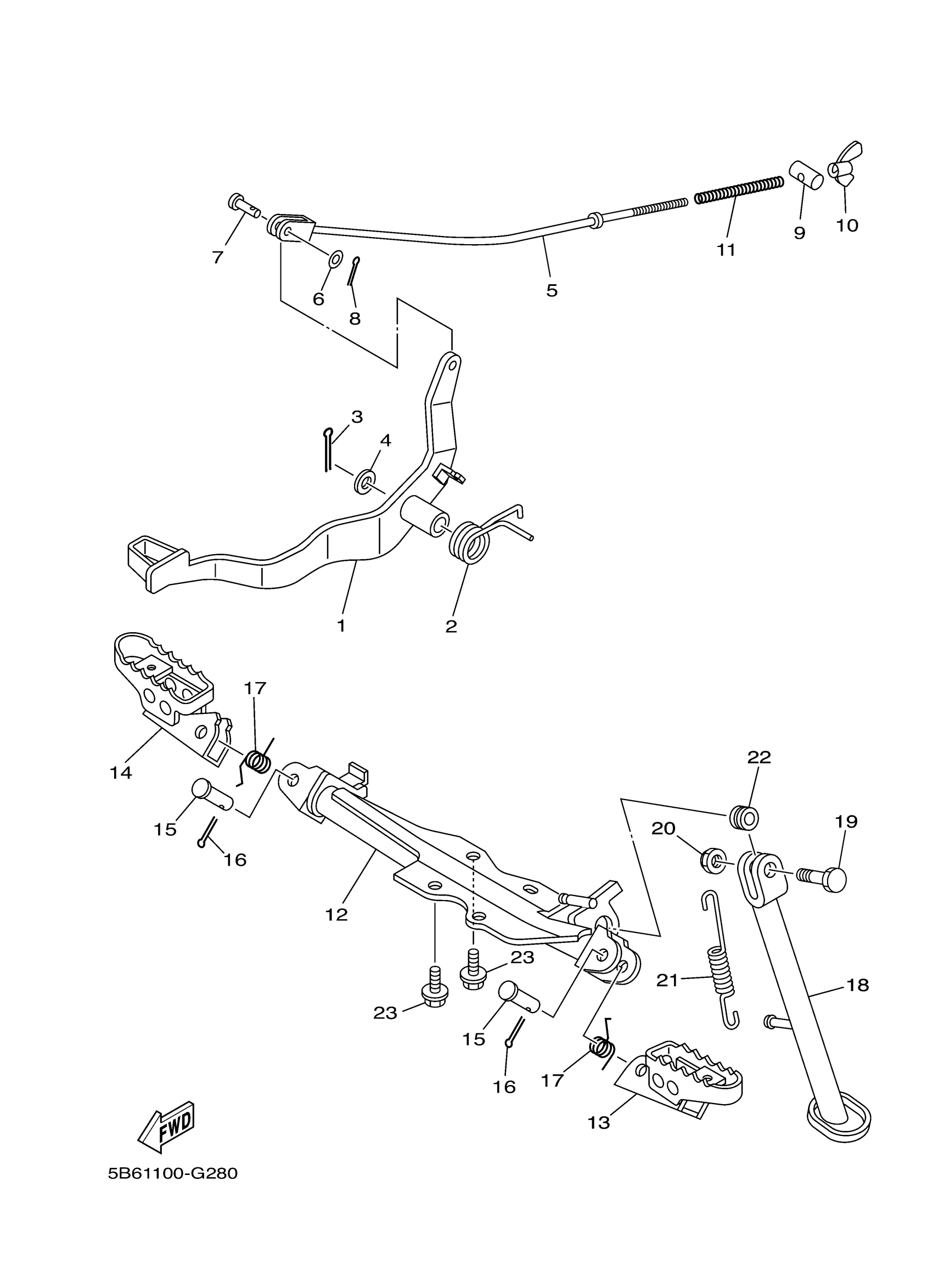

Yamaha TTR110ETC (TTR110E) BMAU 2026 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

5B6-27211-00-00

$72.99

2

SPRING, TORSION

90508-40016-00

$16.99

3

PIN, COTTER

91490-20025-00

$1.99

4

WASHER(6TA)

92907-12600-00

$1.71

5

ROD, BRAKE

5B6-27231-01-00

Unavailable

6

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

7

PIN, CLEVIS (3X3)

90240-06076-00

$8.49

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

PIN 1562723700

90249-12008-00

$8.49

10

NUT, WING (1K5)

90175-06013-00

$4.88

11

SPRING, (180-27236-00)

90501-10245-00

$8.49

12

FOOTREST 1

5B6-27411-00-00

$204.99

13

FOOTREST 1

3LD-27411-20-00

$48.99

14

FOOTREST 2

3LD-27421-20-00

$59.99

15

PIN, CLEVIS

90240-10002-00

$5.60

16

PIN, COTTER

91490-25020-00

Unavailable

17

SPRING, TORSION

90508-20007-00

Unavailable

18

STAND, SIDE

5B6-27311-01-00

Unavailable

19

BOLT, HEXAGON M10

90101-10003-00

Unavailable

20

NUT, U

90185-10037-00

Unavailable

21

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

22

COLLAR

90387-10003-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
