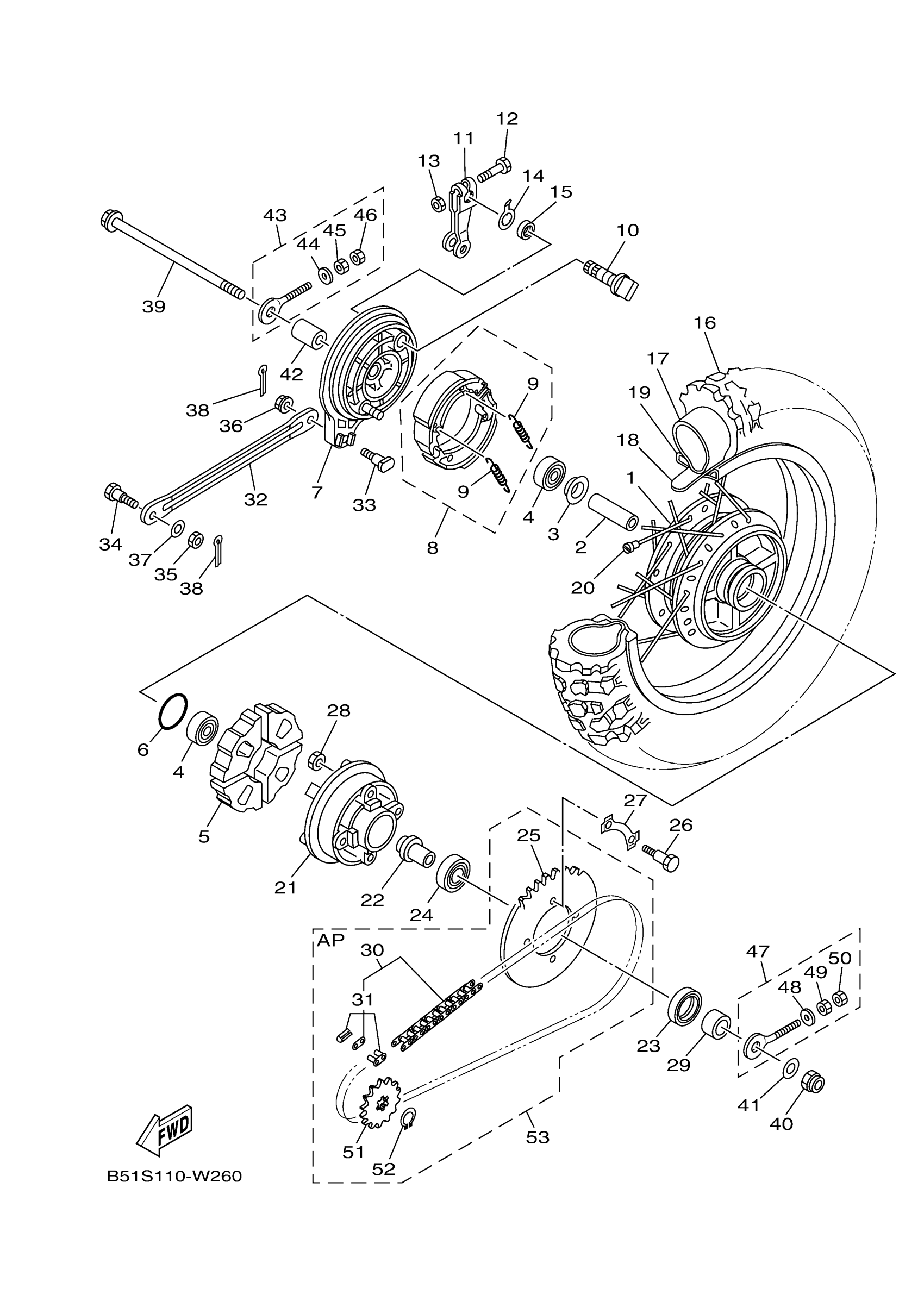

Yamaha TTR110ETC (TTR110E) BMAU 2026 REAR WHEEL Diagram
#
7
PLATE, BRAKE SHOE
5B6-25321-00-35
Unavailable
16
TIRE
94130-121A7-00
Unavailable
17
TUBE (17J)
94230-12208-00
Unavailable
18
BAND, RIM (3R0)
94330-12100-00
Unavailable
19
RIM (1.60-12)
94416-12002-00
Unavailable
20
SPOKE SET, REAR
21W-25304-00-00
Unavailable
21
CLUTCH, HUB
296-25366-01-35
Unavailable
22
AXLE, SPROCKET
21W-25387-00-00
Unavailable
23
OIL SEAL (30X42X8-102)
93106-30004-00
Unavailable
24
BEARING(8AB)
93306-00444-00
Unavailable
25
SPROCKET, DRIVEN (35T)
5A7-25435-01-00
Unavailable
26
BOLT(1AJ)
90101-08672-00
Unavailable
27
WASHER
4AW-25412-00-00
Unavailable
28
NUT(3KX)
90179-08639-00
Unavailable
29
COLLAR (21W)
90387-207G3-00
Unavailable
30
CHAIN, DRIVE
9Y580-52089-00
Unavailable
31
JOINT, CHAIN (29A)
94680-52001-00
Unavailable
32
BAR, TENSION
4BC-25371-00-00
Unavailable
33
BOLT 1022537300
90109-08183-00
Unavailable
34
BOLT (183-25378-00)
90109-08368-00
Unavailable
35
NUT, HEXAGON SMALL
95317-08700-00
Unavailable
36
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
37
.. WASHER, PLATE
92990-08600-00
Unavailable
38
PIN, COTTER (648)
91490-20015-00
Unavailable
39
AXLE, WHEEL
5HN-25381-00-00
Unavailable
40
NUT, SELF-LOCKING
90185-12007-00
Unavailable
41
WASHER, PLATE
90201-12045-00
Unavailable
42
COLLAR 102253830000
90387-12412-00
Unavailable
43
PULLER, CHAIN
3AC-2538G-10-00
Unavailable
44
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
45
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
47
PULLER, CHAIN
4GL-2538G-10-00
Unavailable
48
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
49
NUT, HEXAGON (371 447)
90170-06184-00
Unavailable
51
SPROCKET, DRIVE (5B61)
93812-14814-00
Unavailable
52
CIRCLIP (525)
93410-20038-00
Unavailable
53
CHAIN & SPROCKET KIT
B51-W001A-00-00
Unavailable
