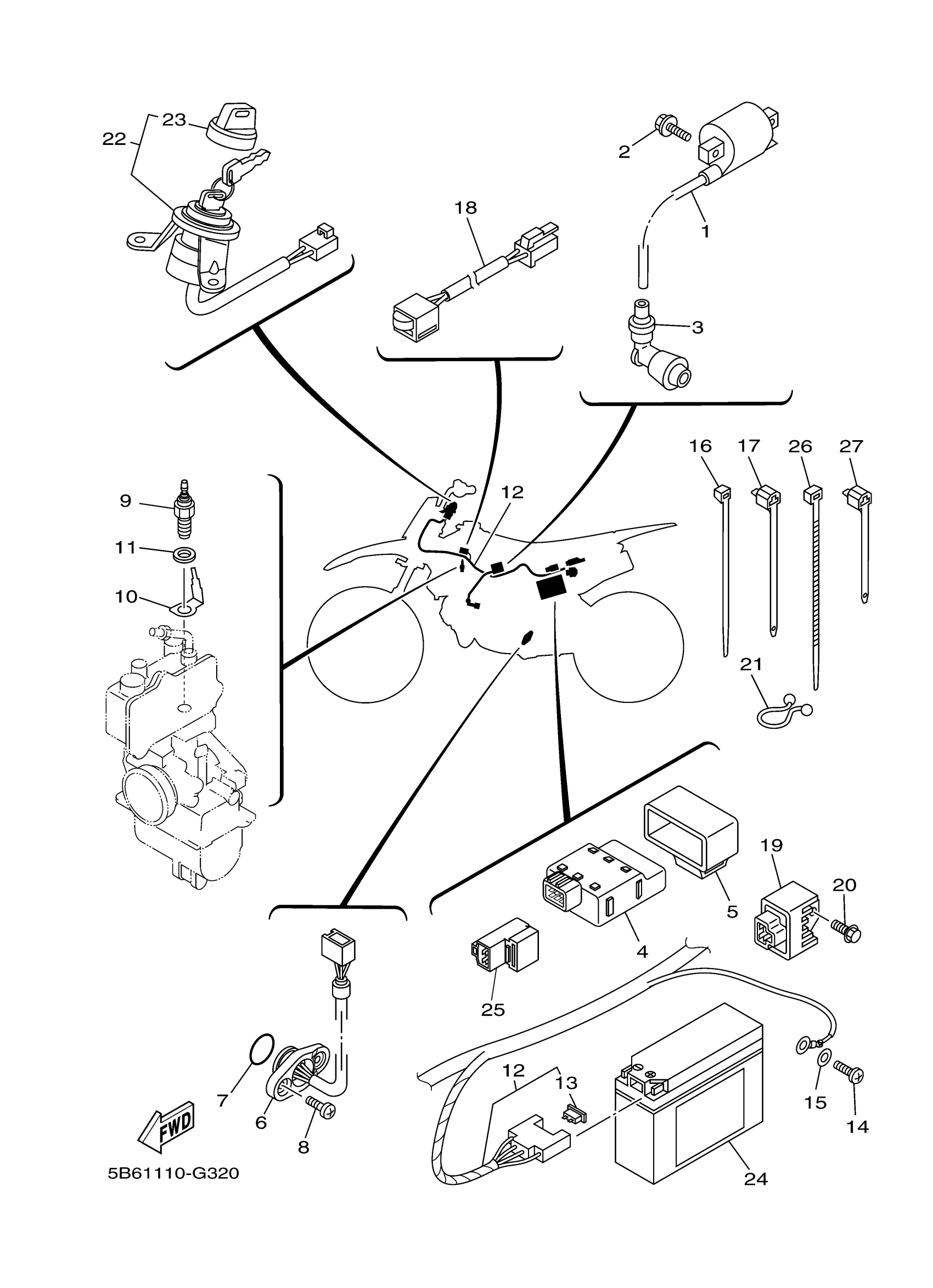

Yamaha TTR110ETC (TTR110E) BMAU 2026 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4KJ-82310-14-00

Unavailable

2

BOLT, FLANGE

95022-06016-00

$3.62

3

PLUG CAP ASSY

4BP-82370-01-00

$35.99

4

C.D.I. UNIT ASSY

5B6-85540-02-00

Unavailable

5

BAND

3MB-85546-00-00

Unavailable

6

NEUTRAL SWITCH ASSY

3S0-H2540-00-00

$16.49

7

O-RING (25G)

93210-20573-00

$8.49

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

HEATER ASSY

5FU-83790-20-00

$49.99

10

TERMINAL 1

5FU-82103-00-00

$7.99

11

WASHER, PLATE

90201-08016-00

$8.49

12

WIRE HARNESS ASSY

5B6-82590-01-00

$195.99

13

FUSE (10A)

42X-82151-00-00

$4.32

14

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

BAND

1UA-82591-00-00

Unavailable

17

BAND, SWITCH CORD

437-83936-11-00

Unavailable

18

THERMO SWITCH ASSY

B51-82560-00-00

Unavailable

19

RECTIFIER & REGULATOR ASSY

3LA-81960-01-00

Unavailable

20

BOLT, FLANGE

95022-06012-00

Unavailable

21

CLAMP (3Y2)

90464-16039-00

Unavailable

22

MAIN SWITCH ASSY

5B6-82510-01-00

Unavailable

23

CAP, KEY

3HN-82579-00-00

Unavailable

24

BATTERY ASSY (GS YUASA GT4B-5)

4JS-82100-11-00

Unavailable

25

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

26

BAND

1UA-82591-00-00

Unavailable

27

CLAMP(6E8)

90465-13M39-00

Unavailable
