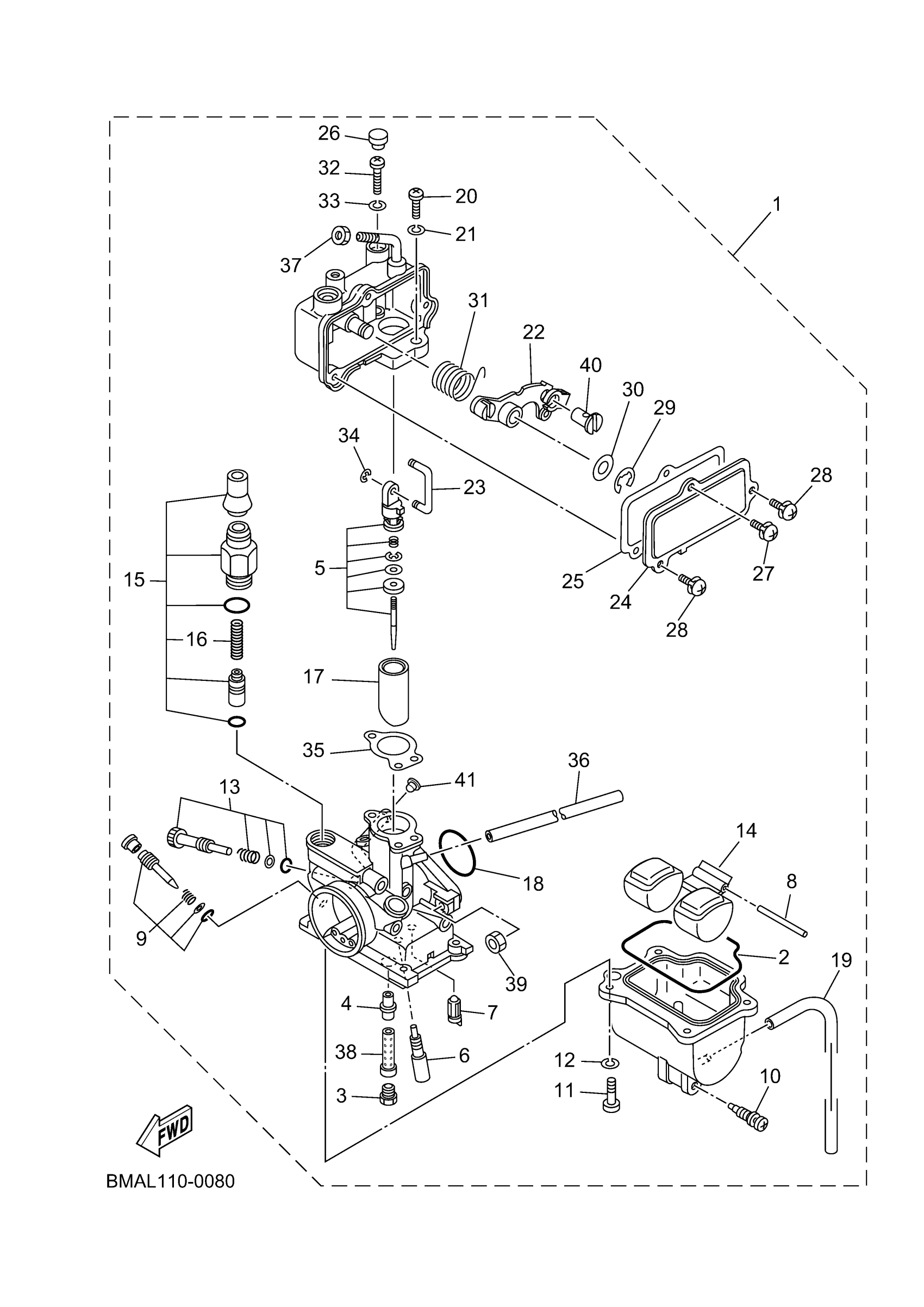

Yamaha TTR110ETC (TTR110E) BMAU 2026 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5B6-14101-10-00

Unavailable

2

SEAL

4GL-14239-00-00

$18.49

3

JET, MAIN #95

18A-14143-19-00

$7.99

4

NOZZLE, MAIN

5KA-14141-13-00

$35.99

5

NEEDLE SET

5B6-1490J-00-00

$33.99

6

JET, PILOT (# 12.5)

2MM-14142-12-00

$14.49

7

NEEDLE ASSY

5DW-14150-00-00

$51.99

8

PIN, FLOAT

353-14186-00-00

$7.99

9

AIR SCREW SET

5HN-14104-00-00

$18.49

10

PLUG, DRAIN

12R-14191-00-00

$16.49

11

SCREW, PAN HEAD(N15)

98507-04014-00

$1.86

12

WASHER(6TA)

92907-04100-00

$8.49

13

THROTTLE SCREW SET

5DV-14103-00-00

$31.99

14

FLOAT

5HN-14985-00-00

$64.99

15

STARTER SET

5HN-1410A-00-00

$60.99

16

SPRING, PLUNGER

5HN-14135-00-00

Unavailable

17

VALVE, THROTTLE 1

5B6-14112-25-00

Unavailable

18

O-RING

241-14147-00-00

Unavailable

19

PIPE 1

4GL-14348-00-00

Unavailable

20

SCREW, PAN HEAD

98517-04012-00

Unavailable

21

WASHER(6TA)

92907-04100-00

$8.49

22

BRACKET 2

4GL-14292-10-00

Unavailable

23

ROD

4GL-14577-10-00

Unavailable

24

COVER 1

4GL-14293-00-00

Unavailable

25

GASKET

4GL-14536-10-00

Unavailable

26

SCREW, PLUG

3F7-14991-00-00

Unavailable

27

SCREW, PAN HEAD WITH WASHER

97602-04110-00

Unavailable

28

. SCREW, WITH WASHER

97607-04110-00

Unavailable

29

CLIP

812-14137-00-00

Unavailable

30

WASHER (3H1)

1A8-14953-00-00

Unavailable

31

SPRING

4GL-14275-01-00

Unavailable

32

SCREW, PAN HEAD

98517-04016-00

Unavailable

33

WASHER(6TA)

92907-04100-00

$8.49

34

CLIP

256-14919-00-00

Unavailable

35

GASKET

1V3-14126-00-00

Unavailable

36

PIPE

5YT-14193-00-00

Unavailable

37

NUT, CABLE ADJUSTING

522-14161-00-00

Unavailable

38

PIPE

5HN-14148-00-00

Unavailable

39

NUT

5DV-14594-10-00

Unavailable

40

GUIDE, CABLE

4GL-14155-10-00

Unavailable

41

NET, FILTER

5LW-14994-00-00

Unavailable
