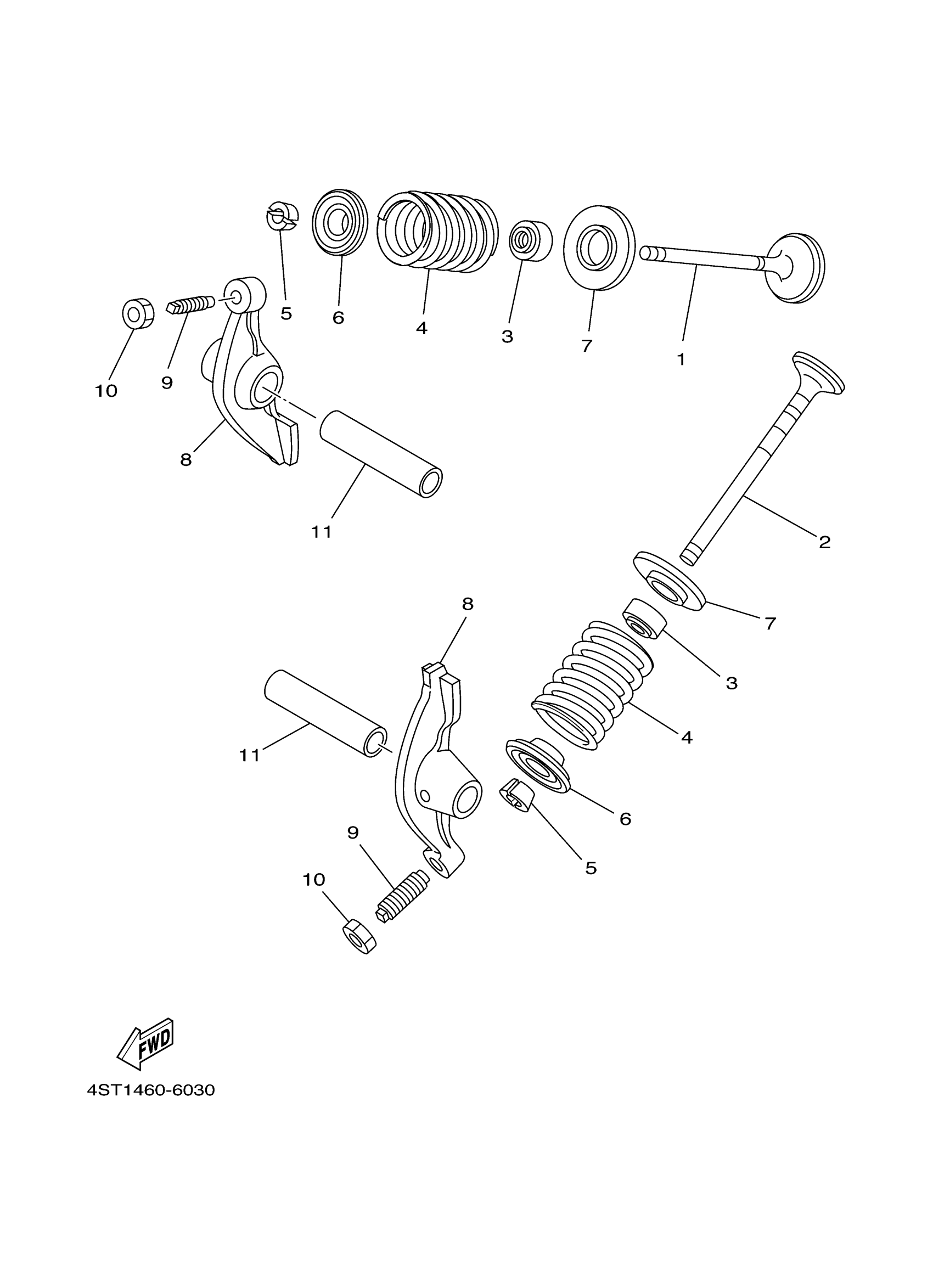

Yamaha TTR110ESC (TTR110E CA) BMAM 2025 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

4S9-E2111-00-00

$13.43

2

VALVE, EXHAUST

4S9-E2121-00-00

$21.88

3

SEAL, VALVE STEM

4SV-12119-00-00

$18.53

4

SPRING, VALVE OUTER

5TN-E2114-00-00

$18.57

5

COTTER, VALVE

1WG-12118-00-00

$5.50

6

RETAINER, VALVE SPRING

5TN-12117-00-00

$8.75

7

SEAT, VALVE SPRING 2

4S9-E2126-00-00

$5.78

8

ARM, VALVE ROCKER

2P2-E2151-01-00

$31.29

9

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.78

10

NUT

90170-05803-00

$1.85

11

SHAFT, ROCKER 2

22F-12156-00-00

$17.82
