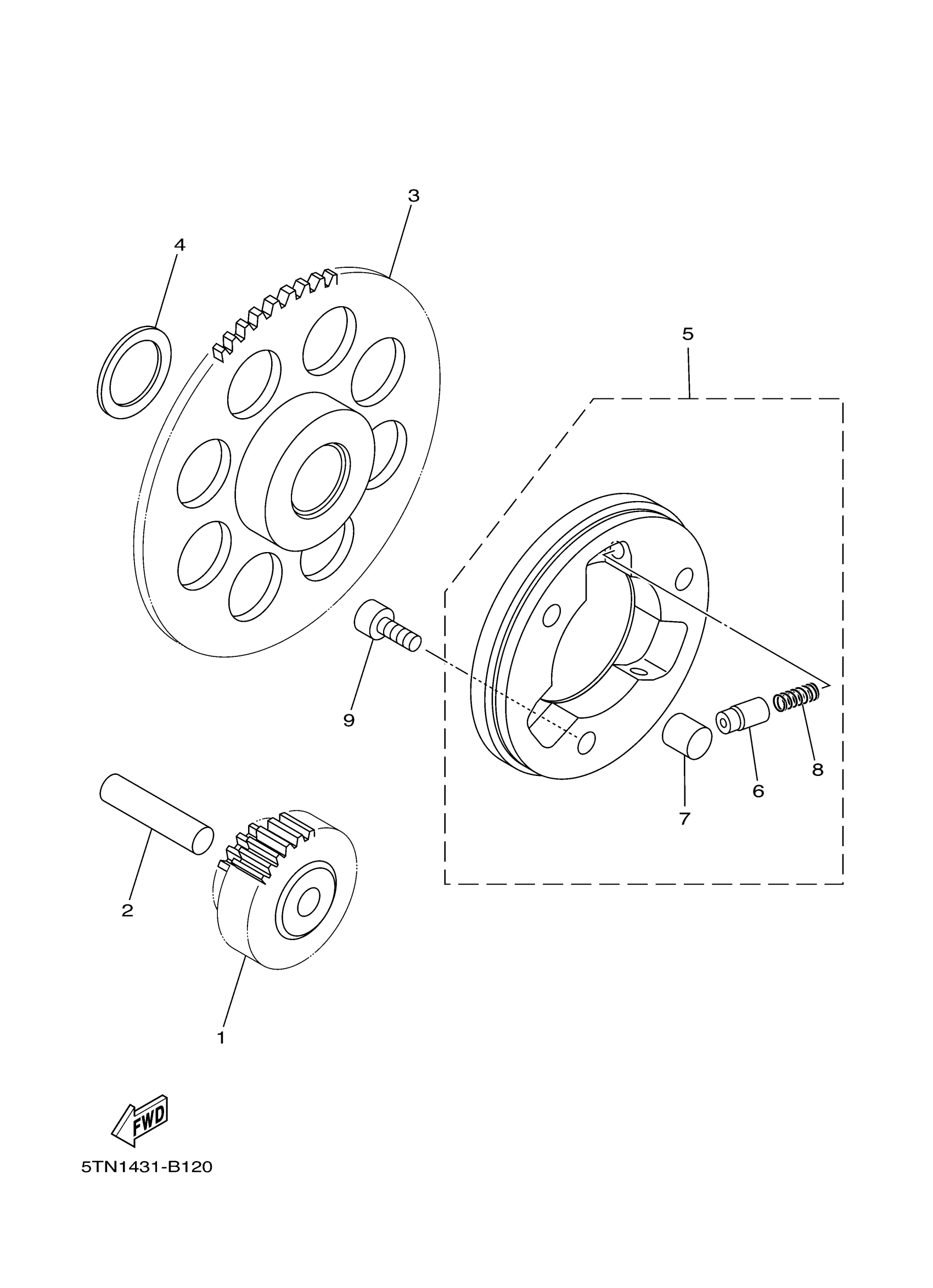

Yamaha TTR110ESC (TTR110E CA) BMAM 2025 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5TN-E5512-00-00

Unavailable

2

PIN, DOWEL (4H7)

93608-43157-00

$3.79

3

WHEEL, STARTER

5TP-E5524-01-00

$140.84

4

SHIM

296-15644-00-00

$5.27

5

STARTER CLUTCH OUTER ASSY

B7E-E5580-00-00

$165.54

6

CAP, STARTER CLUTC

2PH-E5583-10-00

Unavailable

7

PIN, DOWEL

93610-10800-00

$3.63

8

. SPRING, RETURN

B7E-E5572-00-00

$1.85

9

BOLT,SOCKET

91317-06012-00

$5.75
