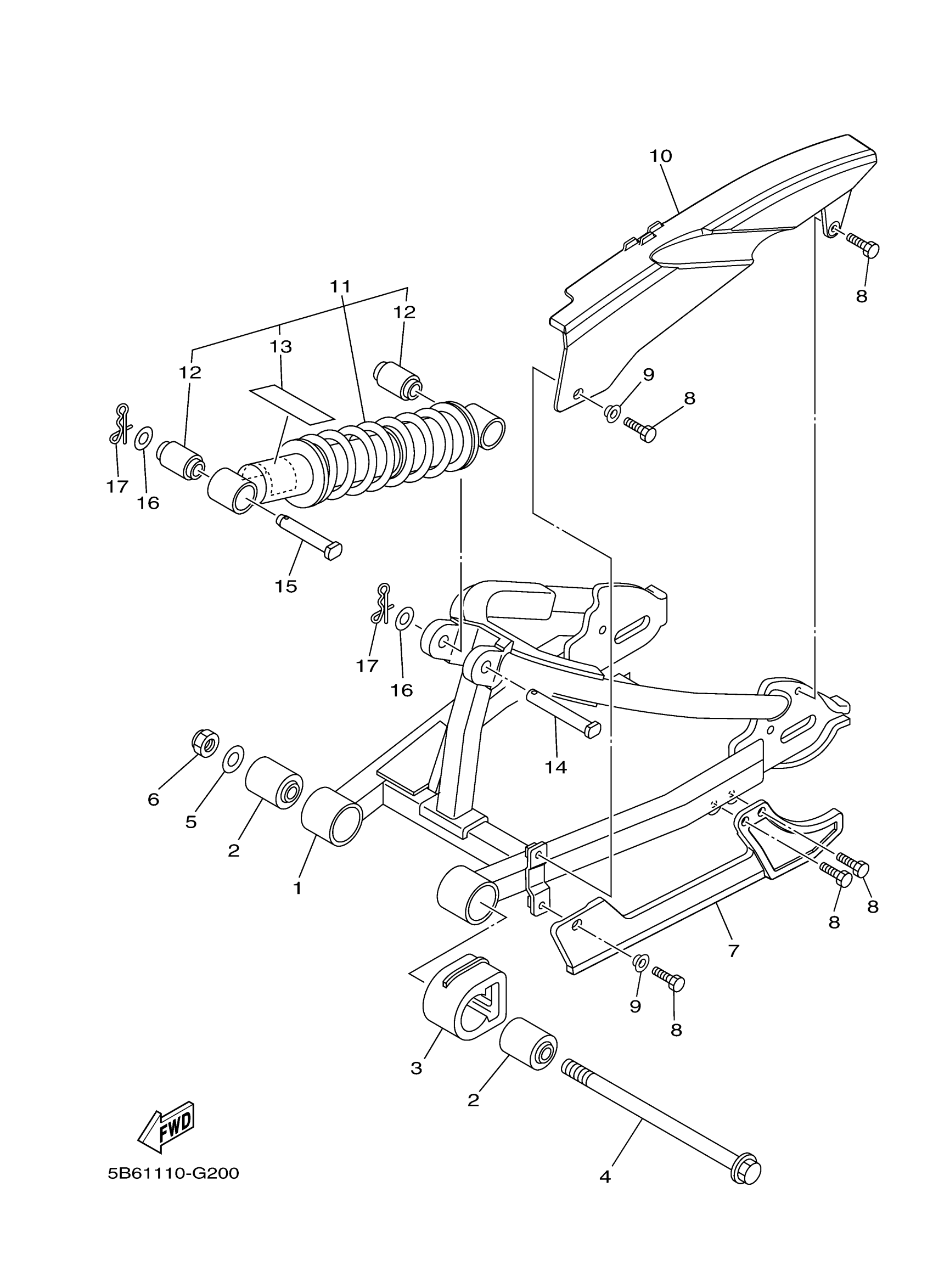

Yamaha TTR110ESC (TTR110E CA) BMAM 2025 REAR ARM & SUSPENSION Diagram

Description

Price

REAR ARM COMP.

5B6-22110-00-00

$468.17

BUSH 1

5B6-22123-00-00

$34.65

SEAL, GUARD

5B6-22151-00-00

$9.45

BOLT, FLANGE

90105-12026-00

$13.91

WASHER, PLATE(55K)

90201-127J6-00

$5.43

NUT, U (4PM)

95617-12100-00

$3.54

SUPPORT, CHAIN

5B6-22199-01-00

Unavailable

BOLT(4ML)

97027-05014-00

$1.48

COLLAR

90387-05021-00

$5.84

CASE CHAIN

5B6-22311-01-00

Unavailable

SHOCK ABSORBER ASSY, REAR

B51-22210-00-00

Unavailable

BUSHING

3M7-22216-00-00

$19.18

LABEL, WARNING

4AA-22259-80-00

$11.85

PIN, CLEVIS (3R0)

90240-10072-00

$8.26

PIN, CLEVIS (3R0)

90240-10069-00

$8.26

WASHER, PLATE(56J)

90201-106H5-00

Unavailable

CLIP

90468-20196-00

$0.50
